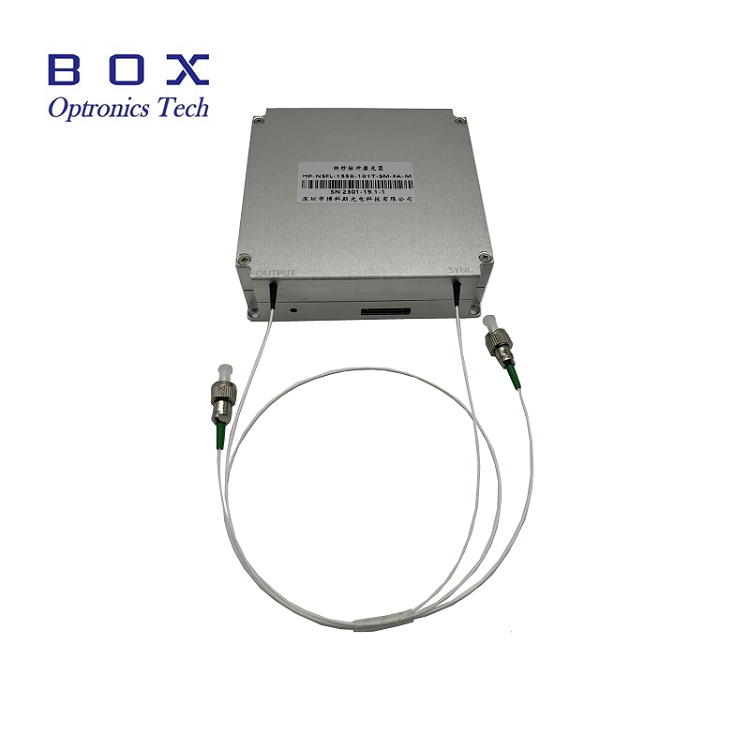

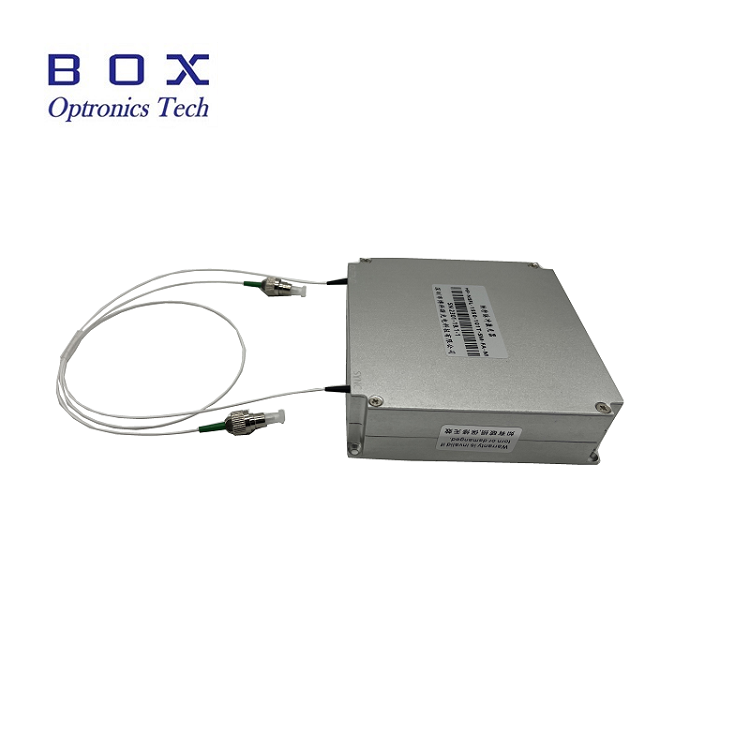

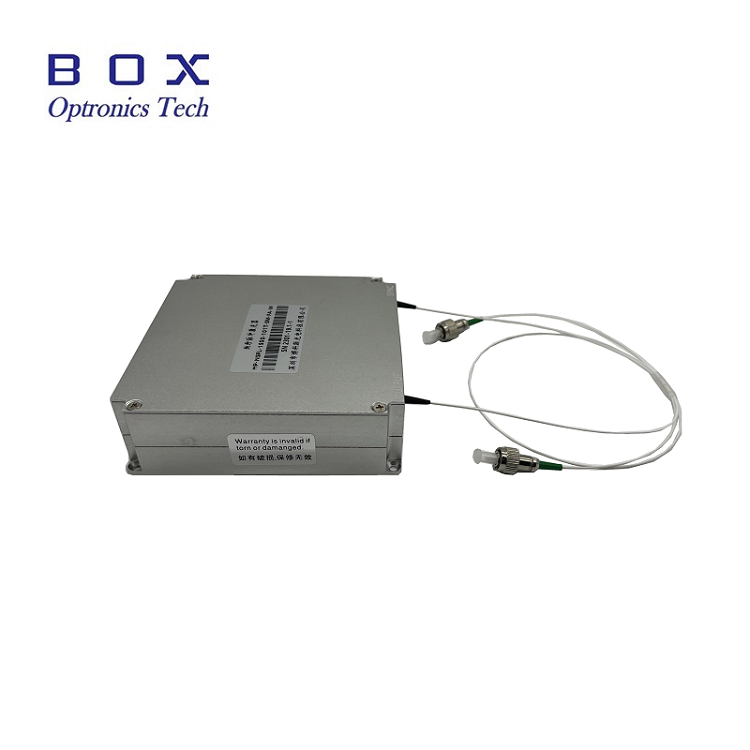

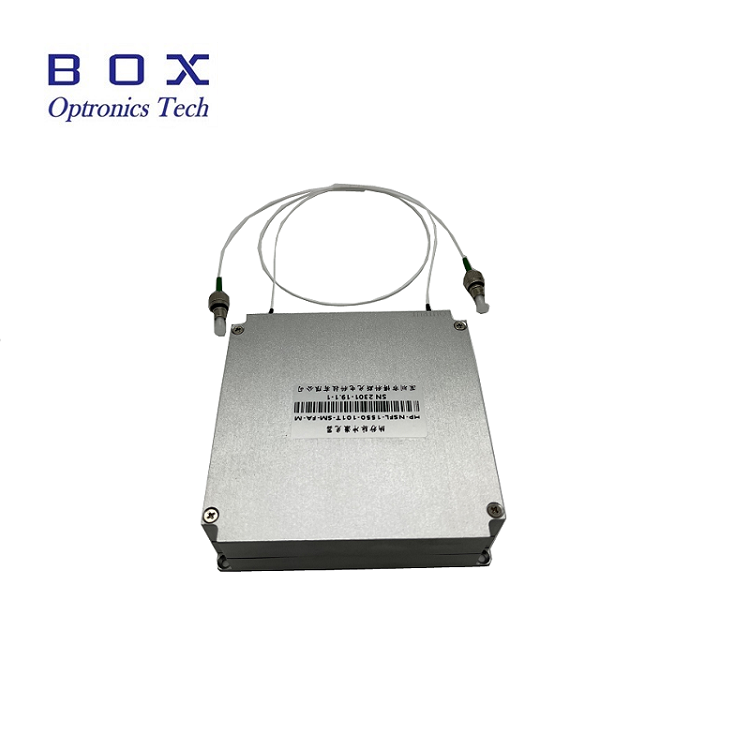

The 1550nm High Power Nanosecond Pulsed Fiber Laser uses a high-power gain fiber module and cooperates with a dedicated drive and temperature control circuit to output high-peak and high-energy laser pulses. The laser wavelength and power are stable, and the modular design is convenient for system integration. It can be used in laser radar, distributed optical fiber sensing systems, etc.
The 1550nm High Power Nanosecond Pulsed Fiber Laser uses a high-power gain fiber module and cooperates with a dedicated drive and temperature control circuit to output high-peak and high-energy laser pulses. The laser wavelength and power are stable, and the modular design is convenient for system integration. It can be used in laser radar, distributed optical fiber sensing systems, etc.
high pulse energy;
Pulse width, repetition frequency and power adjustable;
Benchtop or module package.
LiDAR;
Car radar;
Fiber Optic Distributed Sensing.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1550±1 | |
| Single pulse energy | μJ | 100 | @≤10kHz |
| Output peak power | kW | 1～10 Adjustable | Customizable |
| Average laser power | W | 2 | @≥100kHz |
| Pulse width | ns | 1～250 | Adjustable |
| Repetitive frequency | KHz | 1～3000 | Adjustable |
| Beam quality M2 | - | ≤1.1 | As output collimator |
| Output isolation | dB | ≥30 | - |
|
Power instability (Short-term 15mins) |
dB | ≤±0.02 | |
|
Power instability (Long-term 10hours) |
dB | ≤±0.05 | |
| Output laser polarization state | - | Random | - |
| Trigger mode | - | Internal trigger | - |
| Fiber type | - | SM fiber, FC/APC | |
| Dimensions | mm | 260(W)×320(D)×120(H) | Benchtop |
| 100(W)×100(D)×30(H) | Module | ||
| Power supply | V | 100~240V AC, <30W | Benchtop |
| 12VDC/2A, <30W | Module | ||
| Communication Interface | - | DB9 Female(RS232) | Benchtop |
| XH1.27-11pin | Module | ||
| trigger method | - | Trigger within TTL | - |
| Operating temperature | ℃ | -5 ~ +55 | |
| Storage temperature | ℃ | -20 ~ +75 |
Pulse width test and pulse energy test @10KHz, 3ns
Spectrum test @10KHz, 3ns, 100μJ
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have the module type and benchtop for choice.
