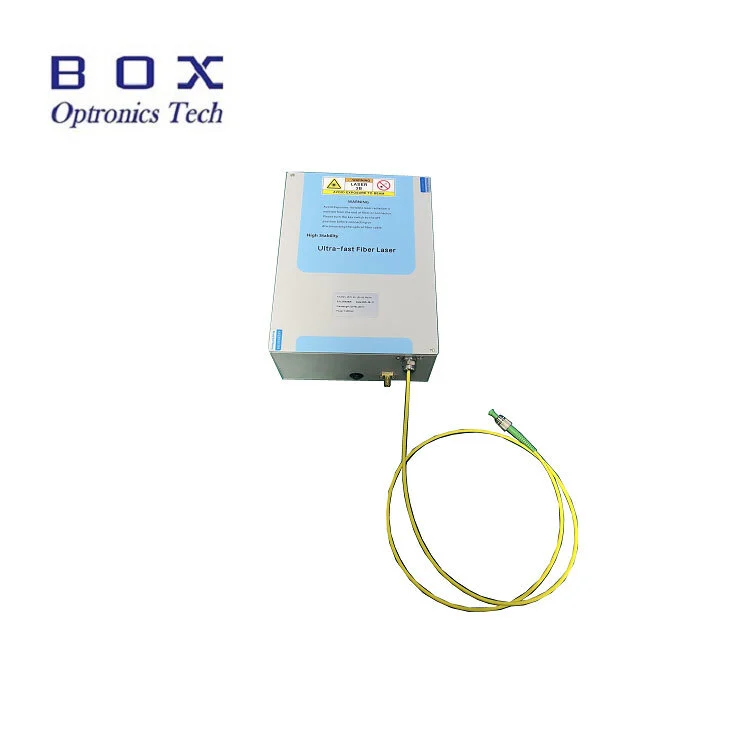

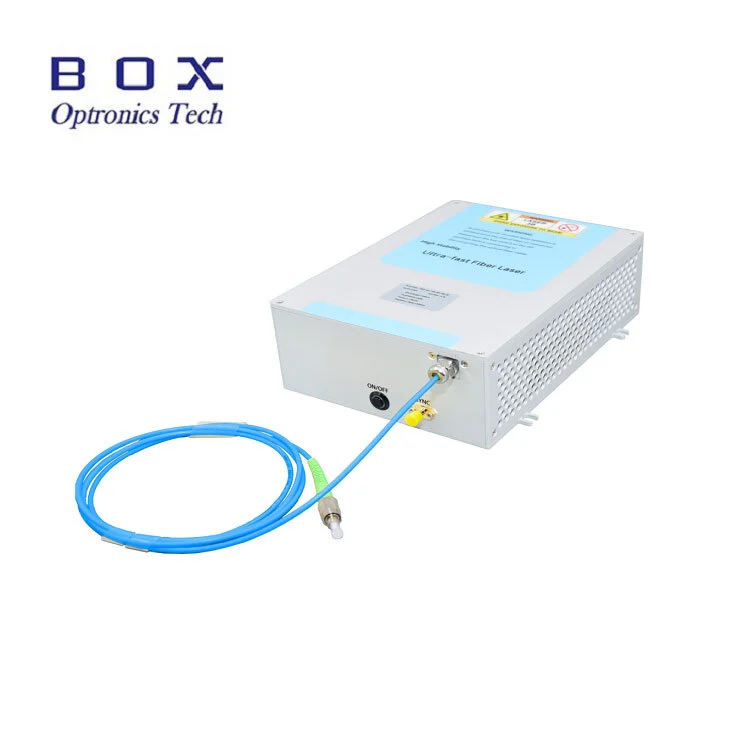

The 1560nm picosecond fiber laser uses high-performance rare earth optical fiber as the working medium, combined with high-precision dispersion compensation technology and active servo system to achieve stable output of 1560nm band picosecond pulse laser. It can start automatically with one button, work stably for a long time and is maintenance-free. It has the characteristics of extremely narrow laser pulse and high pulse peak power. It has wide applications in optical frequency comb, supercontinuum, terahertz THz and other fields.
* Customization of parameters such as pulse width, power, repetition frequency, etc. is accepted.
● Pulse width 1~100ps;
● Wavelength: 1530~1560nm;
● Self-starting and maintenance-free;
● Optical frequency comb;
● Supercontinuum;
● Terahertz waves;
● Ultrafast laser phenomena.
| Parameters | Unit | Typical | Notes |
| Operating wavelength | nm | 1530~1560 | |
| Spectral width | nm | 0.5~50 | |
| Output average power | mW | 1~120 | |
| Power instability | - | < ±1% | |
| Pulse width | ps | 1/10/50/100 | |
| Repetitive frequency | MHz | 10~1000 | |
| Repetition frequency instability | Hz | < 100 | |
| Single pulse energy | nJ | 0.1~1 | |
| Polarization state | - | Linear polarization | |
| Fiber type | - | PM1550 | |
| Connector | - | FC/APC | Customizable |

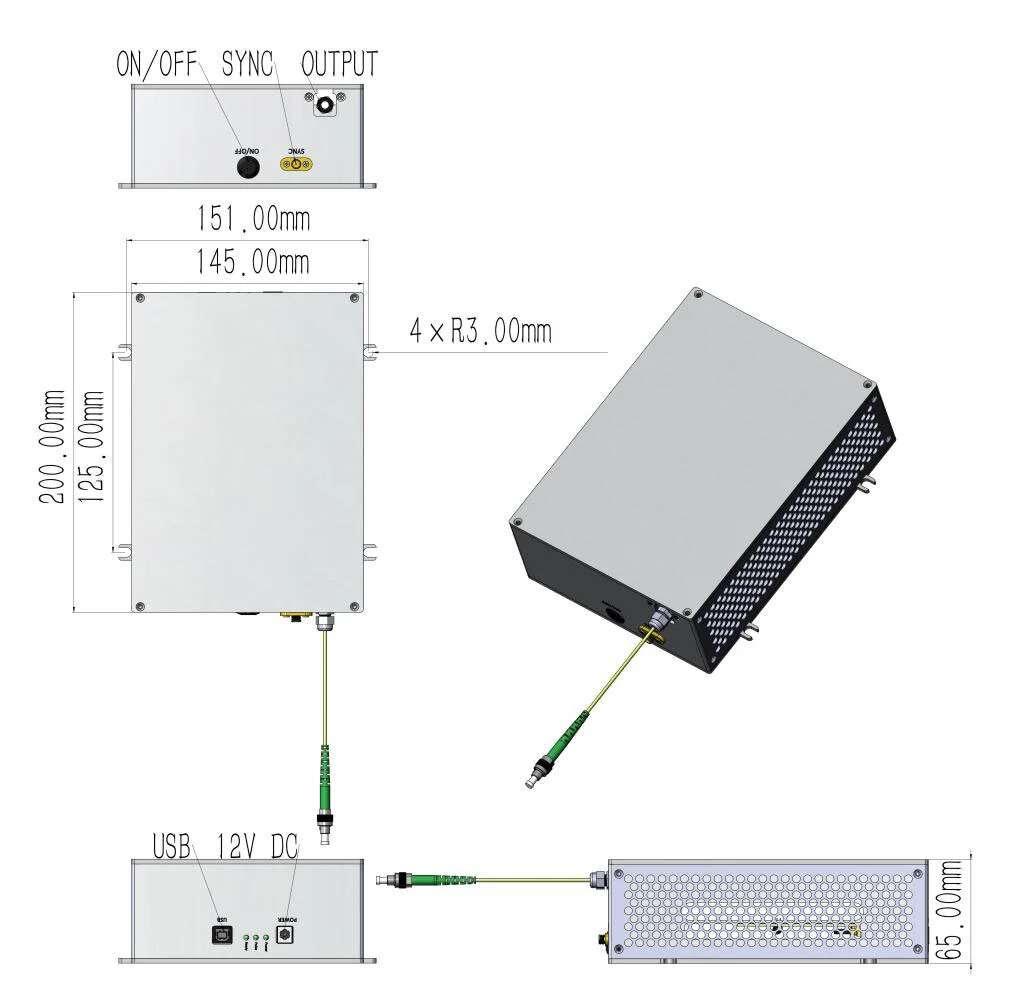

| Dimensions | mm | 255(W)×322(D)×115(H) | Benchtop |
| 200(W)×145(D)×65(H) | Module | ||
| Power supply | V | 100~240V AC, <30W | Benchtop |
| 5V DC, <20W | Module | ||
| Control method | - | Touchscreen | Benchtop |
| Button | Module | ||
| Synchronous electrical signal interface | - | SMA | |
| Operating temperature & Humidity | - | 5~+35°C & 0~70% |
Pulse repetition frequency stability

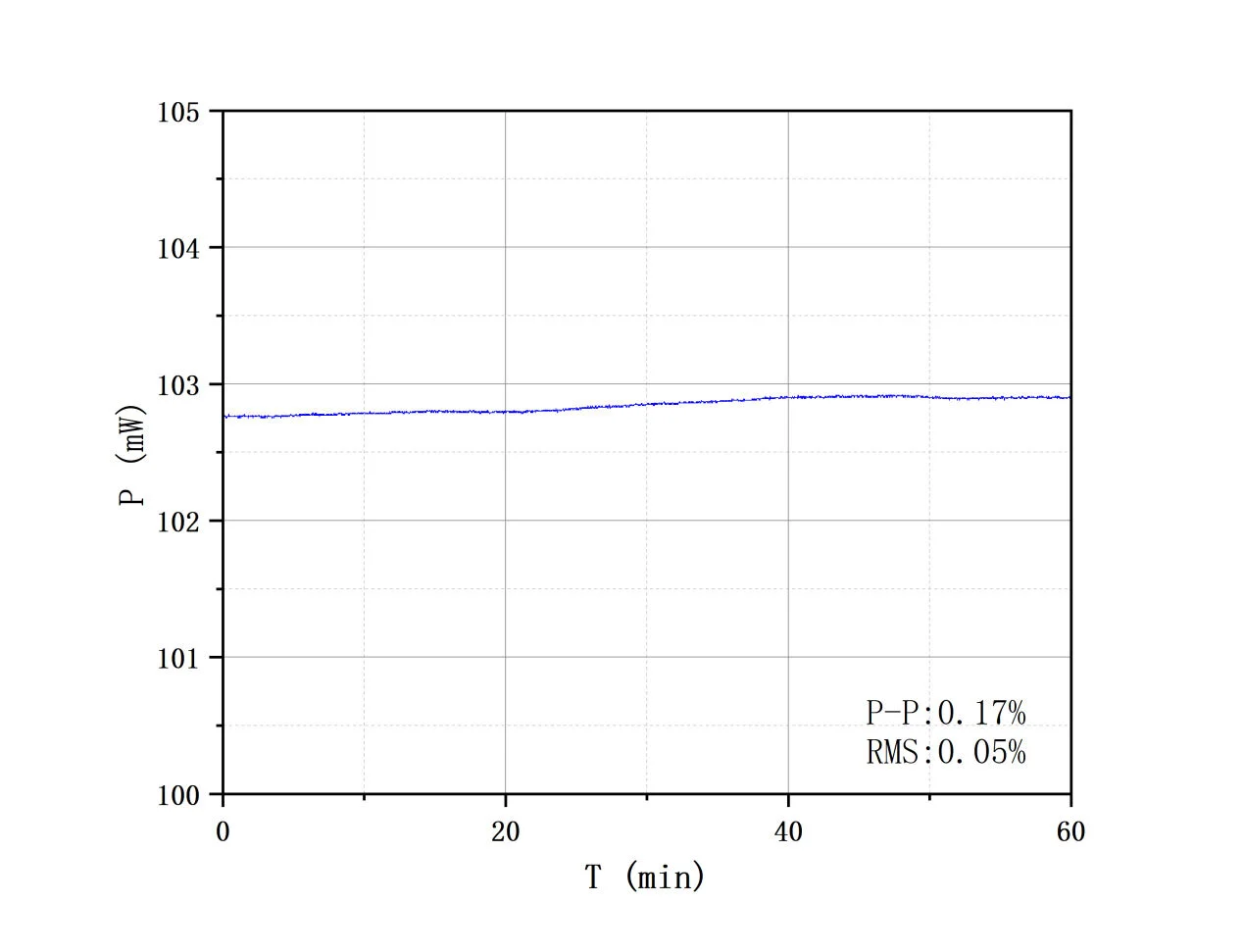

Power stability

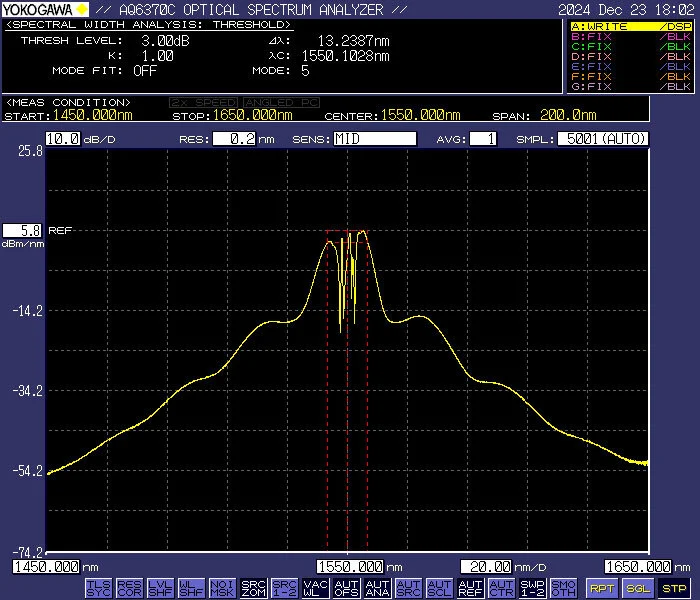

Spectrum

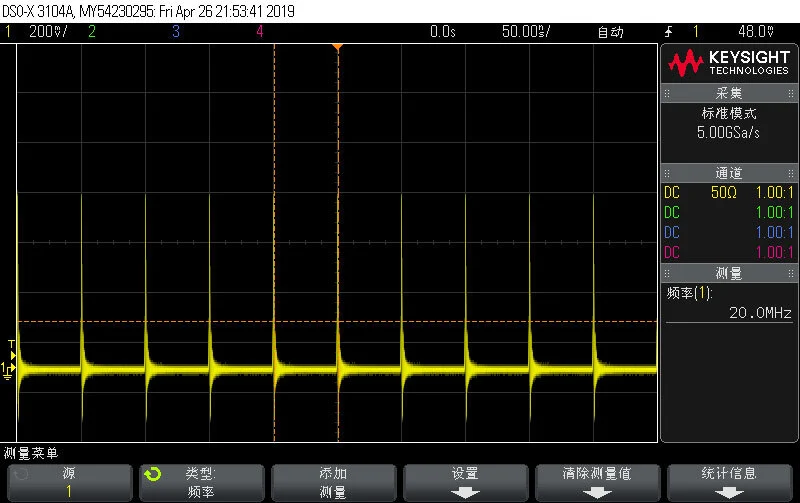

Pulse sequence (20MHz pulse frequency)

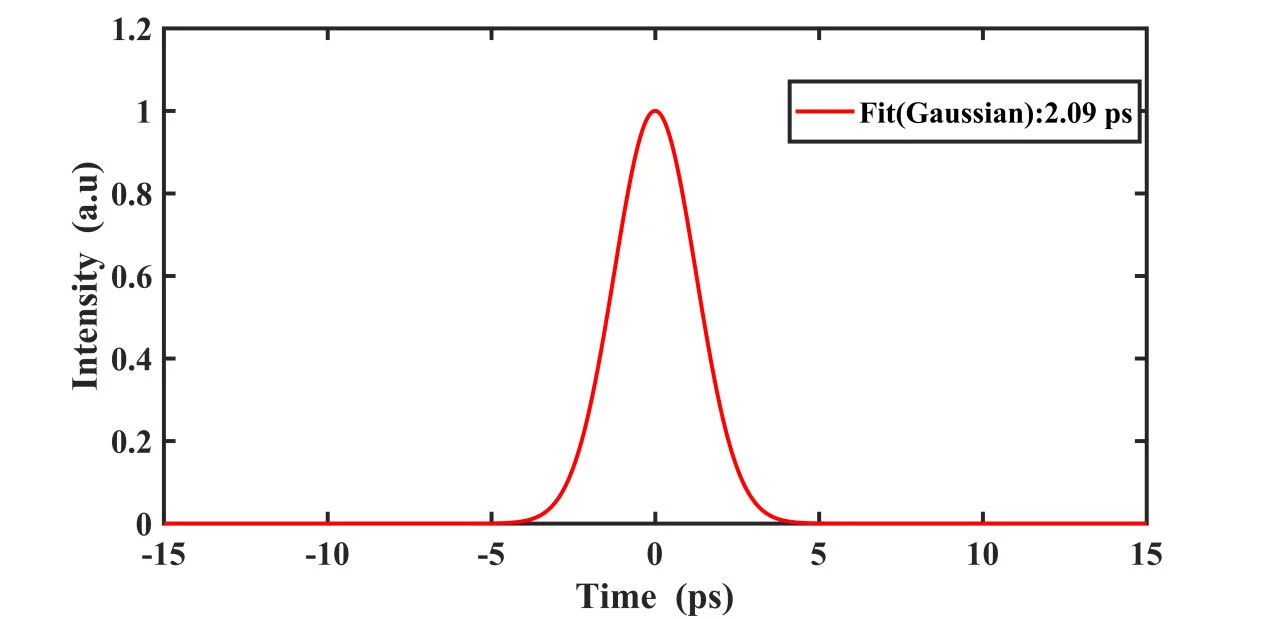

Pulse AC Curve
| PSPL | Wavelength | Pulse width |
Average power |
Repetitive frequency |
Fiber type | Package |
| PSPL | -XXXX | -XX | -XXX | -XX | -XX | -X |
|
1550:1550nm 1560:1560nm |
1: 1ps; 10:10ps; 50: 50ps; 100:100ps |
10:10mW 50:50mW 100:100mW |
20: 20MHz; 80: 80MHz; 100:100Mhz |
PM:PM1550 |
M: Module B:Benchtop |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 1550nm or 1560nm laser diode.
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
