1064nm Ytterbium-doped Fiber Amplifier YDFA

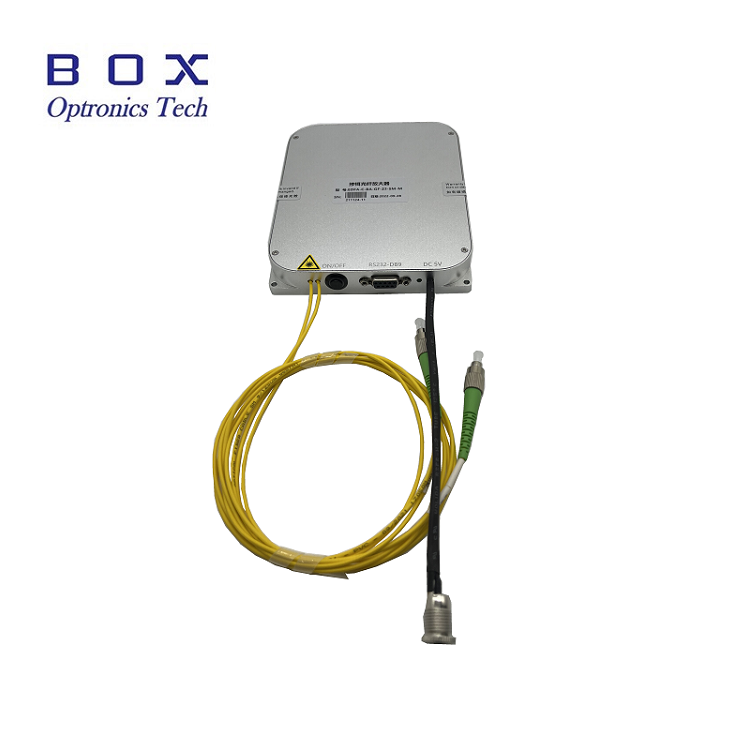

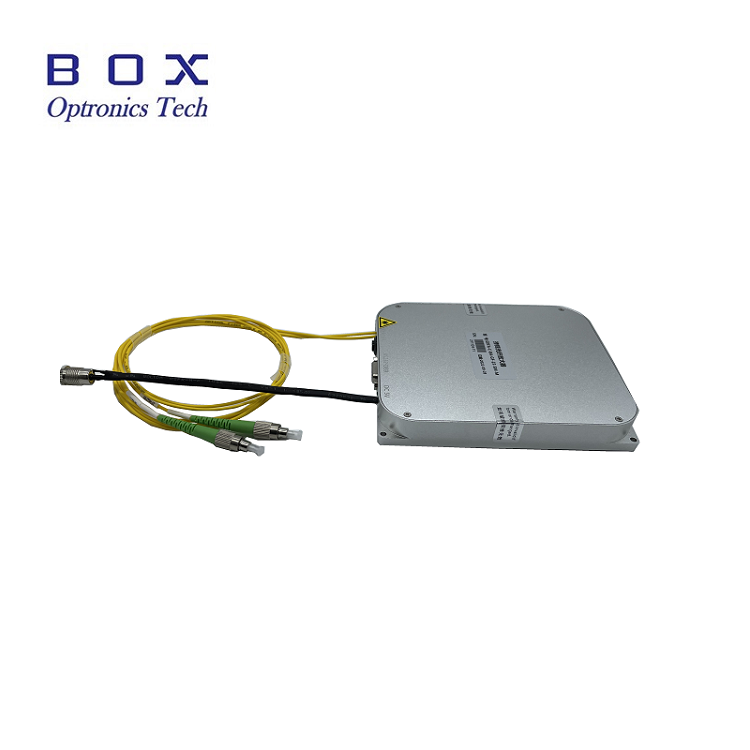

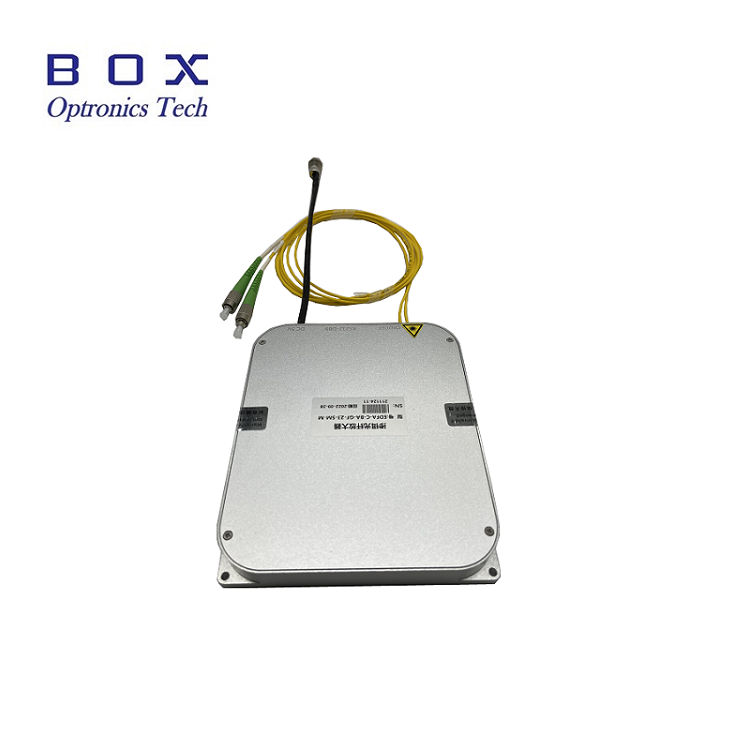

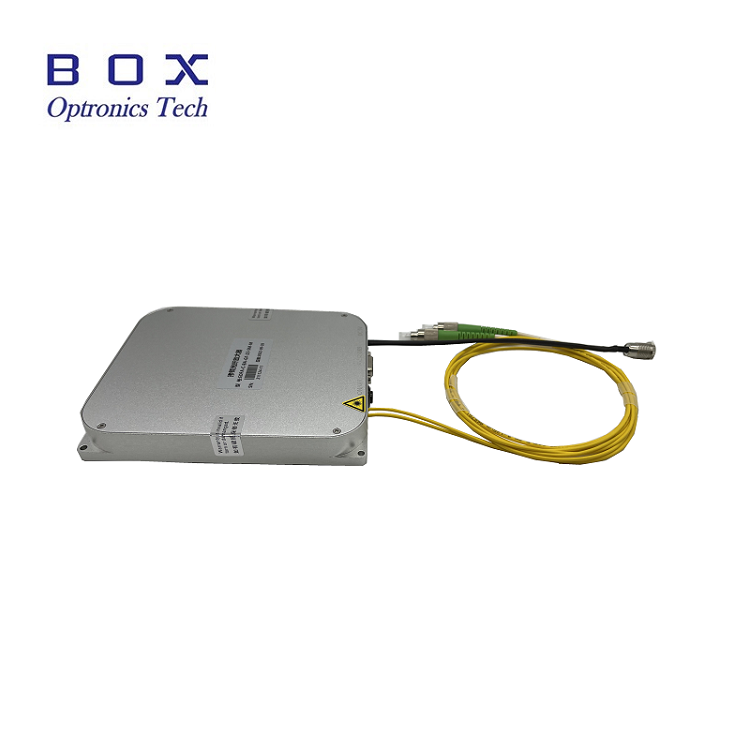

1064nm Ytterbium-doped fiber amplifier YDFA generates gain by pumping ytterbium-doped fiber with semiconductor laser, which is used for laser signal in the 1030nm~1100nm band, Hi1060 single-mode fiber or PM980 polarization-maintaining fiber output, the output power is continuously adjustable, with high gain and With the advantage of low noise, the desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A smaller modular YDFA can also be provided, which is convenient for user system integration.

Send Inquiry

Product Description

1. Introduction of 1064nm Ytterbium-doped Fiber Amplifier YDFA

The 1064nm Ytterbium-doped fiber amplifier YDFA generates gain by pumping ytterbium-doped fiber with semiconductor laser, which is used for laser signal in the 1030nm~1100nm band, Hi1060 single-mode fiber or PM980 polarization-maintaining fiber output, the output power is continuously adjustable, with high gain and With the advantage of low noise, the desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A smaller modular YDFA can also be provided, which is convenient for user system integration.

2. Feature of 1064nm Ytterbium-doped Fiber Amplifier YDFA

Wide wavelength range;

High output power;

Low noise.

3. Application of 1064nm Ytterbium-doped Fiber Amplifier YDFA

Optical fiber communication;

Optical fiber sensor;

Fiber laser.

4. Optical-Electrical Characteristic of 1064nm Ytterbium-doped Fiber Amplifier YDFA

Parameters Unit Values Notes
Operating wavelength nm 1030-1100
Input power dBm 0~10 customizable
Saturated output power dBm 17/20/23/25/26/27/30/33/37/40 @0dBm Input
Noise figure dB 5.0
Polarization dependent gain dB <0.3 Hi1060
Polarization extinction ratio dB 20 PM980
Input/Output isolation dB >35
Fiber type - Hi1060/PM980
Connector - FC/APC
Operating mode - ACC/APC(1)
Dimensions mm 260(W)×320(D)×120(H) Benchtop(17-27dBm)
260(W)×350(D)×120(H) Benchtop(30-40dBm)
125(W)×150(D)×30(H) Module(17-27dBm)
125(W)×150(D)×70(H) Module(30-40dBm)
Power supply V AC 110~240V, <30W@25℃ Benchtop
5VDC,  <15W Module
Control mode - RS232 Serial communication Module
Communication Interface - DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70

5. Deliver,Shipping And Serving of 1064nm Ytterbium-doped Fiber Amplifier YDFA

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band, L band, and C+L band wavelengths.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.

Q: About the package dimension, do you have any requirement?

A: We have two kind of options, module type and benchtop type.
