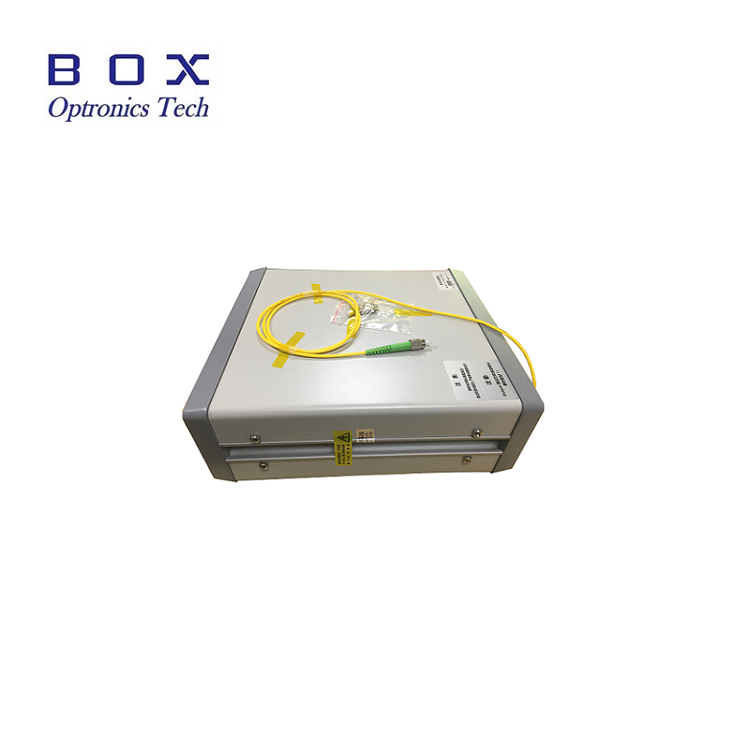

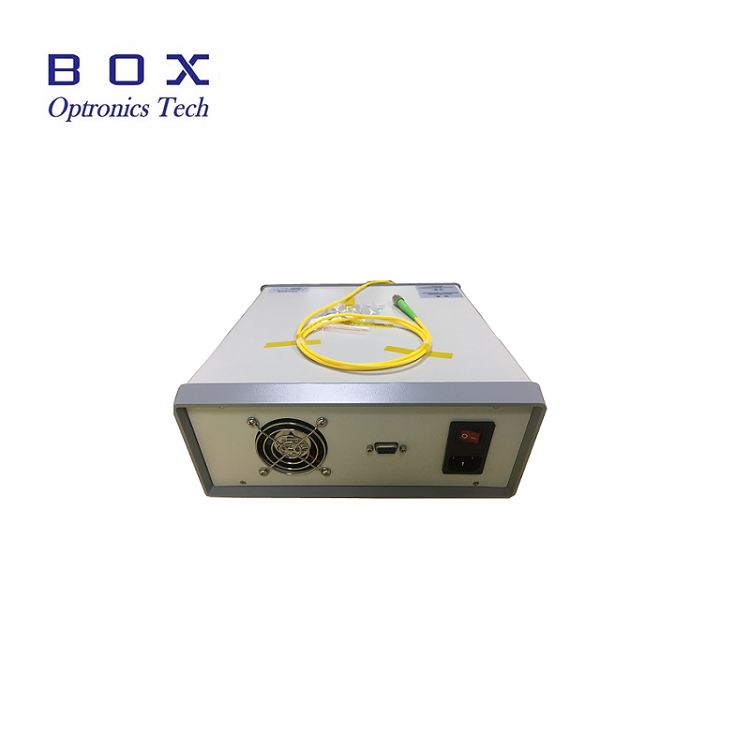

Benchtop Type Erbium-doped Fiber In-line Amplifier

Benchtop Type Erbium-doped Fiber In-line Amplifier combines the advantages of PA amplifier and BA amplifier which with high gain, high transmit power, and relatively low noise.

Send Inquiry

Product Description

1. Introduction of Benchtop Type Erbium-doped Fiber In-line Amplifier

The Line amplifier (LA) is an optical power amplifier product dedicated to line relay in fiber laser or fiber communication system. It combines the advantages of PA amplifier and BA amplifier. Which with high gain, high transmit power, and relatively low noise. Between the optical fiber segments to increase the relay length or the corresponding single-point to multi-point part of the optical access network to compensate for branch losses.

2. Feature of Benchtop Type Erbium-doped Fiber In-line Amplifier

Wide wavelength range;

High gain factor;

High output power.

3. Application of Benchtop Type Erbium-doped Fiber In-line Amplifier

Optical fiber communication;

Optical fiber sensor;

Fiber laser.

4. Optical-Electrical Characteristic of Benchtop Type Erbium-doped Fiber In-line Amplifier

Parameters Unit Values Notes
Operating wavelength nm 1530~1565 C-band
Input power dBm -25~-3
Saturated output power dBm 13/17/23/25/26 @-10dBm Input
Small signal gain coefficient dB 35 @-25dBm Input
Noise figure dB 5.5 @-10dBm Input
Gain flatness dB 3
Polarization dependent gain dB 0.5
Polarization mode dispersion ps 0.5
Input/Output isolation dB >35
Fiber type - SMF-28e
Connector - FC/APC
Operating mode - ACC/APC
Dimensions mm 260(W)×280(D)×120(H) Benchtop
125(W)×150(D)×20(H) Module
Power supply V AC 110~240V, <[email protected] Benchtop
5VDC,  <15W Module
Control mode - RS232 Serial communication Module
Communication Interface - DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70

5. Deliver,Shipping And Serving of Benchtop Type Erbium-doped Fiber In-line Amplifier

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band or L band wavelength.

Q: What is the requirement for the output power?

A: our company can customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
