1570~1603nm L-band EDFA Amplifier

The following is about 1570~1603nm L-band EDFA Amplifier related, I hope to help you better understand 1570~1603nm L-band EDFA Amplifier. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

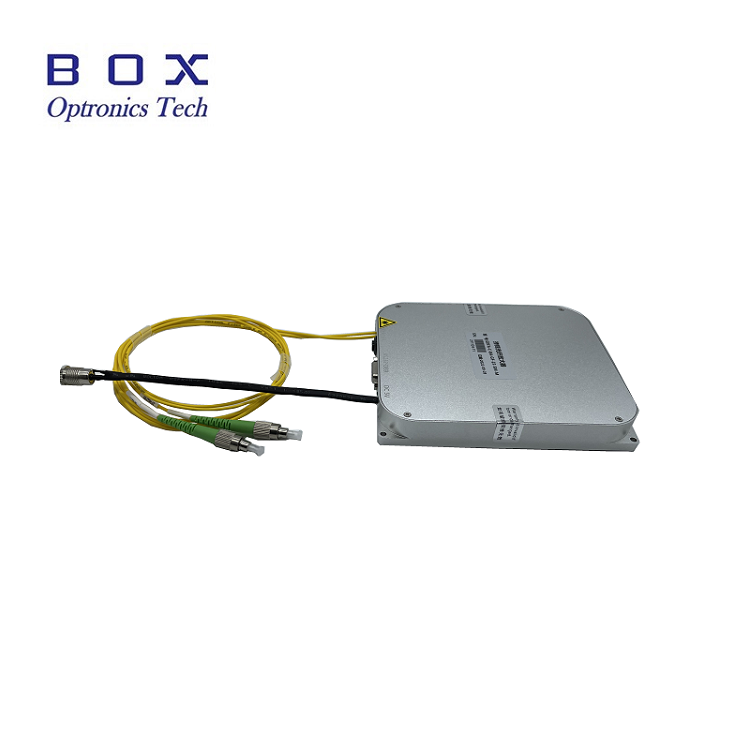

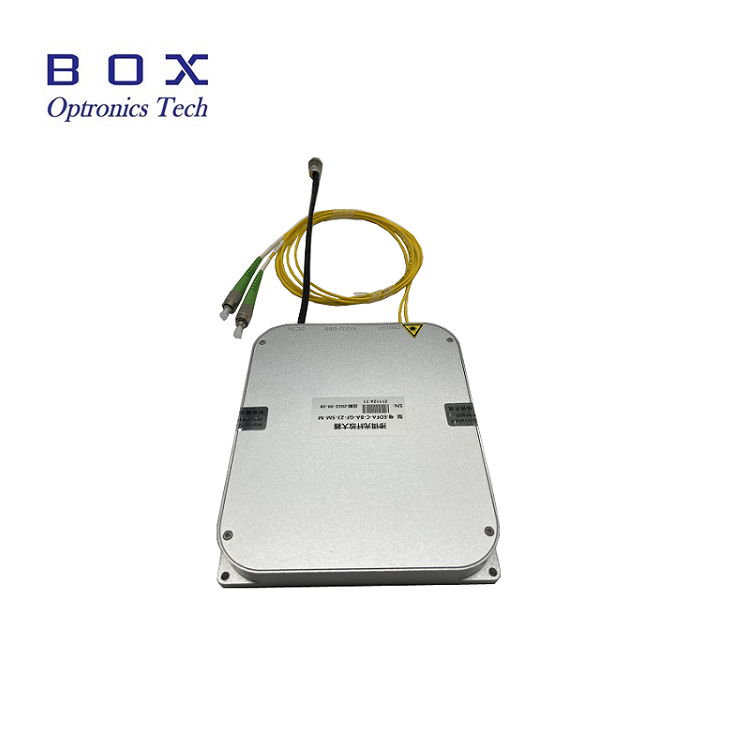

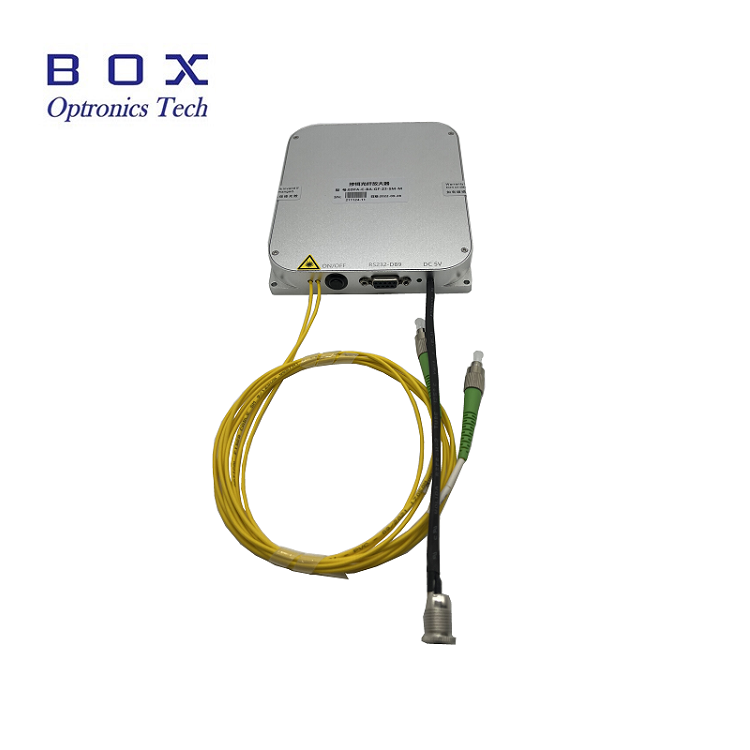

1. Introduction of 1570~1603nm L-band EDFA Amplifier

The L-band erbium-doped fiber amplifier (EDFA) is a series of optical power amplifiers specially used in optical fiber laser or optical fiber communication system. Its operating wavelength covers 1570 ~ 1603nm, and with advantages of high gain and low noise.

2. Feature of 1570~1603nm L-band EDFA Amplifier

L-Band wavelength;

High gain factor;

High output power.

3. Application of 1570~1603nm L-band EDFA Amplifier

Optical fiber communication;

Optical fiber sensor;

Fiber laser.

4. Optical-Electrical Characteristic of 1570~1603nm L-band EDFA Amplifier

Parameters Unit Values Notes
Operating wavelength nm 1570~1603 L-band
Input power dBm -6~+3
Saturated output power dBm 15/17/20/23/25 @-3dBm Input
Noise figure dB 5.0 @-3dBm Input
Gain flatness dB 3
Polarization dependent gain dB <0.3
Polarization mode dispersion ps 0.5
Input/Output isolation dB >35
Fiber type - SMF-28e
Connector - FC/APC
Operating mode - ACC/APC
Dimensions mm 260(W)×280(D)×120(H) Benchtop
125(W)×150(D)×20(H) Module
Power supply V AC 110~240V, <30W@25℃ Benchtop
5VDC,  <15W Module
Control mode - RS232 Serial communication Module
Communication Interface - DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70

(1) .ACC mode-automatic current control: EDFA pumping working current is set by the user and automatically locked by EDFA to achieve constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.

(2) APC mode-automatic power control: the user sets the EDFA signal light output power, PD automatically monitors and feeds back the output power, EDFA control and adaptive adjustment of the pump to stabilize the output signal. When the input optical power fluctuates, the APC mode will reduce the output power fluctuation as much as possible, which is suitable for power type and line type EDFA.

5. Deliver,Shipping And Serving of 1570~1603nm L-band EDFA Amplifier

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band or L band wavelength.

Q: What is the requirement for the output power?

A: our company can customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have two kinds of options,Module type and Benchtop type .
