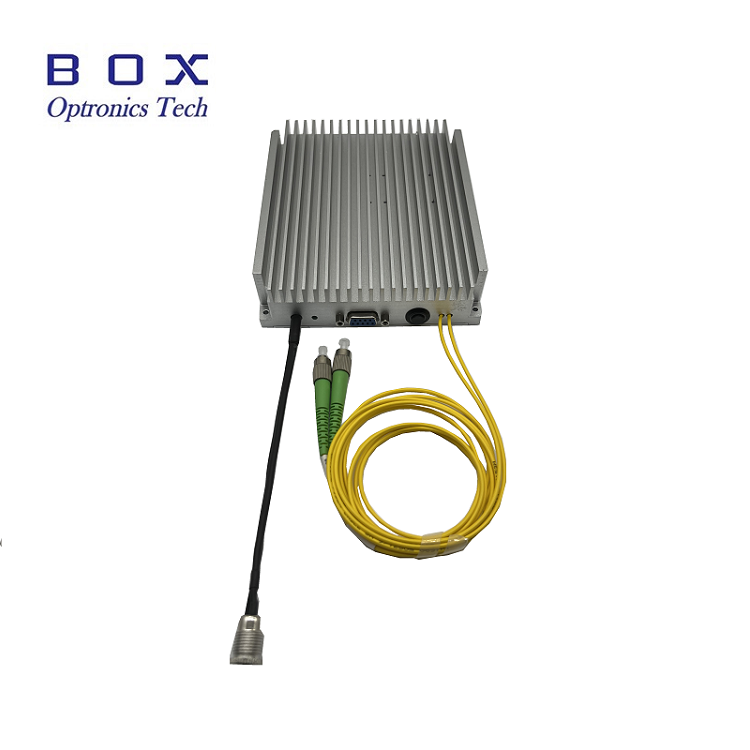

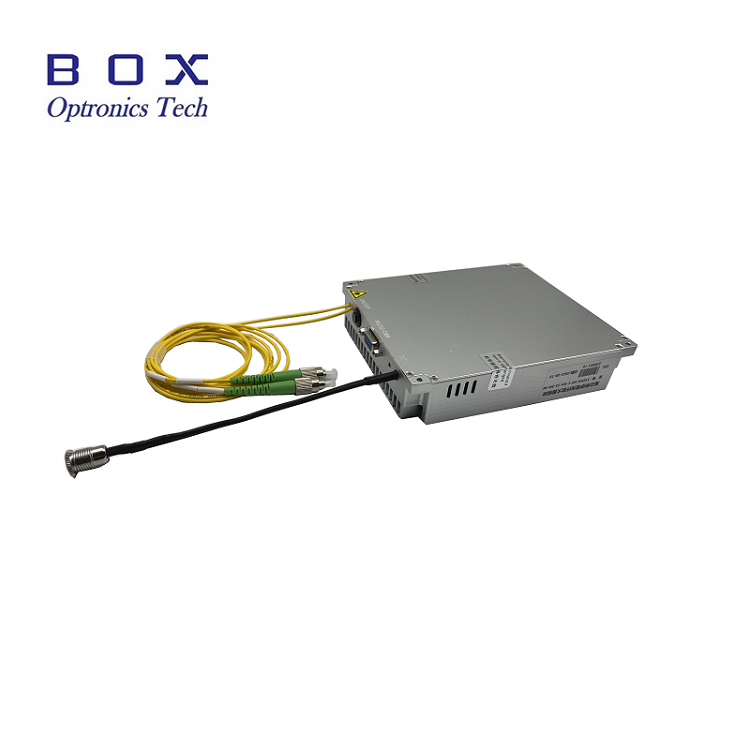

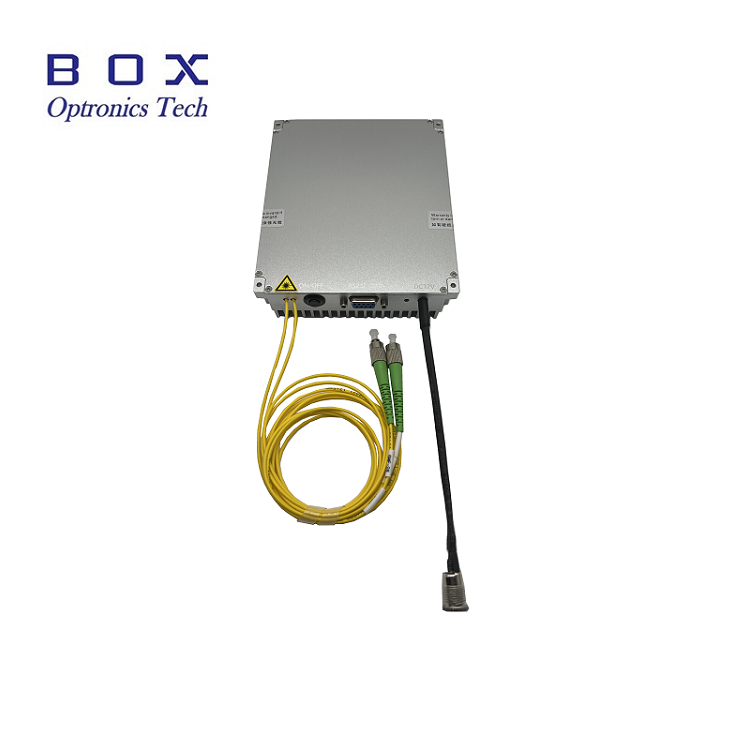

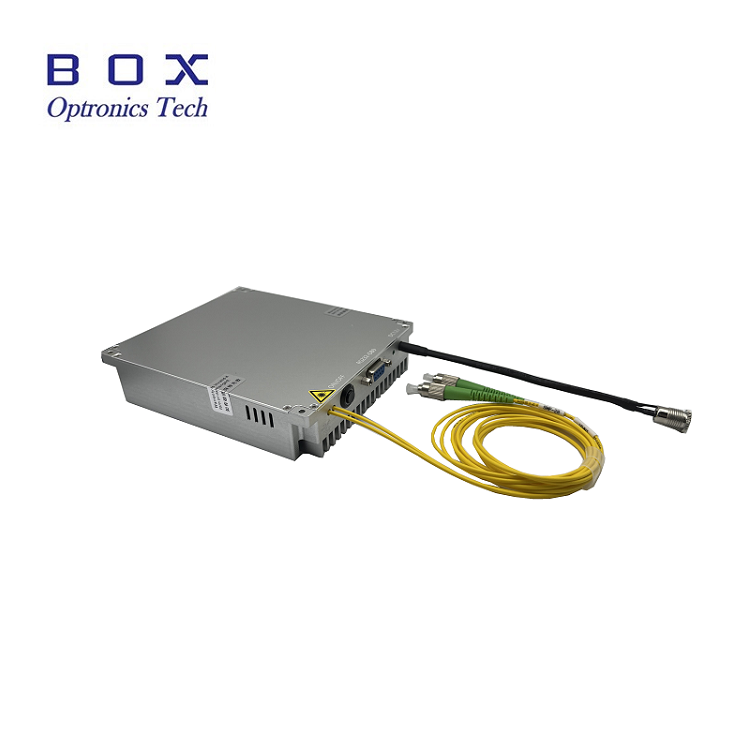

High Power EDFA Amplifier Module For Lidar

As a professional High Power EDFA Amplifier Module For Lidar manufactures, you can rest assured to buy High Power EDFA Amplifier Module For Lidar from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

1. Introduction of High Power EDFA Amplifier Module For Lidar

The high-power erbium-doped fiber amplifier (EYDFA-HP) is based on the double-clad erbium-doped fiber amplifier technology, using a unique optical packaging process, coupled with a reliable high-power laser protection design, to achieve high-power laser output in the 1540~1565nm wavelength range. With high power and low noise, it can be used in fiber optic communication, Lidar, etc.

2. Feature of High Power EDFA Amplifier Module For Lidar

High output power(10W);

High gain factor;

Wide wavelength range.

3. Application of High Power EDFA Amplifier Module For Lidar

Optical fiber communication;

Optical fiber sensor;

Fiber laser.

4. Optical-Electrical Characteristic of High Power EDFA Amplifier Module For Lidar

Parameters Unit Values Notes
Operating wavelength nm 1540~1565 Customized
Input power dBm -6~+10
Saturated output power dBm 27/30/33/35/37/40 @-3dBm Input
Noise figure dB <6.0 @-3dBm Input
Gain flatness dB 3
Polarization dependent gain dB <0.5
Polarization mode dispersion ps 0.5
Input/Output isolation dB >35
Fiber type - SMF-28e
Connector - FC/APC or Collimator
Operating mode - ACC/APC
Dimensions mm 260(W)×320(D)×120(H) Benchtop(27/30/33/35dBm)
360(W)×350(D)×120(H) Module(37/40dBm)
125(W)×150(D)×30(H) Module(27/30/33/35dBm)
139(W)×235(D)×70(H) Benchtop(37/40dBm)
Power supply V AC 110~240V, <150W@25℃ Benchtop
12V DC,  <60W Module
Control mode - RS232 Serial communication Module
Communication Interface - DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70

(1) .ACC mode-automatic current control: EDFA pumping working current is set by the user and automatically locked by EDFA to achieve constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is applicable to all EDFA models.

(2) APC mode-automatic power control: the user sets the EDFA signal light output power, PD automatically monitors and feeds back the output power, EDFA control and adaptive adjustment of the pump to stabilize the output signal. When the input optical power fluctuates, the APC mode will reduce the output power fluctuation as much as possible, which is suitable for power type and line type EDFA.

5. Typical curve of High Power EDFA Amplifier Module For Lidar

6. Deliver,Shipping And Serving of High Power EDFA Amplifier Module For Lidar

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

7. FAQ

Q: what is the wavelength you need?

A: C-band or L band wavelength.

Q: What is the requirement for the output power?

A: our company can customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
