Coaxial pigtailed laser diodes Manufacturers

The Coaxial pigtailed laser diodes are comprised of an uncooled quantum well DFB laser or FP laser chip, built-in InGaAs monitor photodiode, 4-pin coaxial pigtail type or plug-in type package, single-mode fiber coupling device, SC/APC or FC/APC optical connector, and built-in optical isolator. Its light source covers a wide wavelength range from 1270nm to 1610nm, totaling 18 wavelengths. Other typical values for the Coaxial pigtailed laser diodes are ±10nm for the spectral range, spectral bandwidth is 0.32nm, and output power range from 1MW to 7MW. This series of product is most commonly used in the WDM light source and communication systems, CWDM analog communication systems, CATV return-path transmission systems, and other analog transmission systems.


BoxOptronics Coaxial pigtailed laser diodes assemblies feature an integral optical isolator. The addition of these isolators provides protection against back reflections and ensures a minimum optical isolation of 30 dB at the specified center wavelength over the entire operating temperature range.


BoxOptronics Coaxial pigtailed laser diodes include InGaAs pigtail photodiode, 1270nm~1610nm CWDM laser diode, 1625nm 1650nm DFB laser diode, CWDM with TEC cooler etc.

View as

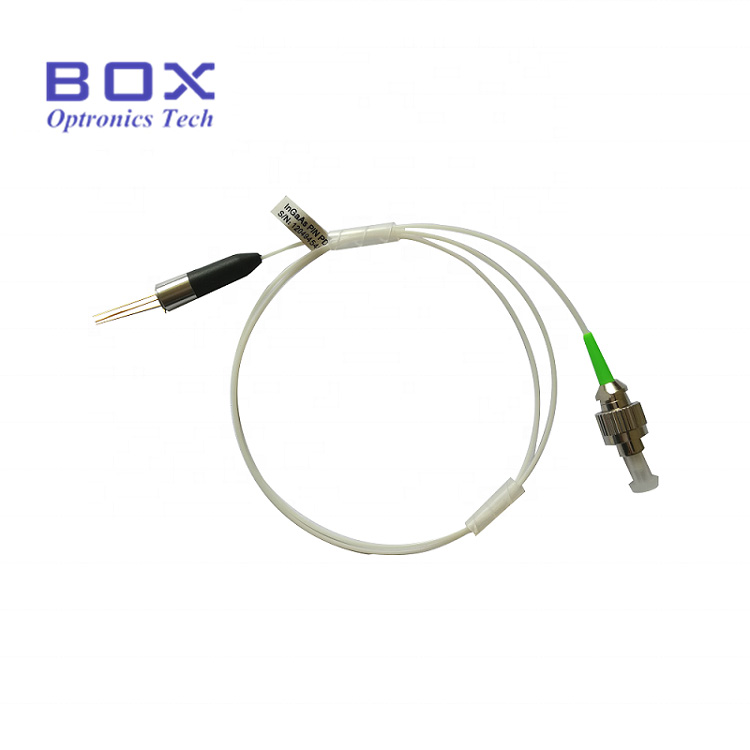

  • The 1100nm-1650nm Coaxial Pigtail Ingaas Photodiode employs a small, coaxial package and InGaAs detector chip. It features a very low power consumption, a small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long service life. This product series is most often used in CATV receivers, in optical signal receivers in analog systems, and power detectors.

  • The 1100nm-1650nm Coaxial Pigtail Ingaas Photodiode employs a small, coaxial package and InGaAs detector chip. It features a very low power consumption, a small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long service life. This product series is most often used in CATV receivers, in optical signal receivers in analog systems, and power detectors.

  • The 1270nm DFB Coaxial Pigtail Laser Diode series of MultiQuantum Well (MQW) Distributed Feedback (DFB) lasers have been designed specifically to satisfy the requirements of SONET CWDM transmission. The devices feature high output power and wide operating temperature range. Their uncooled, hermetically sealed, coaxial fiber pigtailed packages are a cost-effective means of providing a high-speed light source for intermediate-reach and long-reach applications.

  • 1290nm Coaxial DFB laser diode With Pigtail is InGaAsP/InP CWDM MQW-DFB laser diode modules designed for WDM fiber optic communication systems. These modules have low threshold current and high performance at high temperature. A laser diode is mounted into a coaxial package integrated with an InGaAs monitor PD and a single-mode pigtai land Clients can avail this 1270nm-1610nm DFB Laser Diode With Pigtail at industry leading prices from us.

  • The 1310nm Coaxial DFB Pigtail Laser Diode have an excellent simulation performance due to the use of a DFB chip. The output power is controlled within 1 to 4 mw based on customer needs, which makes this laser module ideal for use in CATV, digital, and analog signal transmissions.

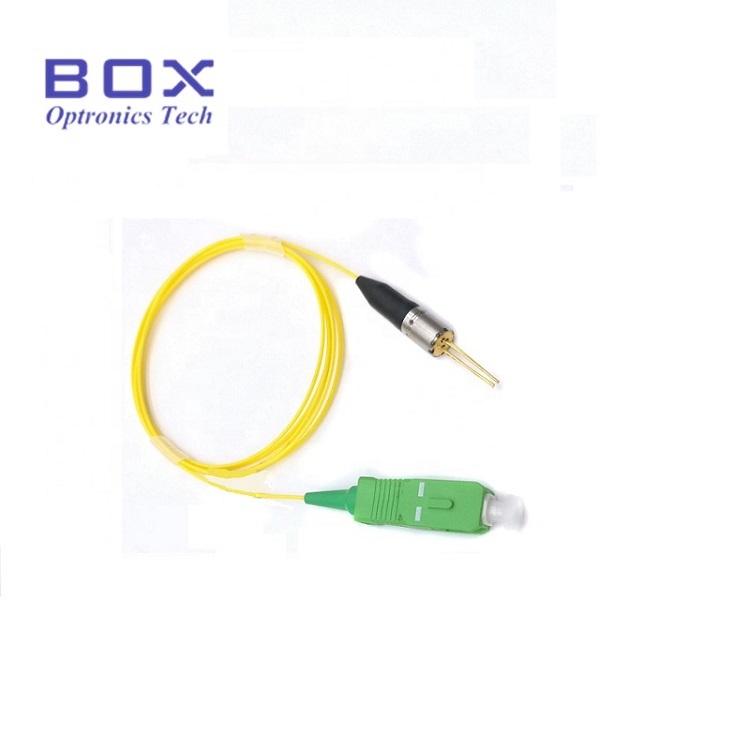

  • The 1330nm 2mW 4mW Coaxial DFB Pigtail laser diode have an excellent simulation performance due to the use of a DFB chip. The output power is controlled within 1 to 4 mw based on customer needs, which makes this laser module ideal for use in CATV, digital, and analog signal transmissions.

 12345...6
Customized Coaxial pigtailed laser diodes can be bought from Box Optronics. As one of the professional China Coaxial pigtailed laser diodes manufacturers and suppliers, we assist customers to provide better product solutions and optimize industry costs. Coaxial pigtailed laser diodes made in China is not only of high quality, but also cheap. You can wholesale our products at low prices. In addition, we also support bulk packaging. Our value is "customer first, service foremost, credibility foundation, win-win cooperation". For more info, welcome to visit our factory. Let us cooperate with each other to create a better future and mutual benefit.
