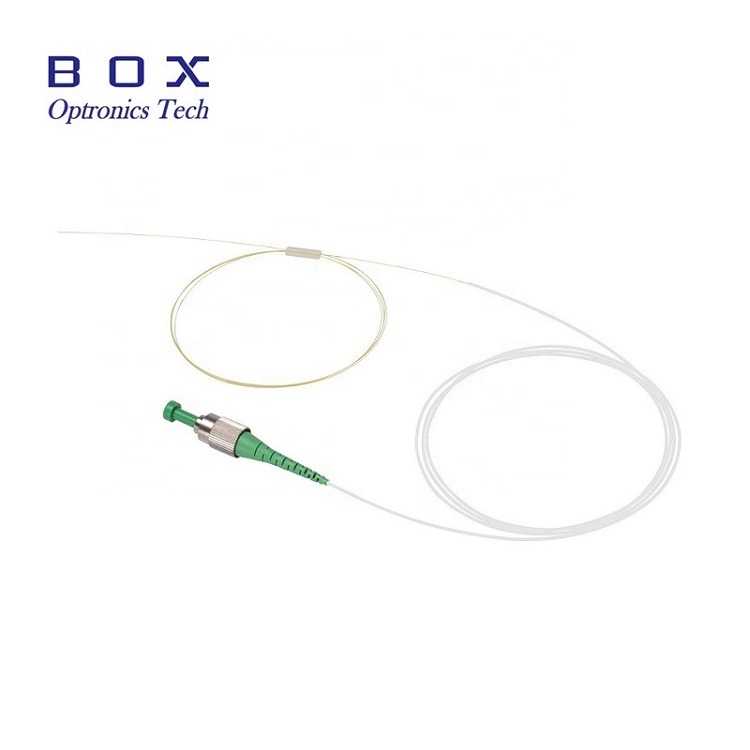

1270nm to 1610nm or 1550nm Fiber Bragg Grating FBGs are a kind of diffraction grating formed by periodically modulating the refractive index of the core of the fiber through a certain method. It is a passive filter device. Grating fibers are widely used in the fields of optical fiber communication, optical fiber sensing and optical fiber signal processing because of their small size, low fusion loss, full compatibility with optical fibers and embedded intelligent materials, and their resonant wavelength is sensitive to the changes of temperature, strain, refractive index, concentration and other external environment.

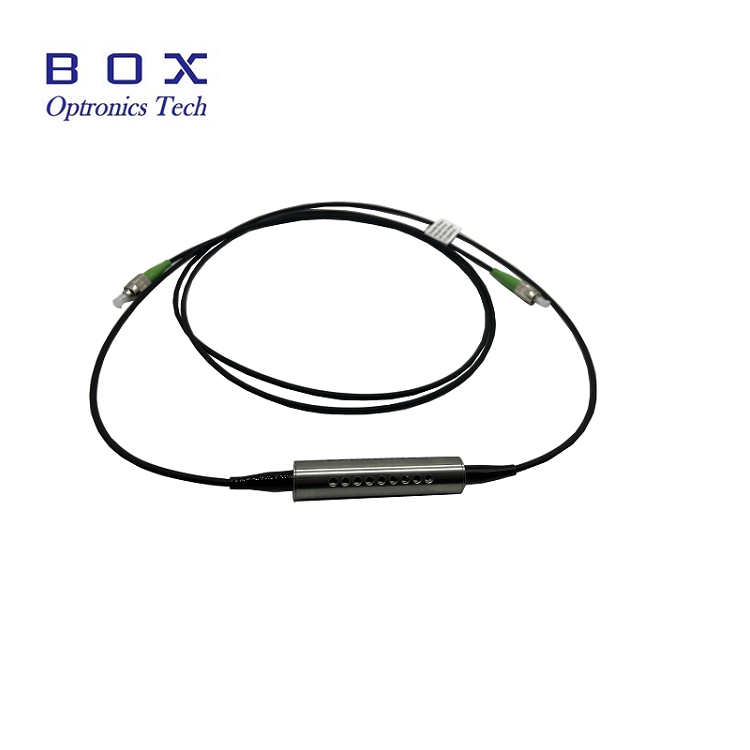

The Fiber Grating Hygrometer Humidity Sensor is packaged with stainless steel metal tube, and its humidity sensitivity is used to monitor humidity. The sensor is intrinsically safe, free from electromagnetic interference for temperature and humidity testing.
A Phase Shifted FBG Fiber Bragg Grating introduces phase discontinuities into a fiber grating, creating a narrow transmission window in the FBG's reflection spectrum. The transmission wavelength varies with the amount of phase shift. Phase-shifted FBGs can be used as demultiplexers in dense wavelength division multiplexing (DWDM) systems. The magnitude, location, and point of the phase shift have a significant impact on the performance of the demultiplexer.
The wavelength of a pump laser diode varies at different operating temperatures. The 980nm pump FBG Fiber Bragg grating wavelength lock is used to stabilize the wavelength and intensity of the optically amplified pump laser. By precisely locking the pump laser diode through feedback of a small portion of the laser signal, this type of control significantly improves the power and wavelength output accuracy and reliability of the pump laser. Specifically, it eliminates spectral mode jumps in the pump laser, reduces power intensity fluctuations caused by temperature and pump drive current variations, and greatly improves the performance of the pump laser. It is also commonly used for stabilizing distributed feedback lasers in wavelength division multiplexing systems, the optical path of tunable lasers, and fiber resonators in Raman systems. Depending on the customer's locking requirements for the pump laser, single-grating or dual-grating configurations are available. The dual-grating configuration further improves the output spectral characteristics of uncooled pump lasers.
