C-band Erbium-doped Fiber Pre-amplifier Module

You can rest assured to buy C-band Erbium-doped Fiber Pre-amplifier Module from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

1. Introduction of C-band Erbium-doped Fiber Pre-amplifier Module

The pulse erbium-doped fiber amplifier (EDFA) is an eye-safe fiber amplifier. According to the characteristics of short-pulse (ns-level) signal amplification, the optical path is optimized. A single-mode 980-pumped laser of telecommunication level is used internally, and its optical-to-optical conversion efficiency and minimum signal distortion are guaranteed by using proprietary technology and special optical path design..

2. Feature of C-band Erbium-doped Fiber Pre-amplifier Module

Wide wavelength range;

High gain factor;

Low noise.

3. Application of C-band Erbium-doped Fiber Pre-amplifier Module

Optical fiber communication;

Optical fiber sensor;

Fiber laser.

4. Optical-Electrical Characteristic of C-band Erbium-doped Fiber Pre-amplifier Module

Parameters Unit Values Notes
Part number - EDFA-PA-35 EDFA-PA-45
Operating wavelength nm 1530~1565 C-band
Input power dBm -35~-25 -45~-25
Small signal gain coefficient dB 35 - @-35dBm Input
Small signal gain coefficient dB - 45 @-45dBm Input
Noise figure dB 4.5 @-35dBm Input
Gain flatness dB 3
Polarization dependent gain dB <0.3
Polarization mode dispersion ps 0.5
Input/Output isolation dB >35
Fiber type - SMF-28e
Connector - FC/APC
Operating mode - Automatic current control(ACC)

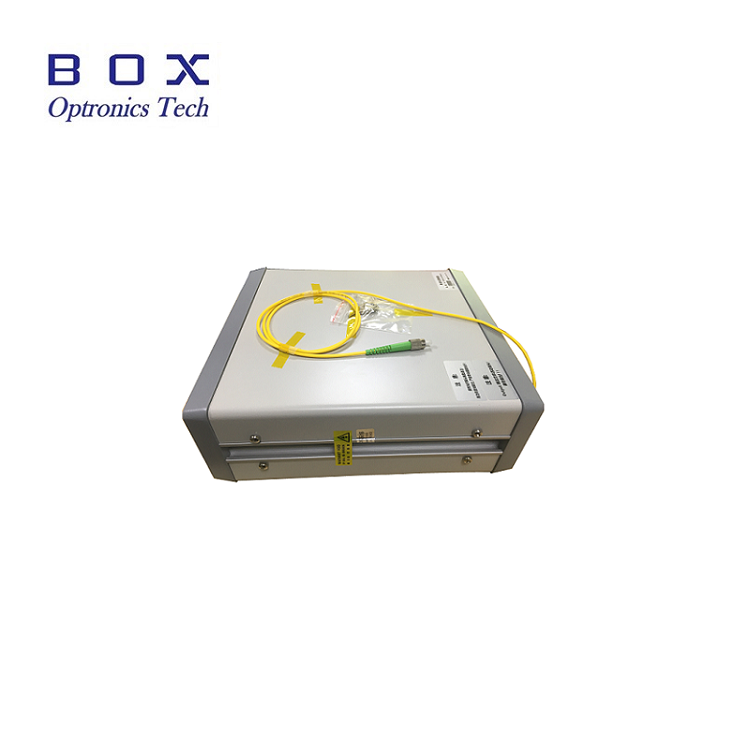

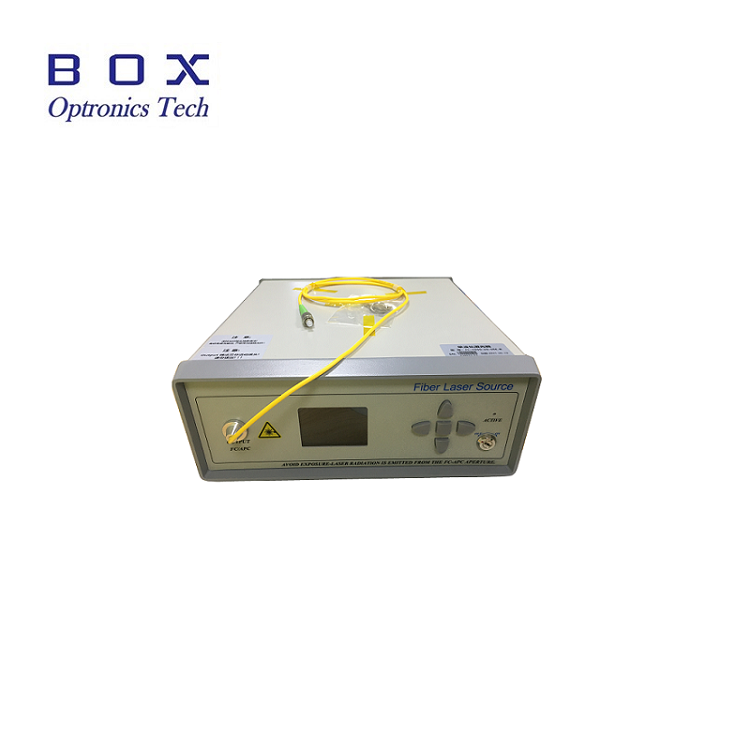

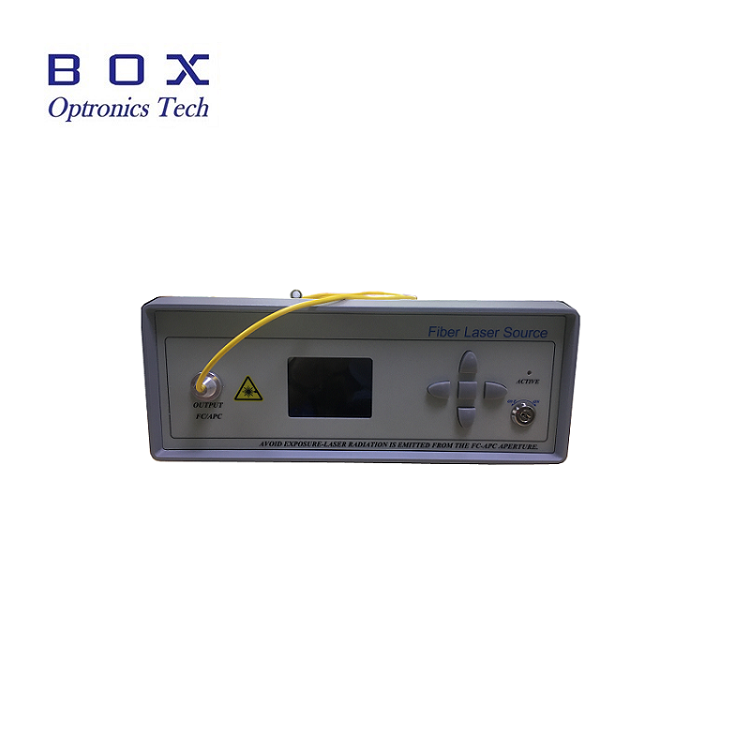

Dimensions mm 260(W)×280(D)×120(H) Benchtop
125(W)×150(D)×20(H) Module
Power supply V AC 110~240V, <[email protected] Benchtop
5V DC,  <15W Module
Control mode - RS232 Serial communication Module

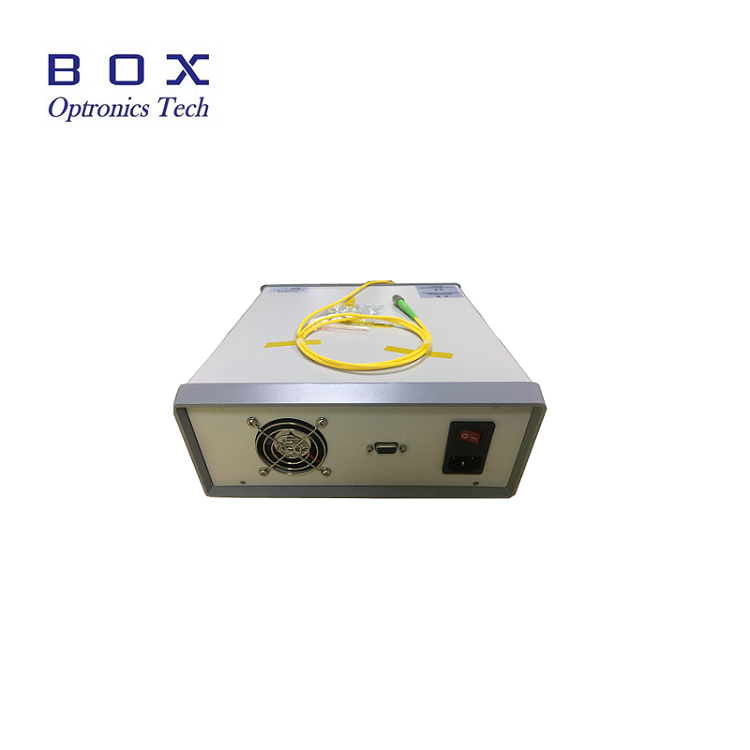

Communication Interface - DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70

5. Product Details of C-band Erbium-doped Fiber Pre-amplifier Module

This EDFA Module is with RS232 Serial communication.

6. Deliver,Shipping And Serving Of C-band Erbium-doped Fiber Pre-amplifier Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

7. FAQ

Q: what is the wavelength you need?

A: C-band or L band wavelength.

Q: What is the requirement for the small signal gail?

A: our company have two version: [email protected] and [email protected]

Q: About the package dimension, do you haveany requirement?

A: We have the module type and benchtop for choice.
