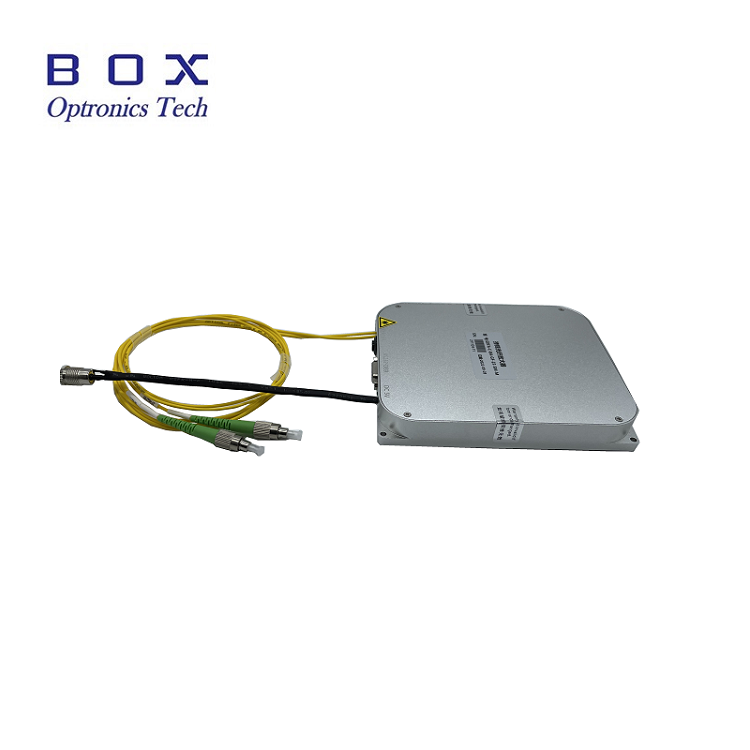

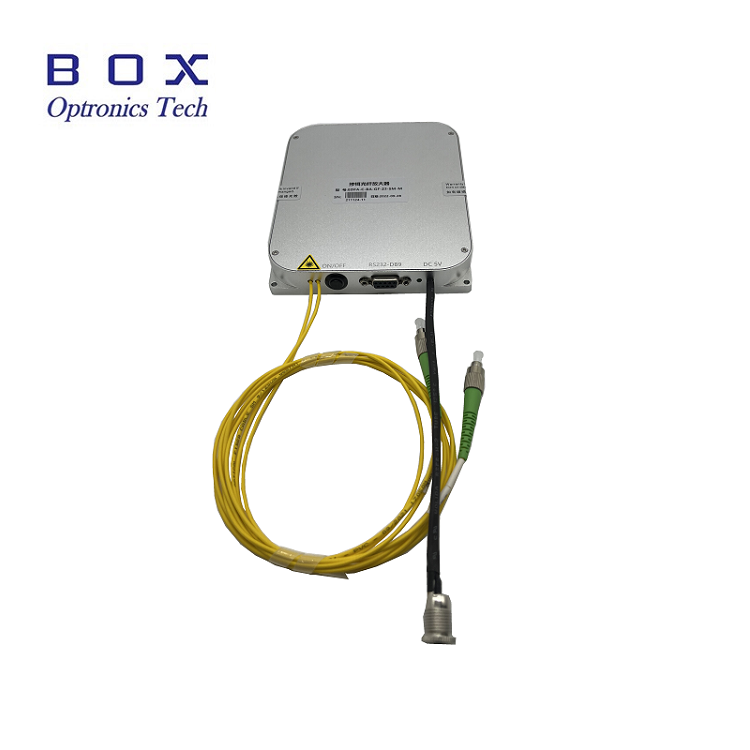

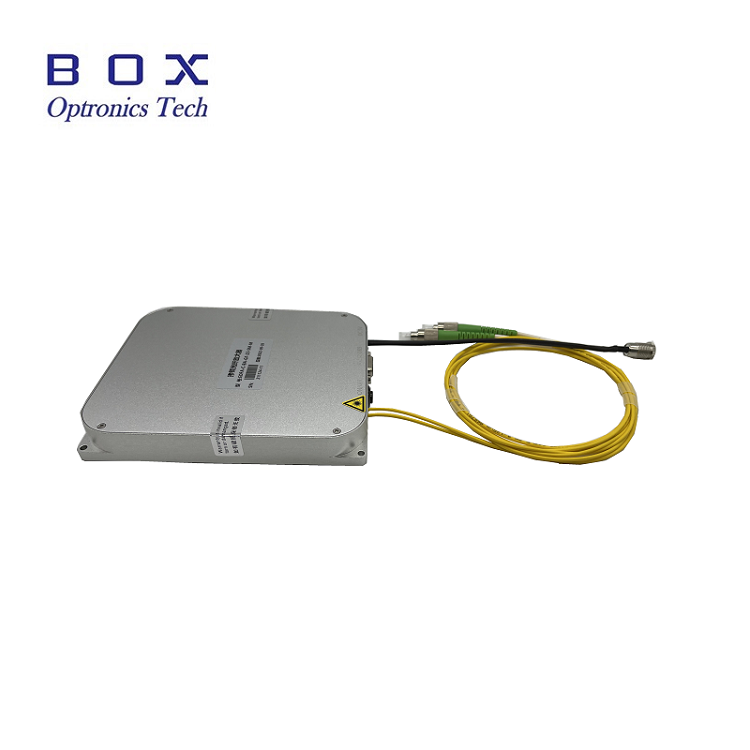

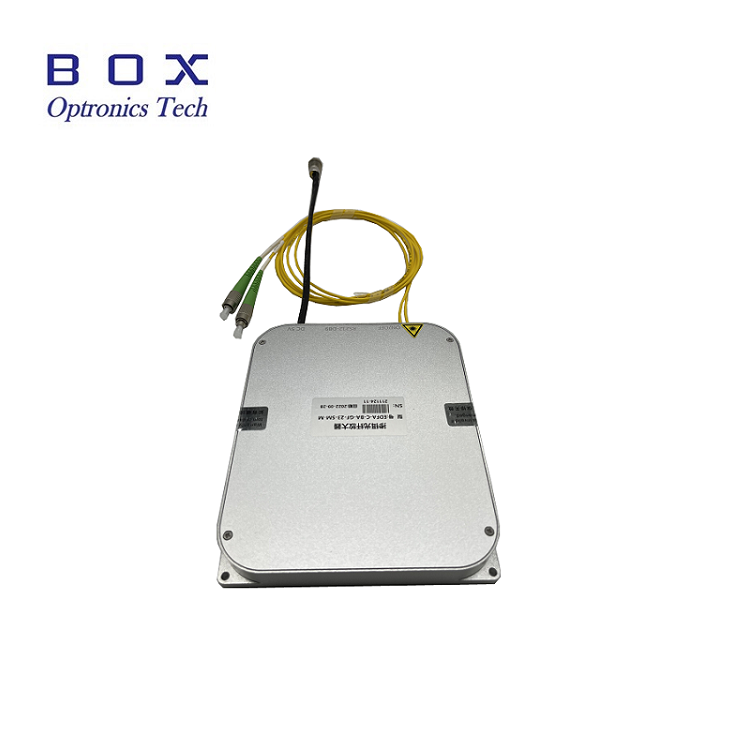

Multi Wavelength Gain Flattened EDFA Amplifier

Multi Wavelength Gain Flattened EDFA Amplifier is a series of fiber amplifiers used in optical fiber communication system. It can amplify multiple wavelength signals in C-band at the same time, and keep the same gain among all wavelengths, with gain flatness ≤ 1.5dBm Which with wide spectrum, multi wavelength, flat gain, high gain and low noise.

Send Inquiry

Product Description

1. Introduction of Multi Wavelength Gain Flattened EDFA Amplifier

Multi wavelength gain flattened erbium-doped fiber amplifier is a series of fiber amplifiers used in optical fiber communication system. It can amplify multiple wavelength signals in C-band at the same time, and keep the same gain among all wavelengths, with gain flatness ≤ 1.5dBm Which with wide spectrum, multi wavelength, flat gain, high gain and low noise.

2. Feature of Multi Wavelength Gain Flattened EDFA Amplifier

Wide wavelength range;

High gain factor;

High output power.

3. Application of Multi Wavelength Gain Flattened EDFA Amplifier

Optical fiber communication;

Optical fiber sensor;

Fiber laser.

4. Optical-Electrical Characteristic of Multi Wavelength Gain Flattened EDFA Amplifier

Parameters Unit Values Notes
Part number - EDFA-PA-GF EDFA-BA-GF
Operating wavelength nm 1530~1560 C-band
Input power dBm -32~-25 -26~-10
Output power dBm 14 17/20/23
Gain coefficient dB 25 25
Noise figure dB 5.0 5.0
Gain flatness dB 1.5(Typ.)/0.8(Min.)
Polarization dependent gain dB <0.3
Polarization mode dispersion ps 0.5
Input/Output isolation dB >35
Fiber type - SMF-28e
Connector - FC/APC
Operating mode - ACC ACC/APC
Dimensions mm 260(W)×280(D)×120(H) Benchtop
125(W)×150(D)×20(H) Module
Power supply V AC 110~240V, <[email protected] Benchtop
5VDC,  <15W Module
Control mode - RS232 Serial communication Module
Communication Interface - DB9 Female Module
Operating temperature -5~ +55
Operating humidity range % 0~70

5. Deliver,Shipping And Serving of Multi Wavelength Gain Flattened EDFA Amplifier

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band or L band wavelength.

Q: What is the requirement for the output power?

A: our company can customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.

Q: What EDFA type would you like?

A: We have two kinds of options, Gain Flattened PA and Gain Flattened BA.
