1064nm Nanosecond Fiber Laser Module for Nonlinear Optics adopts unique circuit and optical optimization design. The output laser pulse width, peak power and repetition frequency are adjustable. The working wavelength and power output are stable. The single-mode fiber output is modular and easy to integrate into the system. It is suitable for use in laser ranging, fiber optic sensing and other fields.
● All-fiber structure;
● Bench-top or module package;
● Pulse width, repetition rate and power are adjustable.
● LiDAR;
● Nonlinear Optics;
● Fiber Optic Sensing.
| Parameter | Unit | Values | Notes |
| Operating Wavelength | nm | 1064 +/- 2 | - |
| Spectral width | nm | ≤1 | - |

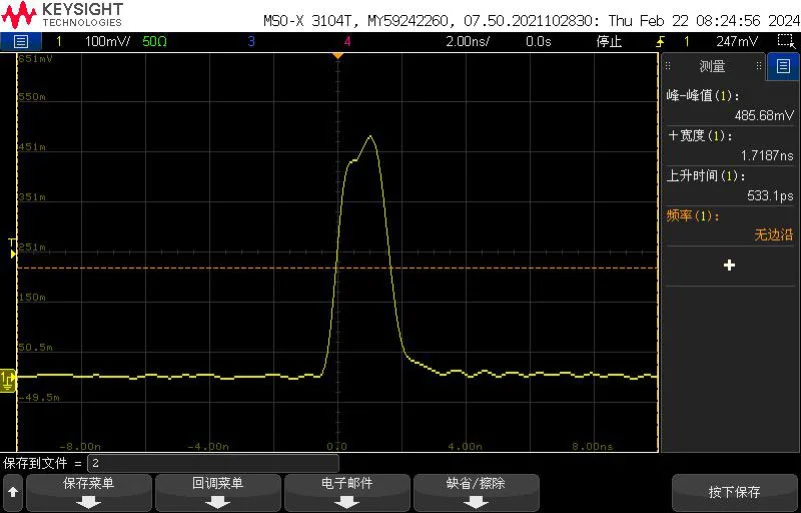

| Pulse width | ns | 2~50 | Adjustable |
| Output peak power | W | 10～50 | Adjustable |
| Pulse repetitive frequency | kHz | 1～1000 | - |
| Short-term stability (15 minutes) | dB | ≤ ±0.02 | Equivalent ≤±0.5% |
| Long term stability (8 hours) | dB | ≤ ±0.05 | Equivalent ≤±1.2% |
| Trigger mode | - | External trigger/internal trigger | SMA interface |
| Fiber type | - | Hi-1060 FC/APC | - |
| Operating temperature | ℃ | -5~+35°C | - |
| Dimensions | mm | 260(W)×280(D)×120(H)mm | Benchtop |
| 125(W)×150(D)×20(H)mm | Module | ||
| Power supply | V | 100~240V AC, <30W | Benchtop |
| 5V DC, <15W | Module |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What parameters are adjustable?
A: Pulse witdth, output power, pulse repetitive frequency.
Q: Do you provide 1550nm nanosecond pulse fiber laser?
A: Yes.
1560nm PM Femtosecond Pulse Fiber Laser Module
532nm 1064nm Picosecond Pulse Fiber Laser For Supercontinuum Generation

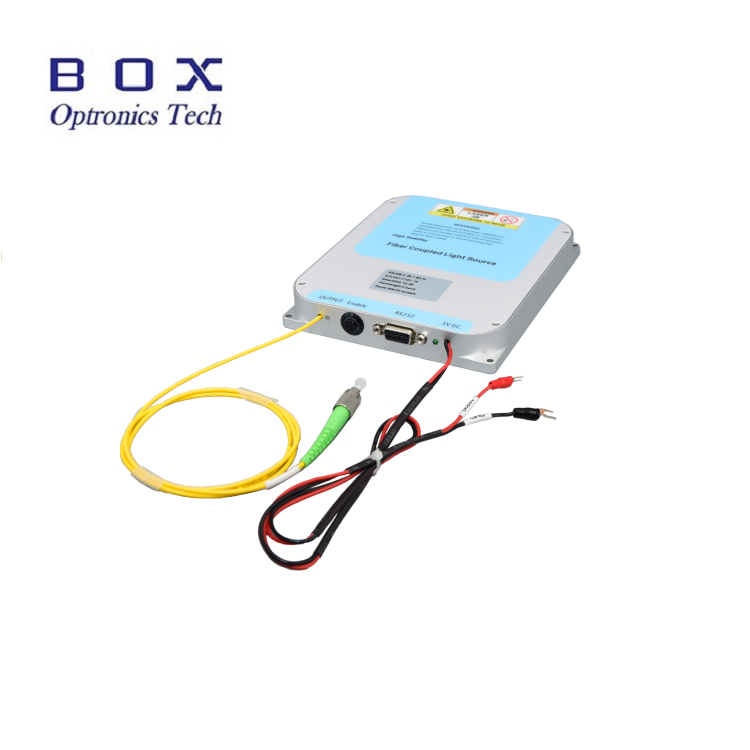

Low Noise 1550nm Nanosecond Pulse Fiber Laser Module For DTS Sensor System
