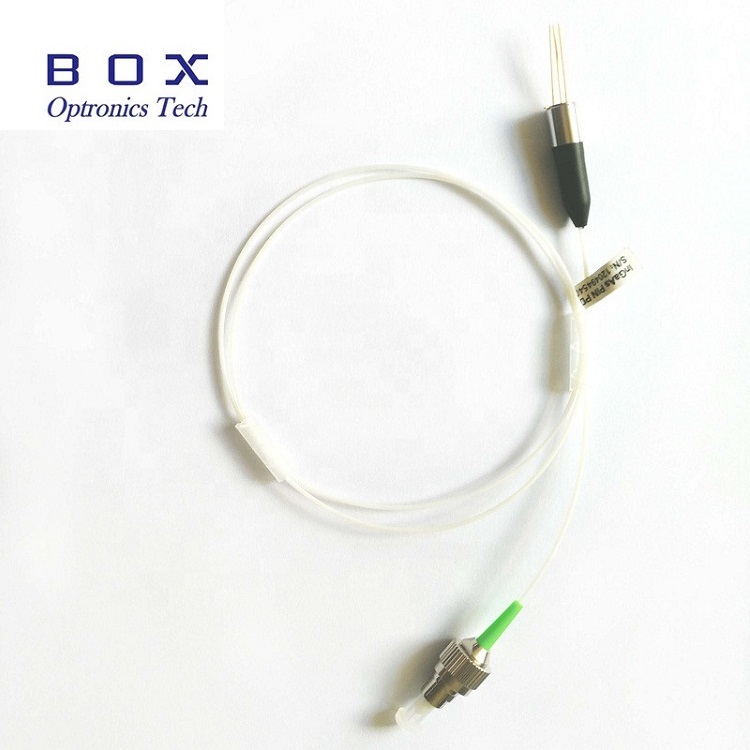

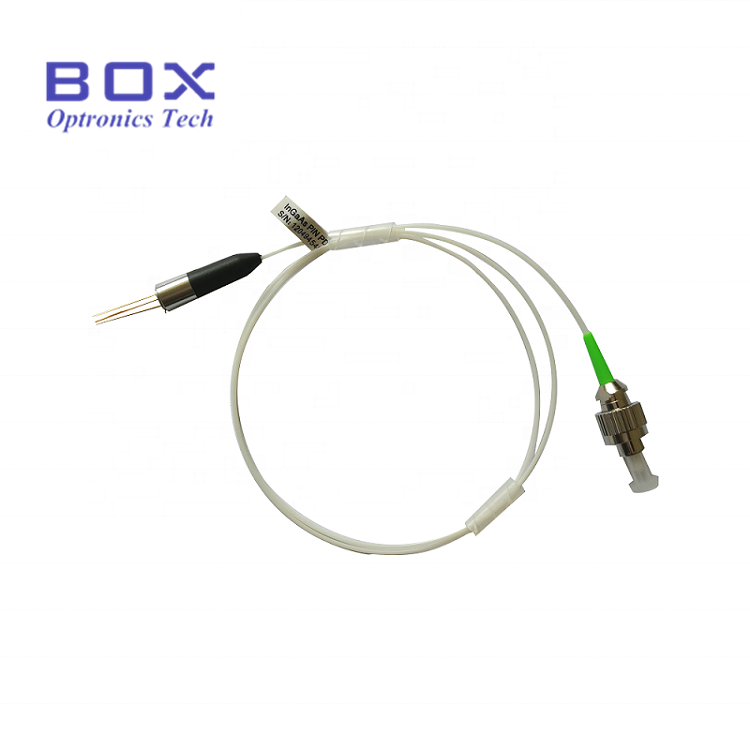

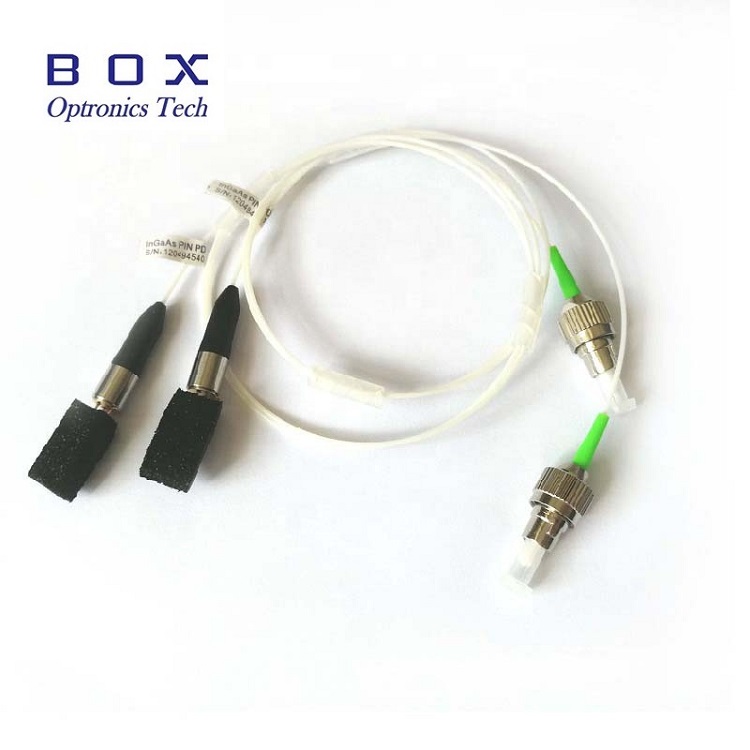

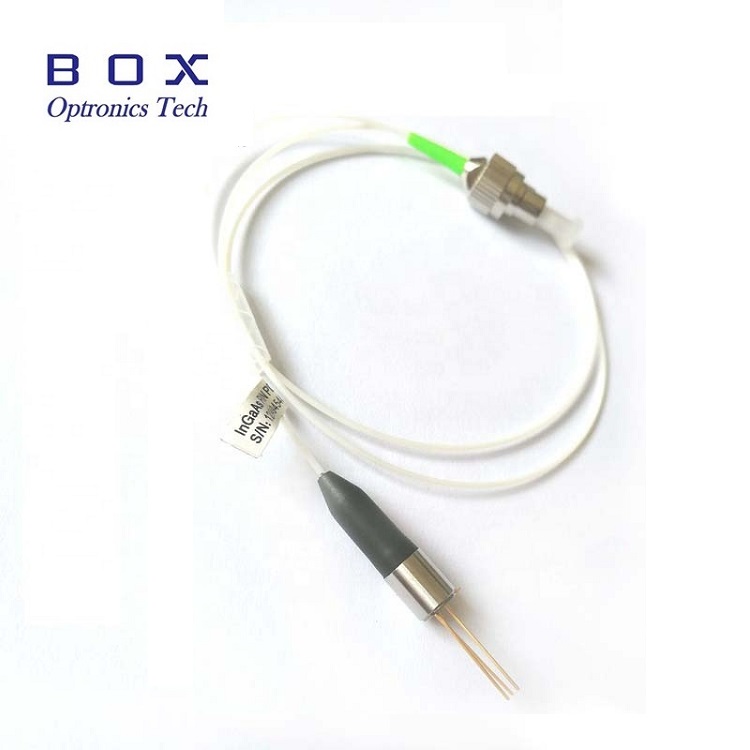

1100nm-1650nm Coaxial Pigtail PIN Photodiode

The 1100nm-1650nm Coaxial Pigtail Ingaas Photodiode employs a small, coaxial package and InGaAs detector chip. It features a very low power consumption, a small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long service life. This product series is most often used in CATV receivers, in optical signal receivers in analog systems, and power detectors.

Send Inquiry

Product Description

1. Summary of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

The 1100nm-1650nm Coaxial Pigtail Ingaas Photodiode employs a small, coaxial package and InGaAs detector chip. It features a very low power consumption, a small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long service life. This product series is most often used in CATV receivers, in optical signal receivers in analog systems, and power detectors.

2. Introduction of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

The 1100nm-1650nm Coaxial Pigtail Ingaas Photodiode employs a small, coaxial package and InGaAs detector chip. It features a very low power consumption, a small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long service life. This product series is most often used in CATV receivers, in optical signal receivers in analog systems, and power detectors.

3. Features of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

Detect range 1100nm-1650nm;

Coaxial package, Laser welding;

Low dark current, Low capacitance;

High reliability, Long operation life;

Optional FC/PC or FC/APC connector.

4. Application of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

Analog optical receiver;

Test equipment.

5. Electro-Optical Characteristics(T=25℃) of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

Parameter Symbol Condition Min. Typ. Max. Unit
Wavelength range λ   1100 - 1650 nm
  Responsivity   R Vr=5V, λ =1310nm 0.85 0.90 -   A/W
Vr=5V, λ =1550nm 0.90 0.95 -
Dark current ID Vr=5V - 0.2 0.5 nA
Capacitance C Vr=5V, f=1MHz,case open - 0.6 0.75 pF
Rise time/Fall time TR/TF Vr=5V, 10~90% - - 0.3 ns
Bandwidth BW Vr=5V, 50Ωload with lead
length=6mm,case open
2.5 - - GHz
Composite second order beat CSO - - -70 - dB
Composite third order beat CTB - - -80 - dB
Operating voltage V - - -5 - V
Optical return loss ORL λ =1310nm - 45 - dB

6. Package drawing&PIN-OUT Definition(Unit:mm) of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

Pigtail package:

Receptacle Package:

7. Deliver,Shipping And Serving of 1100nm-1650nm Coaxial Pigtail PIN Photodiode

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.
