500um InGaAs PIN Photodiode Chip
  • 500um InGaAs PIN Photodiode Chip500um InGaAs PIN Photodiode Chip

500um InGaAs PIN Photodiode Chip

The 500um InGaAs PIN Photodiode Chip offer superb response from 900nm to 1700nm, perfect for telecom and near IR detection. The photodiode is perfect for high bandwidth and active alignment applications.

Send Inquiry

Product Description

1. Summary of 500um InGaAs PIN Photodiode Chip

The 500um InGaAs PIN Photodiode Chip offer superb response from 900nm to 1700nm, perfect for telecom and near IR detection. The photodiode is perfect for high bandwidth and active alignment applications.

2. Introduction of 500um InGaAs PIN Photodiode Chip

The 500um InGaAs PIN Photodiode Chip offer superb response from 900nm to 1700nm, perfect for telecom and near IR detection. The photodiode is perfect for high bandwidth and active alignment applications.

3. Features of 500um InGaAs PIN Photodiode Chip

Detect range 900nm-1650nm;

High speed;

High responsivity;

Low capacitance;

Low dark current;

Top illuminated planar structure.

4. Application of 500um InGaAs PIN Photodiode Chip

Monitoring;

Fiber-optic Instruments;

Data Communications.

5. Absolute Maximum Ratings of 500um InGaAs PIN Photodiode Chip

Parameter Symbol Value Unit
Reverse voltage VRmax 20 V
Forward Current - 10 mA
Operating temperature Topr -40 to +85
Storage temperature Tstg -55 to +125

6. Electro-Optical Characteristics(T=25℃) of 500um InGaAs PIN Photodiode Chip

Parameter Symbol Condition Min. Typ. Max. Unit
Wavelength range λ   900 - 1650 nm
Responsivity R λ =1310nm 0.85 0.90 - A/W
λ =1550nm - 0.95 -
λ =850nm - 0.20 -
Dark current ID Vr=5V - 1.0 10.0 nA
Capacitance C VR=5V, f=1MHz - 13 18 pF

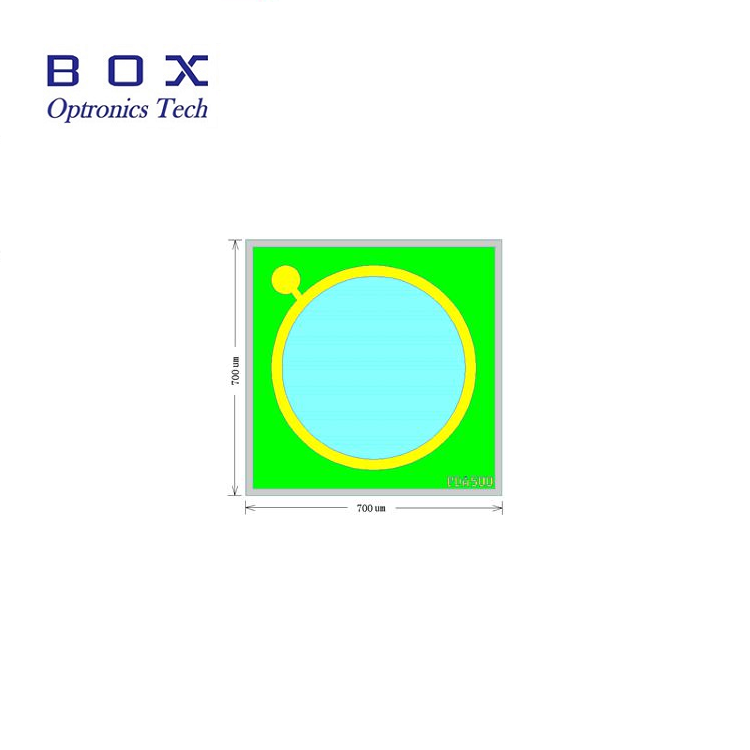

7. Dimension Parameter of 500um InGaAs PIN Photodiode Chip

Parameter Symbol Value Unit
Active area diameter D 500 um
Bond pad diameter - 100 um
Die size - 700x700 um
Die thickness t 180±20 um

8. Deliver,Shipping And Serving of 500um InGaAs PIN Photodiode Chip

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the active area would you like?

A: we have 0.3mm 0.5mm 1mm 2mm active area InGaAs Photodiode Chip.

Q: What is the requirement for the connector?

A: Box Optronics can customize according to your requirements.
