0.3mm Active Area InGaAs photodiodes

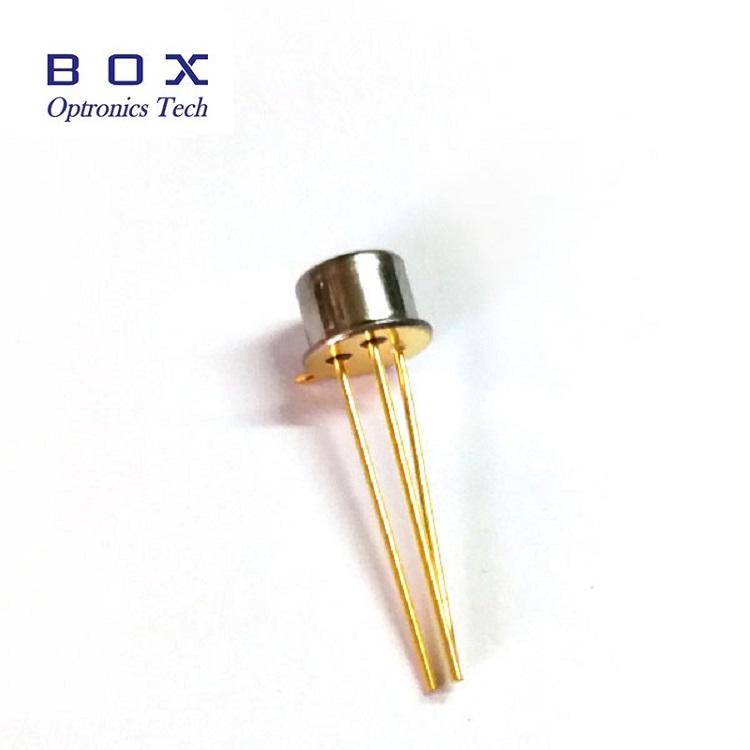

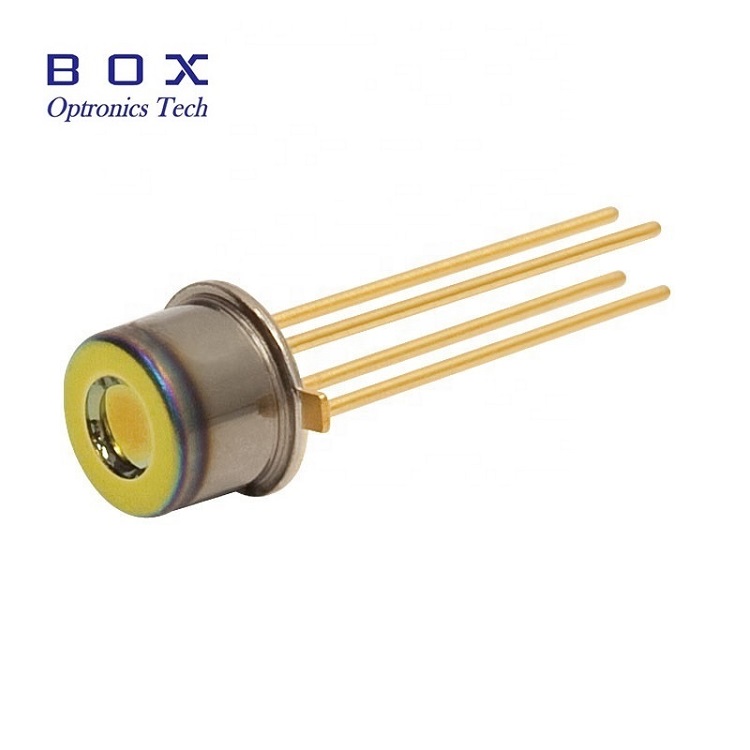

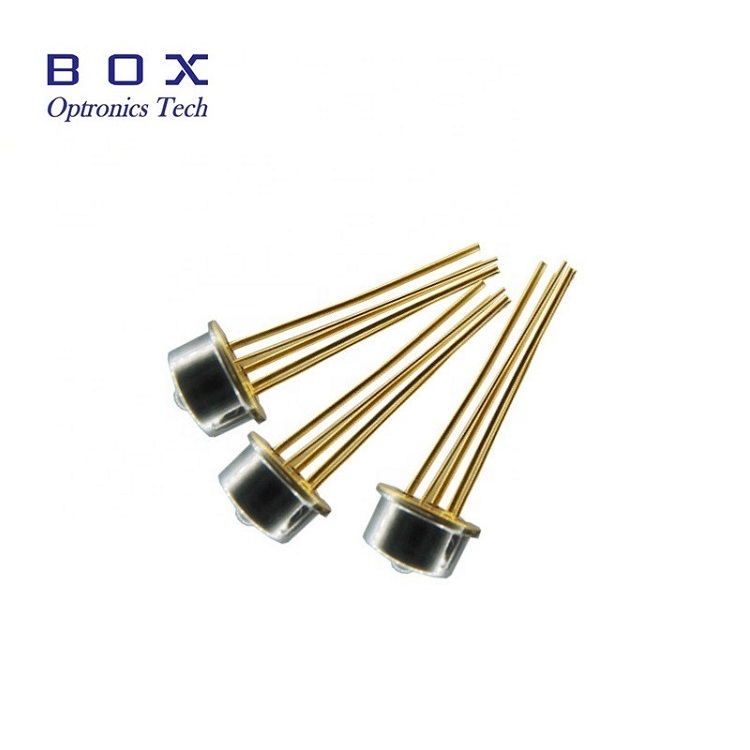

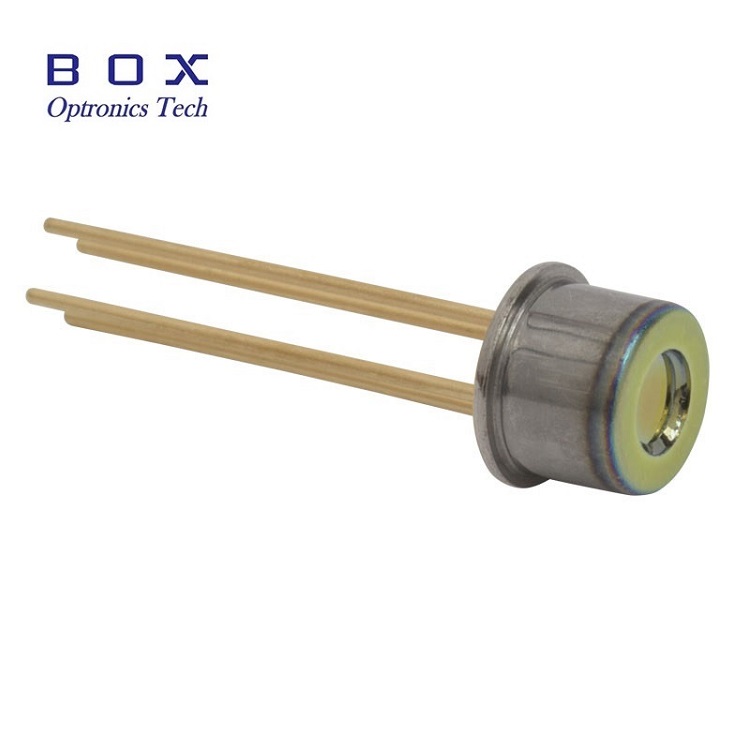

0.3mm Active Area InGaAs photodiodes for near-infrared light detection. Features include high speed, high sensitivity, low noise, and spectral responses ranging from 1100nm to 1650nm Suitable for a wide range of applications including optical communication, analysis, and measurement.

Send Inquiry

Product Description

1. Summary of 0.3mm Active Area InGaAs photodiodes

The 0.3mm Active Area InGaAs photodiodes for near-infrared light detection. Features include high speed, high sensitivity, low noise, and spectral responses ranging from 1100nm to 1650nm Suitable for a wide range of applications including optical communication, analysis, and measurement.

2. Introduction of 0.3mm Active Area InGaAs photodiodes

The 0.3mm Active Area InGaAs photodiodes for near-infrared light detection. Features include high speed, high sensitivity, low noise, and spectral responses ranging from 1100nm to 1650nm Suitable for a wide range of applications including optical communication, analysis, and measurement.

3. Features of 0.3mm Active Area InGaAs photodiodes

Detect range 1100nm-1650nm;

Coaxial package;

Low dark current, Low capacitance;

High reliability, Long operation life.

4. Application of 0.3mm Active Area InGaAs photodiodes

Analog optical receiver;

Test equipment.

5. Electro-Optical Characteristics(T=25℃) of 0.3mm Active Area InGaAs photodiodes

Parameter Symbol Condition Min. Typ. Max. Unit
Wavelength range λ   1100 - 1650 nm
Active area φ - - 0.3 - mm
  Responsivity   R Vr=-5V, λ =1310nm 0.85 0.90 -   A/W
Vr=-5V, λ =1550nm 0.90 0.95 -
Dark current ID Vr=-5V - - 1 nA
Operating voltage V - - -5 - V
Rising time TR VR=5V, RL=50Ω - - 1.5 ns
Capacitance CPD VR=5V, φe=0, f=1MHz - - 20 pF

6. Package drawing&PIN-OUT Definition(Unit:mm) of 0.3mm Active Area InGaAs photodiodes

7. Deliver,Shipping And Serving of 0.3mm Active Area InGaAs photodiodes

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the active area would you like?

A: we have 0.3mm 0.5mm 1mm 2mm active area InGaAs PIN Photodiode.

Q: What is the requirement for the connector?

A: Box Optronics can customize according to your requirements.
