The 1mm InGaAs/InP PIN Photodiode Chip offer superb response from 900nm to 1700nm, 1mm InGaAs/InP PIN Photodiode Chip is ideal for high bandwidth 1310nm and 1550nm optical networking applications. The device series offers high responsivity, low dark current and high bandwidth for high performance and low sensitivity receiver design. This device is ideal for manufacturers of optical receivers, transponders, optical transmission modules and combination PIN photo diode – transimpedance amplifier.
The 1mm InGaAs/InP PIN Photodiode Chip offer superb response from 900nm to 1700nm, 1mm InGaAs/InP PIN Photodiode Chip is ideal for high bandwidth 1310nm and 1550nm optical networking applications. The device series offers high responsivity, low dark current and high bandwidth for high performance and low sensitivity receiver design. This device is ideal for manufacturers of optical receivers, transponders, optical transmission modules and combination PIN photo diode – transimpedance amplifier.
The 1mm InGaAs/InP PIN Photodiode Chip offer superb response from 900nm to 1700nm, 1mm InGaAs/InP PIN Photodiode Chip is ideal for high bandwidth 1310nm and 1550nm optical networking applications. The device series offers high responsivity, low dark current and high bandwidth for high performance and low sensitivity receiver design. This device is ideal for manufacturers of optical receivers, transponders, optical transmission modules and combination PIN photo diode – transimpedance amplifier.
Detect range 900nm-1650nm;
High speed;
High responsivity;
Low capacitance;
Low dark current;
Top illuminated planar structure.
Monitoring;
Fiber-optic Instruments;
Data Communications.
| Parameter | Symbol | Value | Unit |
| Reverse voltage | VRmax | 20 | V |
| Operating temperature | Topr | -40 to +85 | ℃ |
| Storage temperature | Tstg | -55 to +125 | ℃ |
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Wavelength range | λ | 900 | - | 1650 | nm | |
| Responsivity | R | λ =1310nm | 0.85 | 0.90 | - | A/W |
| λ =1550nm | - | 0.95 | - | |||
| λ =850nm | - | 0.20 | - | |||
| Dark current | ID | Vr=5V | - | 1.5 | 10.0 | nA |
| Capacitance | C | VR=5V, f=1MHz | - | 50 | 80 | pF |
| Bandwidth (3dB down) | Bw | V=0V, RL =50Ω | - | 40 | - | MHz |
| Parameter | Symbol | Value | Unit |

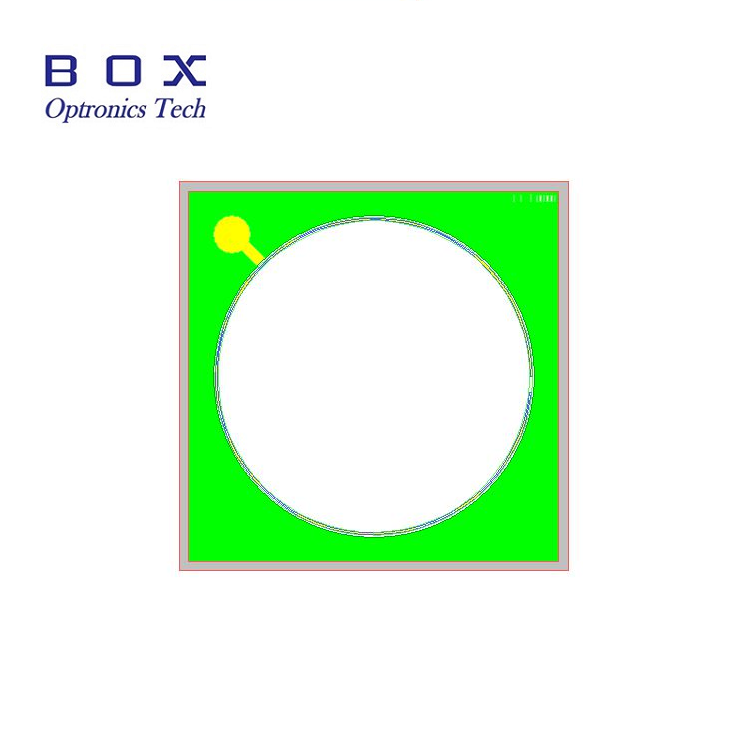

| Active area diameter | D | 1000±10 | um |
| Bond pad diameter | - | 120±3 | um |
| Die size | - | 1250x1250 (±30) | um |
| Die thickness | t | 180±20 | um |
