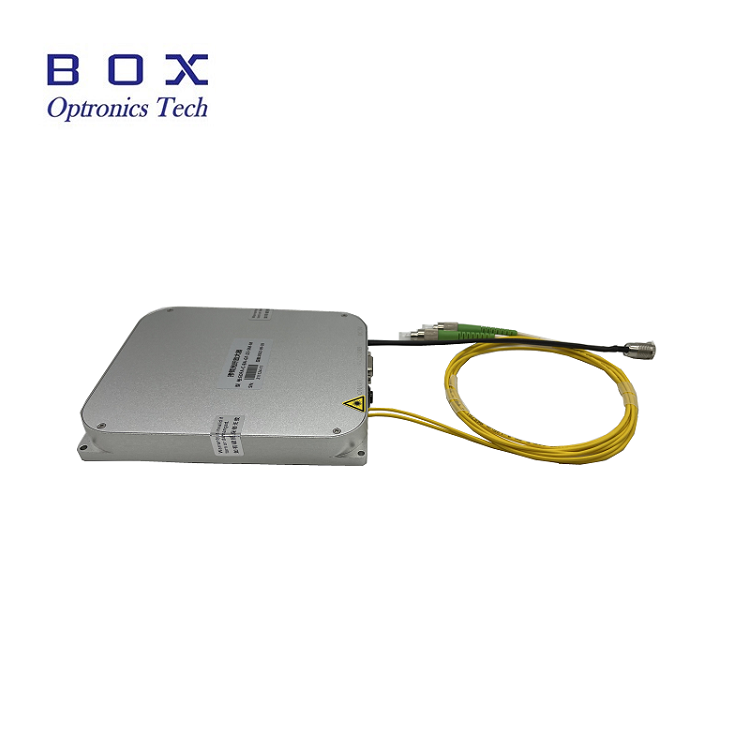

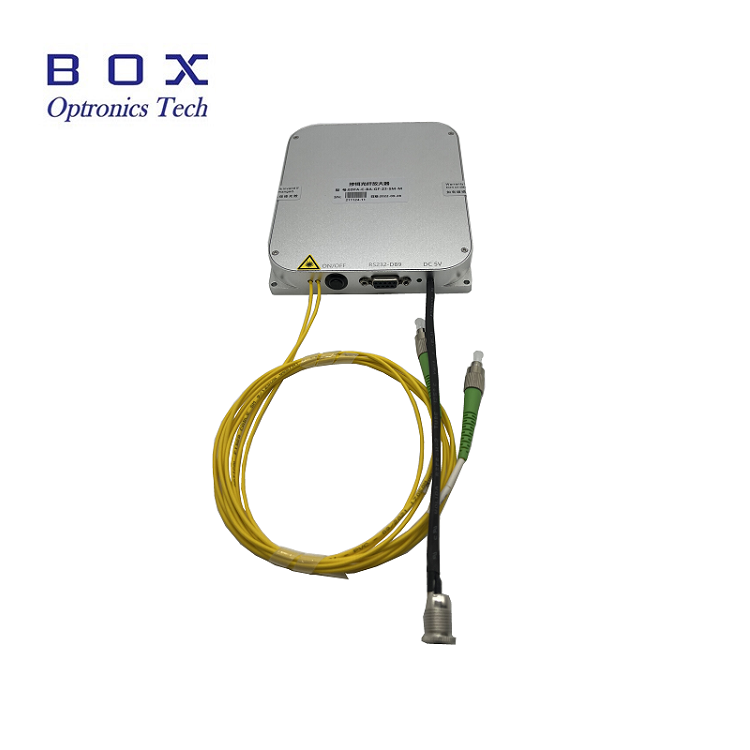

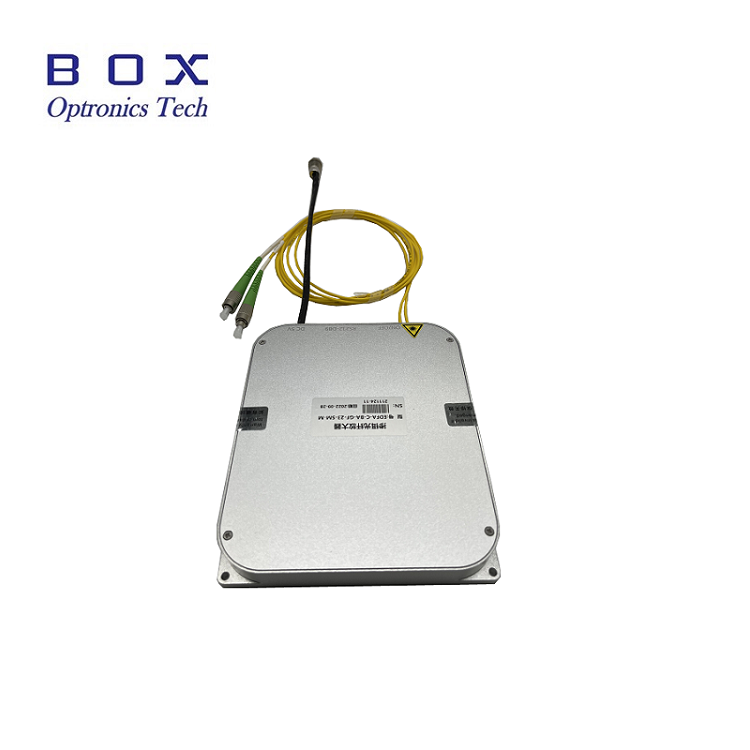

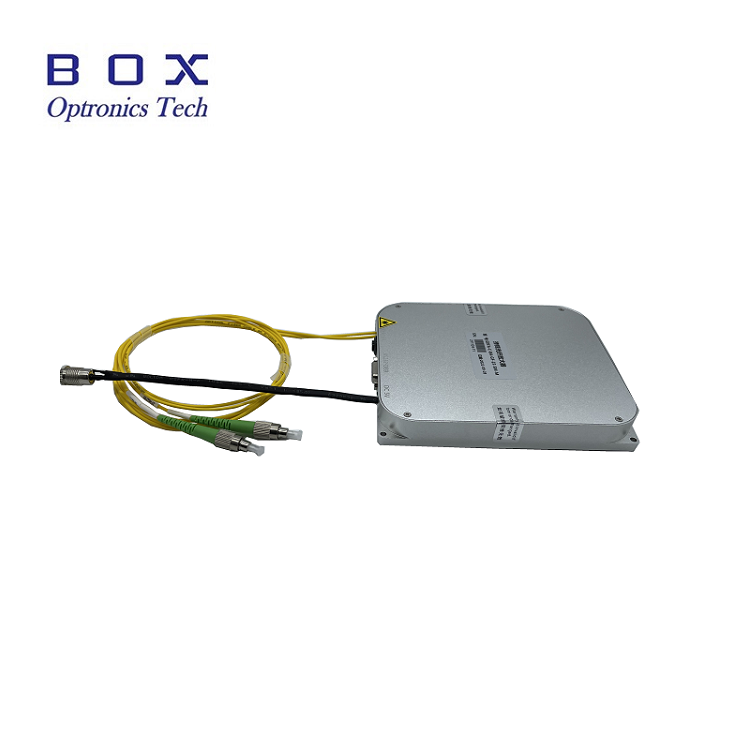

Pulsed Erbium-doped Fiber Amplifier For Optical Sensor outputs high-power laser pulses while minimizing fiber nonlinear effects, and has the advantages of high gain and low noise. Support the software control of the host computer.
The pulsed erbium-doped fiber amplifier is a fiber amplifier product series dedicated to picosecond and nanosecond laser pulses. It outputs high-power laser pulses while minimizing fiber nonlinear effects, and has the advantages of high gain and low noise. Support the software control of the host computer.
Short pulse amplification;
High peak power;
Customizable parameters.
Lidar;
Optical fiber sensor;
Fiber laser.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1530~1565 | *Optional narrow band filter |
| Pulse width | ns | 0.1~50 | |
| Pulse frequency | KHz | 1~1000 | |
| Peak value of input pulse | mW | 1~10 | |
| Peak value of output pulse | W | 1~1000 | |
| Noise figure | dB | 5.5 | |
| Gain flatness | dB | 3 | |
| Polarization dependent gain | dB | 0.5 | |
| Polarization mode dispersion | ps | 0.5 | |
| Input/Output isolation | dB | >35 | |
| Fiber type | - | SMF-28e | |
| Connector | - | FC/APC | |
| Operating mode | - | Automatic current control(ACC) | |
| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop |
| 125(W)×150(D)×20(H) | Module | ||
| Power supply | V | AC 110~240V, <30W@25℃ | Benchtop |
| 5V DC, <15W | Module | ||
| Control mode | - | RS232 Serial communication | Module |
| Communication Interface | - | DB9 Female | Module |
| Operating temperature | ℃ | -5~ +55 | |
| Operating humidity range | % | 0~70 |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band or L band wavelength.
Q: What output power would you like?A: We have 100W 200W 500W 1000W options, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
