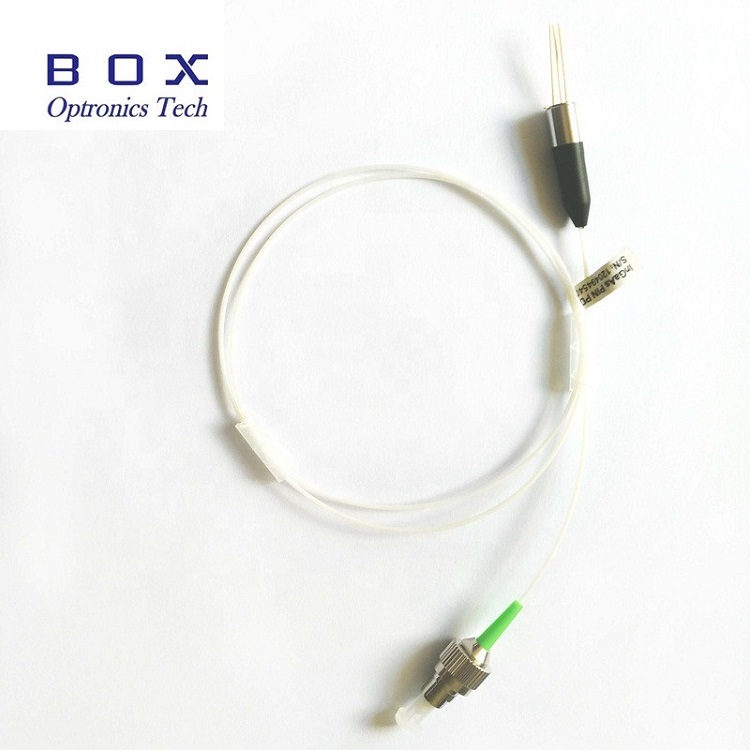

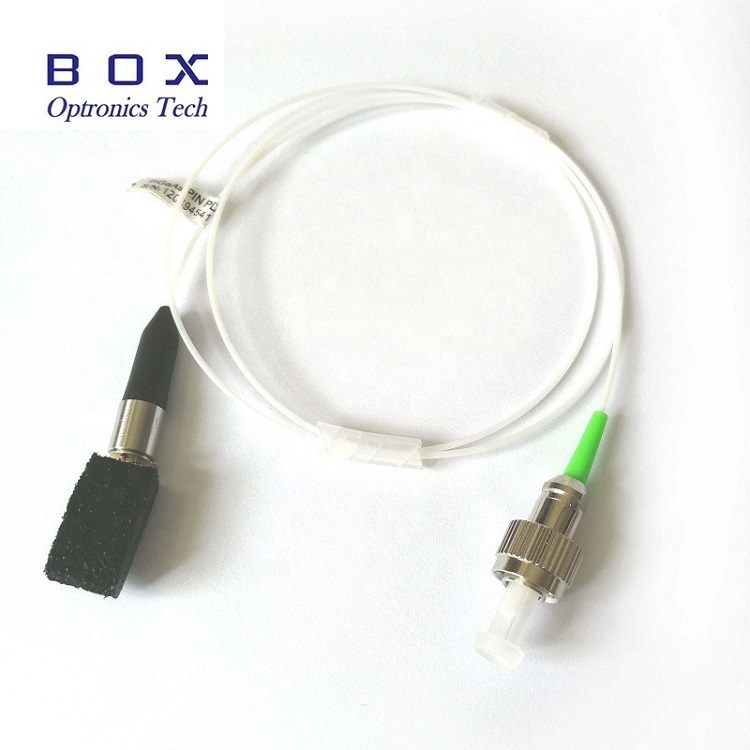

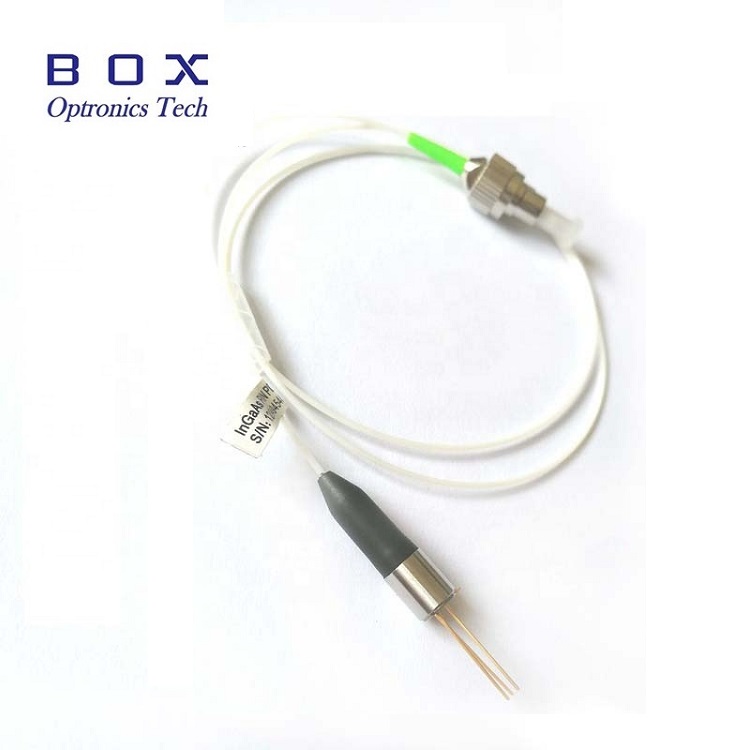

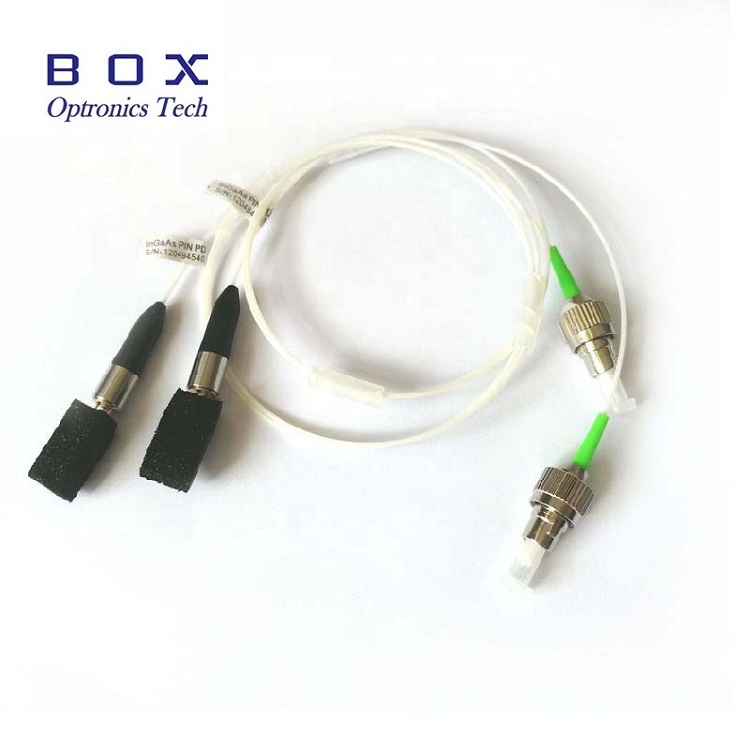

InGaAs Pigtailed Photodiodes coupled multimode fiber, with a core diameter of 50µm or 62.5µm selectable, and a detection wavelength range of 900-1700nm.
InGaAs Pigtailed Photodiodes coupled multimode fiber, with a core diameter of 50µm or 62.5µm selectable, and a detection wavelength range of 900-1700nm.
Detect range 900nm-1700nm;
Fiber type 50um or 62.5um fiber;
Active area 300/500um;
High reliability, Long operation life;
Optional FC/PC or FC/APC connector.
Analog optical receiver;
Test equipment.
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Wavelength range | λ | 900 | - | 1700 | nm | |
| Responsivity | R | Vr=5V, λ =1310nm | 0.85 | 0.90 | - | A/W |
| Vr=5V, λ =1550nm | 0.90 | 0.95 | - | |||
| Dark current | ID | Vr=5V | - | 0.2 | 0.5 | nA |
| Capacitance | C | Vr=5V, f=1MHz,case open | - | 0.6 | 0.75 | pF |
| Rise time/Fall time | TR/TF | Vr=5V, 10~90% | - | - | 0.3 | ns |
| Bandwidth | BW |
Vr=5V, 50Ωload with lead length=6mm,case open |
2.5 | - | - | GHz |
| Composite second order beat | CSO | - | - | -70 | - | dB |
| Composite third order beat | CTB | - | - | -80 | - | dB |
| Operating voltage | V | - | - | -5 | - | V |
| Optical return loss | ORL | λ =1310nm | - | 45 | - | dB |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.

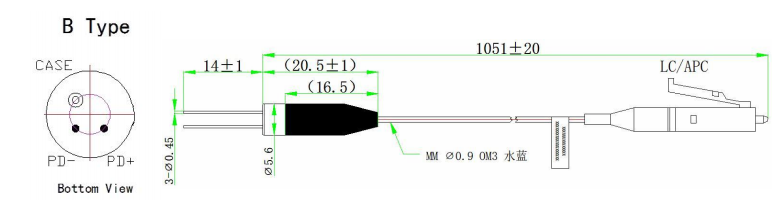

A: A type, B type or other.
Q: What is the requirement for the connector?A: Box Optronics can customize according to your requirements.
