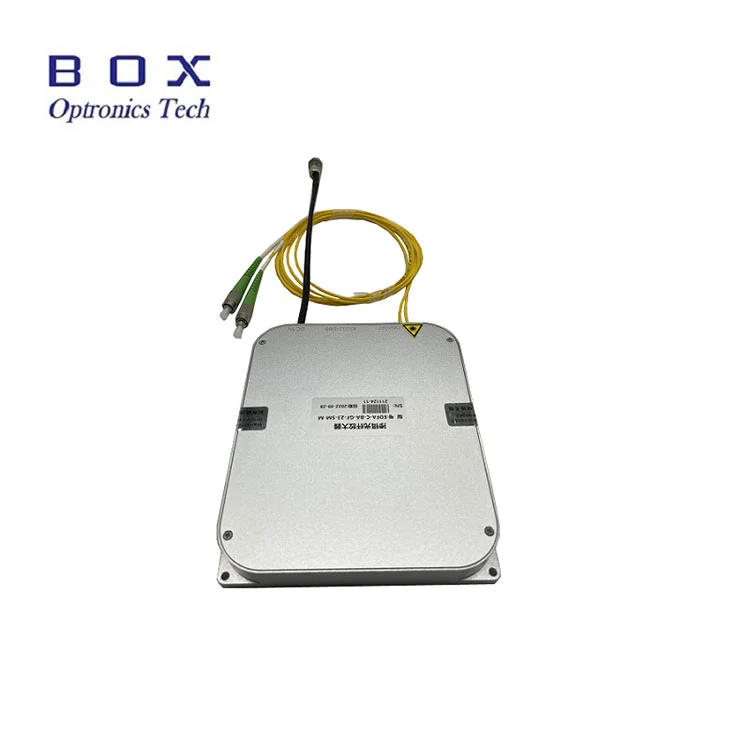

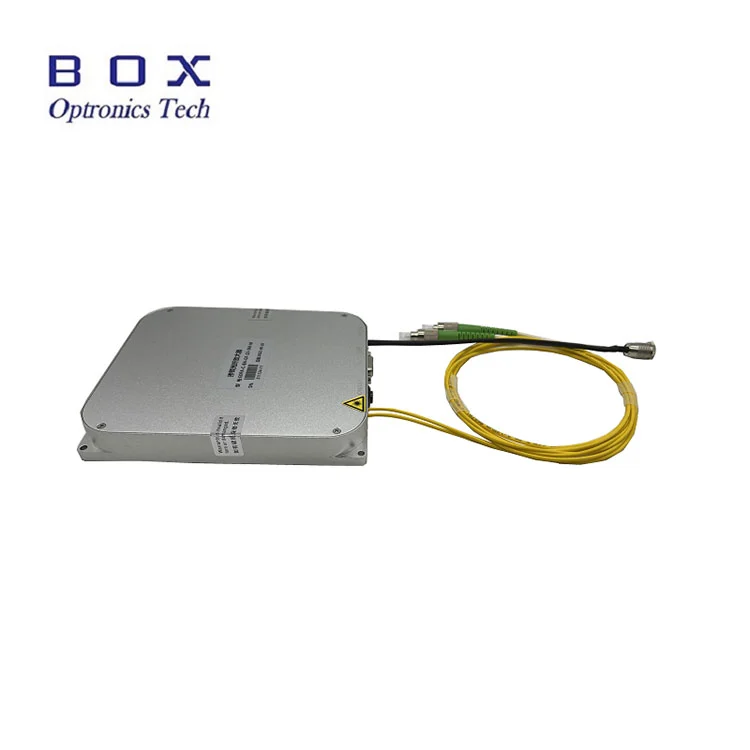

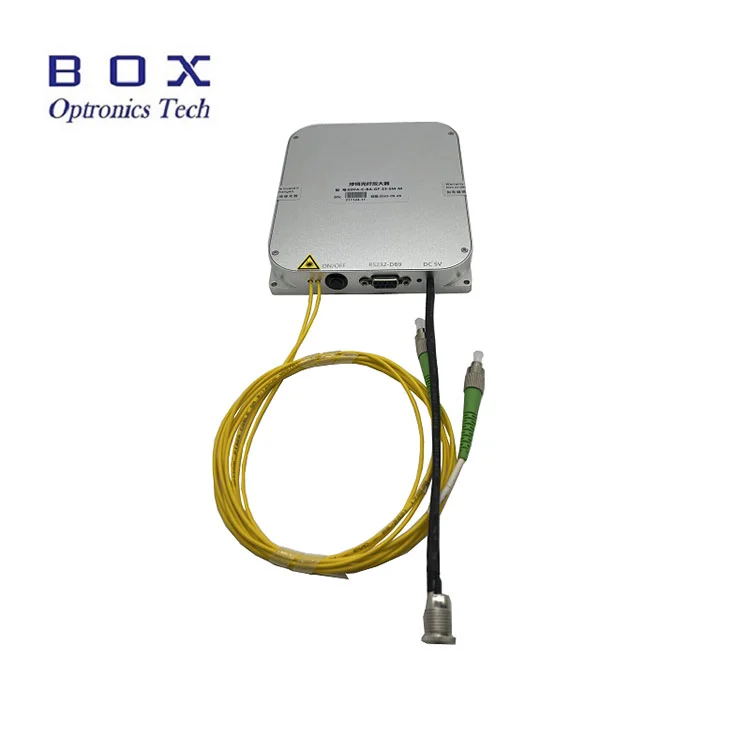

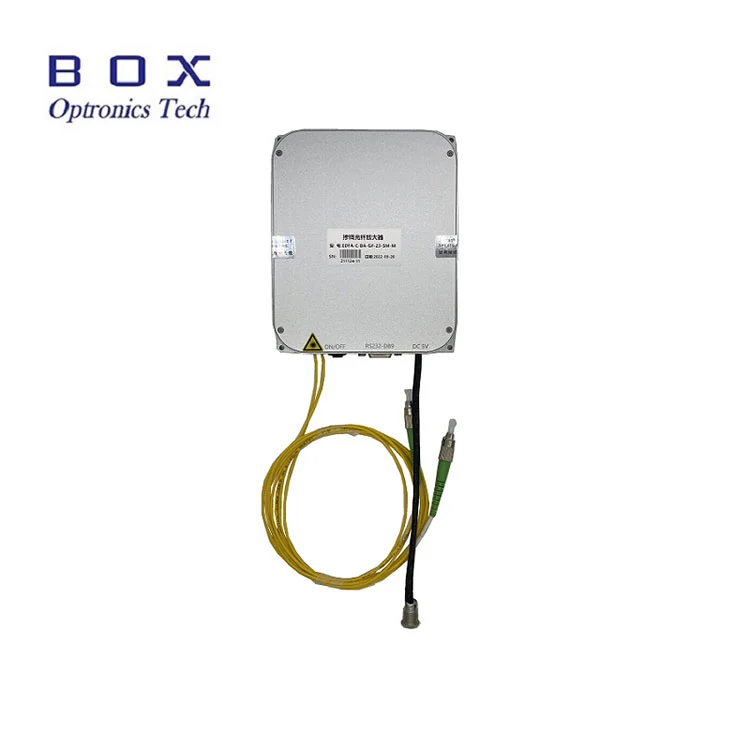

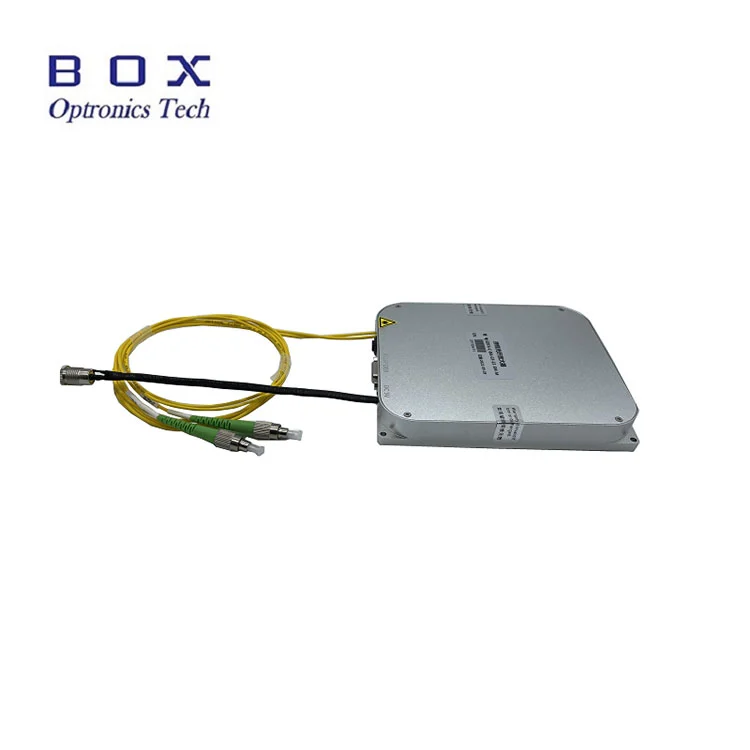

1920~2020nm Thulium-doped Fiber Amplifier(TDFA) can be used to amplify 2um band laser signals in the power range of -10dBm~+10dBm. The saturated output power can reach up to 40dBm. It is often used to increase the transmission power of laser light sources.
1920~2020nm Thulium-doped Fiber Amplifier(TDFA) can be used to amplify 2um band laser signals in the power range of -10dBm~+10dBm. The saturated output power can reach up to 40dBm. It is often used to increase the transmission power of laser light sources.
● Wide wavelength range
● High output power
● Low noise index
● Fiber-optic communication
● Fiber-optic sensing
● Fiber laser
| Parameter | Unit | Typical | Notes |
| Wavelength range | nm | 1920~2020 | customized |
| Input power | dBm | -10~10 | |
| Saturation optical power | dBm | 20/23/25/26/27/30/33/37/40 | @0dBm input |
| Noise Figure | dB | ≤5.0 | @0dBm input |
| Polarization Dependent | dB | ≤0.3 | |
| Polarization Extinction Ratio | ps | ≤0.5 | |
| IN/OUT Isolation | dB | >35 | |
| Power monitoring | - | Output optical power monitoring | |
| Fiber type | - | SMF-28; SMF-1950 | |
| Fiber connect type | - | FC/APC | - |
| Working mode | - | ACC/APC | - |
| Parameter | Benchtop | Module | |
| Control method | Touch screen/RS232 | RS232 | |
| Communication interface | DB9 Female | DB9 Female | |
| Power supply | 100~240V AC, <30W | 12V DC, <60W | |
| Dimensions | 376(W)×340(D)×112(H) mm | 39(W)×235(D)×70(H)mm | |
| Operating Temperature | -5~+35°C | ||
| Operating humidity | 0~70% | ||
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What fiber amplifiers do you provide?
A: EDFA/ YDFA/ TDFA/ FRA/ SOA
Q: I need other wavelengths you don't refer to.
A: Please check with us if it's customized.
