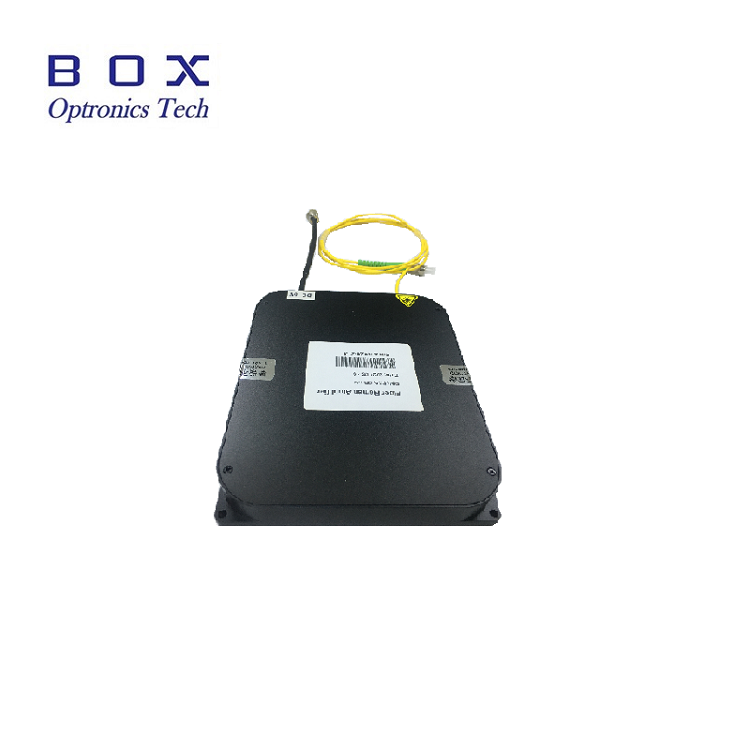

Wavelength Mutil-mode Fiber Coupled Pump Laser Module

Wavelength Mutil-mode Fiber Coupled Pump Laser Module is suitable for medical research, fiber laser pumping and other production tests.

Send Inquiry

Product Description

1. Introduction of Wavelength Mutil-mode Fiber Coupled Pump Laser Module

MHPL-XXX High-power laser light source is based on high-performance semiconductor laser chip, using professionally designed constant current drive and TEC control to ensure safe and stable laser operation, 105/125um fiber coupling output. Power fluctuation <3%, spectral stability is better than ±3nm. It is suitable for medical research, fiber laser pumping and other production tests.

2. Feature of Wavelength Mutil-mode Fiber Coupled Pump Laser Module

High output power;

Power and spectral stability;

Module or Benchtop package;

Color LCD status display.

3. Application of Wavelength Mutil-mode Fiber Coupled Pump Laser Module

Medical research;

Material handling;

Fiber laser pumping.

4. Optical-Electrical Characteristic of Wavelength Mutil-mode Fiber Coupled Pump Laser Module

Parameters Unit Values Notes
Operating wavelength nm 793±3, 808±3, 915±10, 976±3
Spectral width nm 3, 6
Output power W 5, 10, 25
Power instability
(Short-term 15mins)
dB ≤0.05(1%)
Power instability
(Long-term 8hours)
dB ≤0.1(3%)
Connector - Bare fiber or collimator
Fiber type - 105/125μm, 0.22NA
Dimensions mm 260(W)×320(D)×120(H) Benchtop
150(W)×125(D)×30(H) Module
Power supply V AC 110~240V Benchtop
DC 5V/4A Module
Power dissipation W ≤ 60
Communication interface - DB9  Female(RS232)
Operating temperature -20 ~ +50
Storage temperature -20 ~ +70

5. Deliver,Shipping And Serving of Wavelength Mutil-mode Fiber Coupled Pump Laser Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

Wavelength Mutil-mode Fiber Coupled Pump Laser Module

6. FAQ

Q: What is the wavelength would you like?

A: We have 793nm 808nm 915nm and 976nm options.

Q: What is the requirement for the output power?

A: We have 5W 10W and 25W options, we can also customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
