Hi1060 Fiber Coupled 1310nm Fiber Laser Module

Welcome to buy Hi1060 Fiber Coupled 1310nm Fiber Laser Module from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

1. Introduction of Hi1060 Fiber Coupled 1310nm Fiber Laser Module

1310nm single wavelength laser source adopts DFB semiconductor laser chip, single-mode fiber output, professional design of driving circuit and TEC control to ensure the safe and stable operation of laser.

2. Feature of Hi1060 Fiber Coupled 1310nm Fiber Laser Module

High output power;

Power and spectral stability;

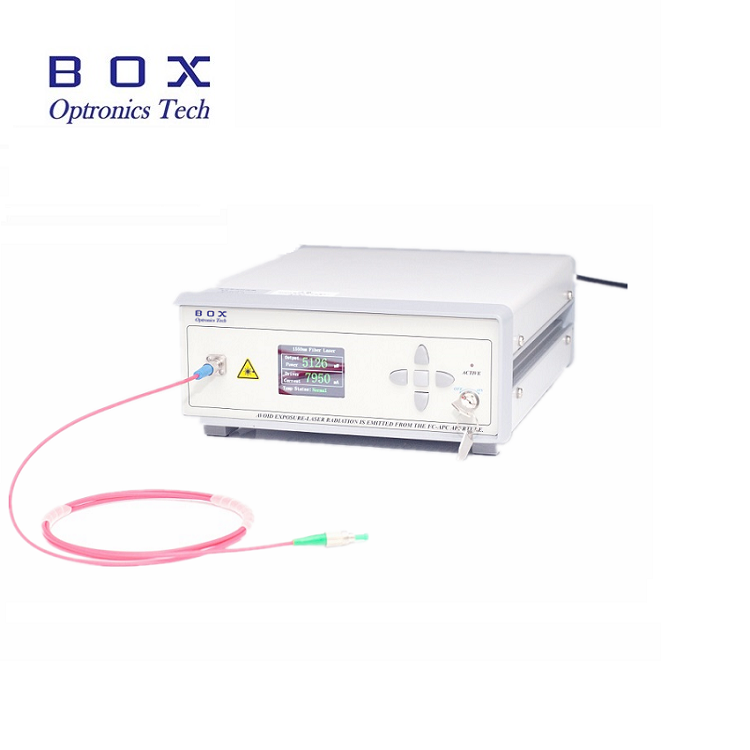

Benchtop or Module package.

3. Application of Hi1060 Fiber Coupled 1310nm Fiber Laser Module

Seed light source;

Fiber laser;

Research on nonlinear optics.

4. Optical-Electrical Characteristic of Hi1060 Fiber Coupled 1310nm Fiber Laser Module

Parameters Unit Values Notes
Operating wavelength nm 1310±0.5
Output power mW 10/20 Customizable
Spectral linewidth MHz ≤ 3
Side mode suppression ratio dB > 50
Power instability
(Short-term 15mins)
dB ≤±0.02
Power instability
(Long-term 8hours)
dB ≤±0.05
Connector - FC/APC
Fiber type - SMF-28e
Dimensions mm 260(W)×280(D)×120(H) Benchtop
90(W)×70(D)×15(H) Module
Power supply V AC 110~240V Benchtop
DC 5V/4A Module
Communication interface - DB9  Female(RS232)
Operating temperature -20 ~ +65
Storage temperature -40 ~ +85

5. Typical Characteristic Curve of Hi1060 Fiber Coupled 1310nm Fiber Laser Module

6. Deliver,Shipping And Serving of Hi1060 Fiber Coupled 1310nm Fiber Laser Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

7. FAQ

Q: What is the wavelength would you like?

A: We have 1270nm-1610nm option.

Q: What is the requirement for the output power?

A: We have 10mW 20mW options, we can also customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
