974nm 976nm Pump Laser Module

As the professional manufacture, we would like to provide you 974nm 976nm Pump Laser Module. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

1. Introduction of 974nm 976nm Pump Laser Module

980nm laser source adopts butterfly semiconductor laser chip with fiber FBG frequency lock, professionally designed drive circuit and TEC control to ensure safe operation of the laser, stable output power and spectrum. Suitable as a pump laser source for fiber lasers or EDFA fiber amplifiers, it can be provided in a desktop or modular package.

2. Feature of 974nm 976nm Pump Laser Module

High output power;

Power and spectral stability;

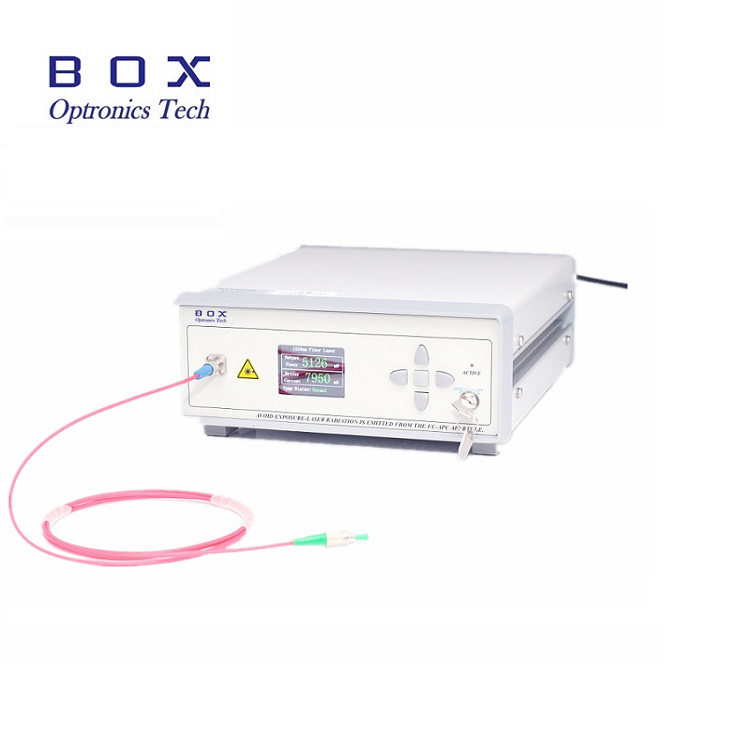

Module or Benchtop package;

Color LCD status display.

3. Application of 974nm 976nm Pump Laser Module

Fiber laser pumping;

Erbium-doped fiber amplifier;

Nonlinear optics research.

4. Optical-Electrical Characteristic of 974nm 976nm Pump Laser Module

Parameters Unit Values Notes
Operating wavelength nm 974, 976
Output power mW 200-680
Power instability
(Short-term 15mins)
dB ≤0.02
Power instability
(Long-term 8hours)
dB ≤0.05
Connector - FC/APC
Fiber type - Hi1060/PM980
Dimensions mm 260(W)×320(D)×120(H) Benchtop
150(W)×125(D)×30(H) Module
Power supply V AC 110~240V Benchtop
DC 5V/4A Module
Power dissipation W ≤ 60
Operating temperature -20 ~ +65
Storage temperature -40 ~ +85

5. Typical Characteristic Curve of 974nm 976nm Pump Laser Module

6. Deliver,Shipping And Serving of 974nm 976nm Pump Laser Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

7. FAQ

Q: What is the wavelength would you like?

A: 974nm or 976nm wavelength.

Q: What is the requirement for the output power?

A: We have 200mW 400mW 600mW options, we can also our customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
