Multi Mode Fiber Coupled High Power Pump Laser source is based on a high-performance semiconductor laser chip with a 105/125µm fiber-coupled output..Professionally designed constant-current drive and temperature control circuits ensure safe and stable laser operation. Select models feature wavelength locking, achieving spectral stability better than ±3nm. It is suitable for medical research, fiber laser pumping, and other production testing applications. Available in desktop or modular packages, it comes with host computer monitoring software.
With the widespread use of plastic products, such as daily chemical products and The MHPL-XXX high-power laser source is based on a high-performance semiconductor laser chip with a 105/125µm fiber-coupled output..Professionally designed constant-current drive and temperature control circuits ensure safe and stable laser operation. Select models feature wavelength locking, achieving spectral stability better than ±3nm. It is suitable for medical research, fiber laser pumping, and other production testing applications. Available in desktop or modular packages, it comes with host computer monitoring software.
● High output power
● High stability;
● Module or desktop package
● Fiber laser pumping
● Biomedicine
● Material laser processing
| Parameter | Unit | Typical | Remark | |

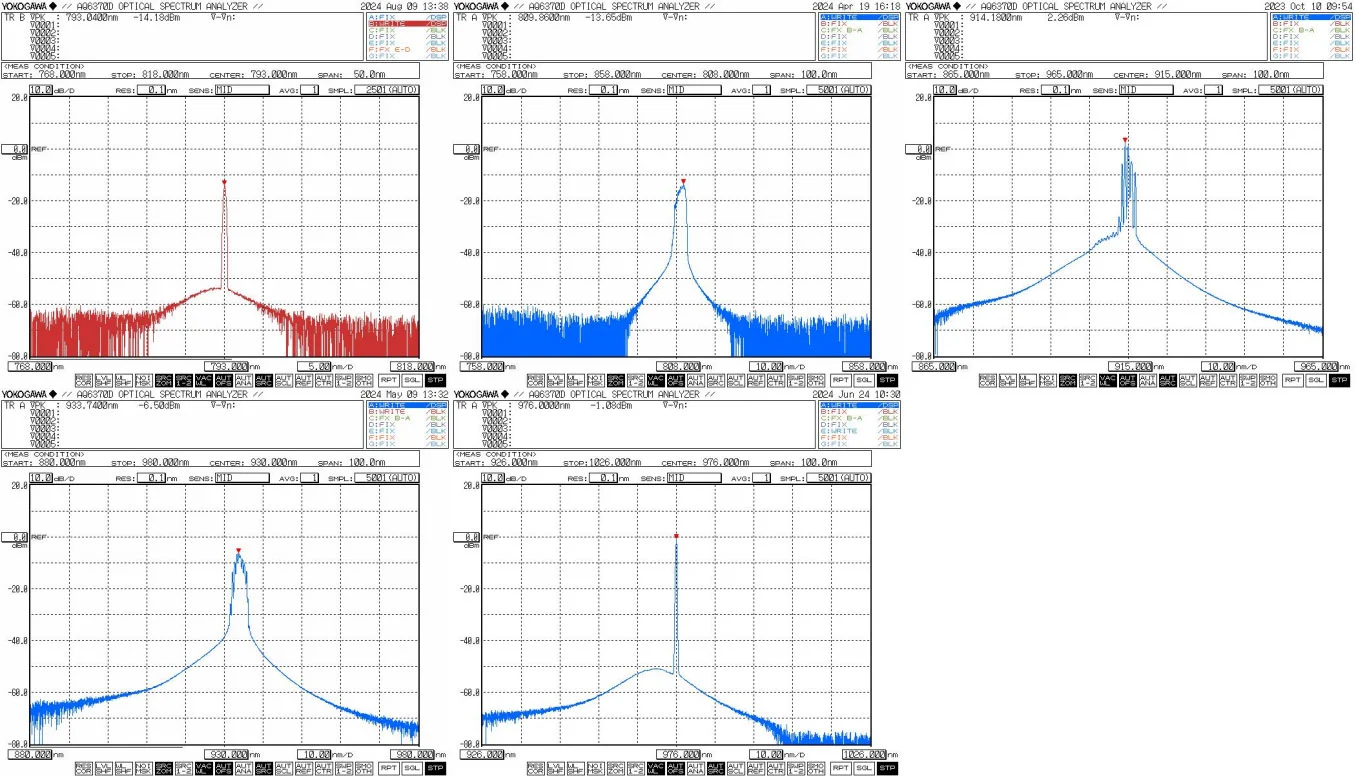

| Operating wavelength | nm | 793/808/976±3nm | 915/940±10nm | |
| Spectral width | - | 3 | 6 | Continuous light |
| Working Mode | - | CW | Continuous light | |
| Output power | W | 5/10/25 | Customizable | |
| Power adjustment range | - | 10~100% | ||
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% | |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% | |
| Fiber type | - | 105/125um multi module fiber, NA=0.22 | Random polarization | |
| Pigtail Connector Type | - | Bare | Optional fiber collimator | |
| Dimension | mm | 260(W)×320(D)×120(H) | Benchtop | |
| 125(W)×150(D)×31.5(H) | Module | |||
| Power supply | V | 100~240V AC, <120W | Benchtop | |
| 12V DC, <60W | Module | |||
| Communication Interface | - | DB9 Female(RS232) | ||
| Operating temperature | ℃ | -5~+35°C | ||
| Humidity temperature | ℃ | -0 ~ +70% | ||
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 980nm 1030nm 064nm ASE broadband light source
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
