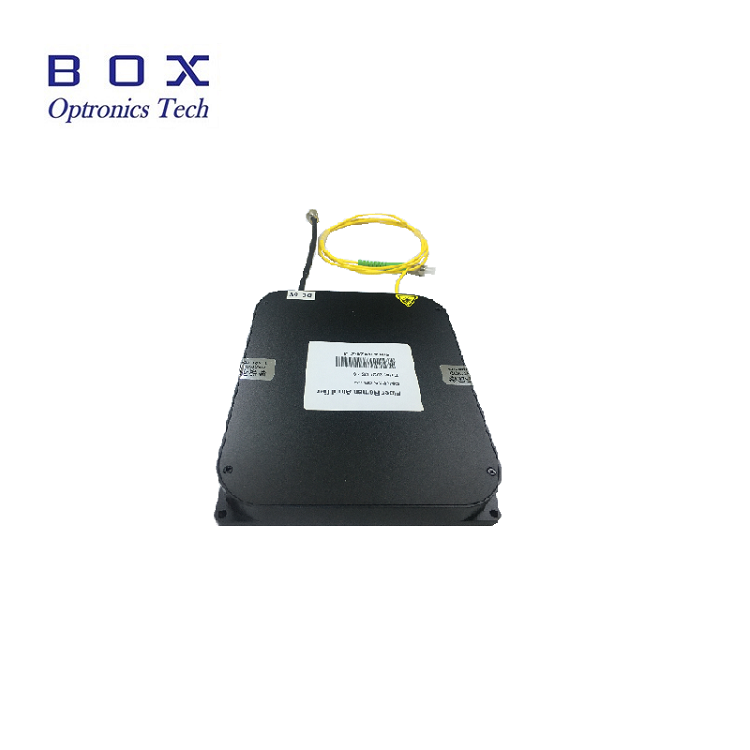

High Reliability L-band Tunable Fiber Laser Module For DWDM System

High Reliability L-band Tunable Fiber Laser Module For DWDM System can be used in fiber laser, fiber link, optical device testing and other fields.

Send Inquiry

Product Description

1. Introduction of High Reliability L-band Tunable Fiber Laser Module For DWDM System

The wavelength tuning range of this light source covers the L-band and realizes continuous laser output of up to 64 wavelengths (ITU-T standard wavelength, wavelength interval 100GHz). The integrated dual FP cavity tuning etalon and high gain chip with high output optical power, narrow linewidth and high wavelength accuracy. Equipped with dedicated drive control circuit, high-definition color LCD screen, and optional host computer software, users can easily do accurate tuning of wavelength. It can be used in DWDM system research and development, fiber laser, fiber link, optical device testing and other fields.

2. Feature of High Reliability L-band Tunable Fiber Laser Module For DWDM System

64 Wavelengths;

High power stability;

High side mode suppression ratio;

Excellent relative intensity noise.

3. Application of High Reliability L-band Tunable Fiber Laser Module For DWDM System

DWDM system;

Optical fiber link;

Optical device test.

4. Optical-Electrical Characteristic of High Reliability L-band Tunable Fiber Laser Module For DWDM System

Parameters Unit Min. Typ. Max. Notes
Wavelength tuning range nm 1554.94 - 1607.46 ITU standard
Frequency tuning range THz 192.8 - 186.5
Channel spacing GHz - 100 - Equivalent 0.8nm
Side mode suppression ratio dB - 50 -
Wavelength channels - - 64 -
Output power mW - 8 - Customizable
Power instability dB - 0.3 0.5 Full wavelength
room temperature
- 0.3 0.3 Single wavelength full temperature
- 0.02 0.05 Single wavelengthroom temperature
Channel No. - C28 - L65 -
Channel switching time ms - 10 15 -
Connector - FC/APC
Fiber type - SMF-28e
Dimensions mm 260(W)×280(D)×120(H) Benchtop
150(W)×125(D)×30(H) Module
Power supply V AC 110~240V, <30W Benchtop
DC 5V, <14W Module
Communication interface - DB9  Female(RS232)
Operating temperature -20 ~ +65
Storage temperature -40 ~ +85

5. Typical Characteristic Curve of High Reliability L-band Tunable Fiber Laser Module For DWDM System

High Reliability L-band Tunable Fiber Laser Module For DWDM System

*Note: the figure above only shows the wavelength tuning range, not multiple wavelengths output at the same time

6. Deliver,Shipping And Serving of High Reliability L-band Tunable Fiber Laser Module For DWDM System

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

High Reliability L-band Tunable Fiber Laser Module For DWDM System

7. FAQ

Q: What is the requirement for the output power?

A: We have 10mW 20mW and 100mW options, we can also customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type and benchtop for choice.
