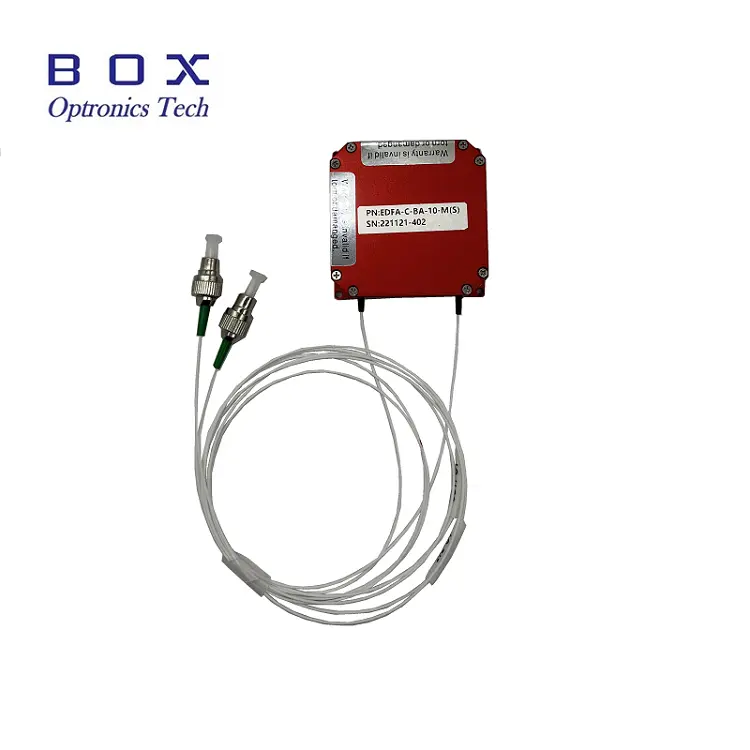

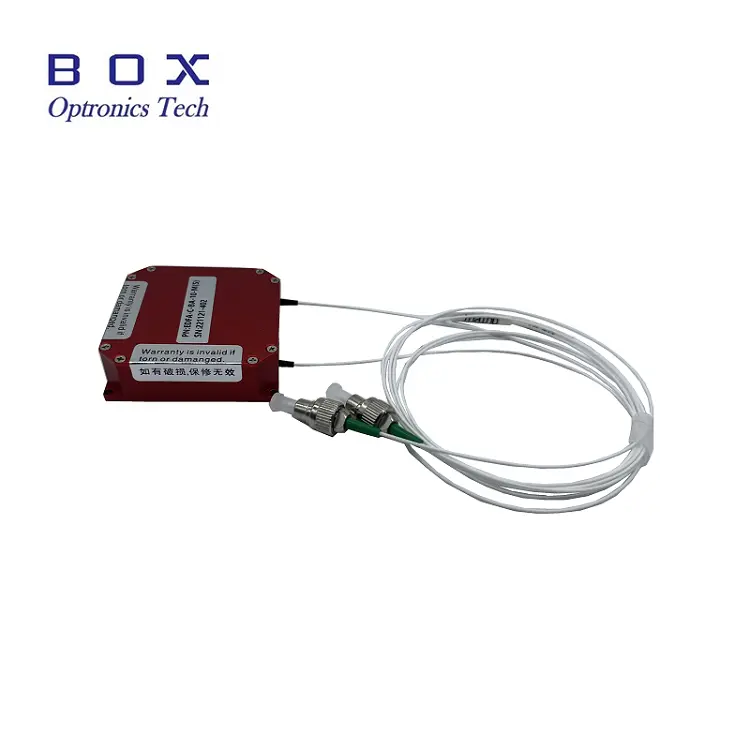

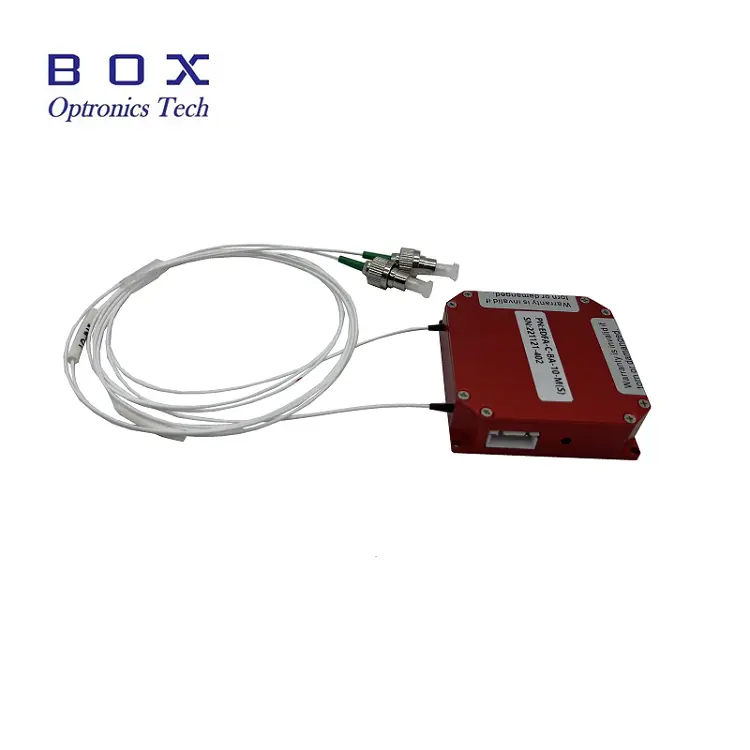

C-band ASE Broadband Light Source Micro-Module cover the C-band wavelength, with a flat spectrum and an optical power of 10~50mW. Due to the unique miniaturization design and micro packaging, suitable for applications in limited spaces.
● Wide spectrum;
● Spectral flatness;
● Ultra small size;
● High stability output power.
● Fiber sensing;
● Medical imaging;
● Fiber optic device testing.
| Parameter | Unit | Values | Notes | ||
| Spectral range | nm | 1528~1568 | |||
| Optical output power | mW | 10 | 20 | 50 | Non-adjustable |
| Power spectral density | dBm/nm | -6 | -3 | 1 | |

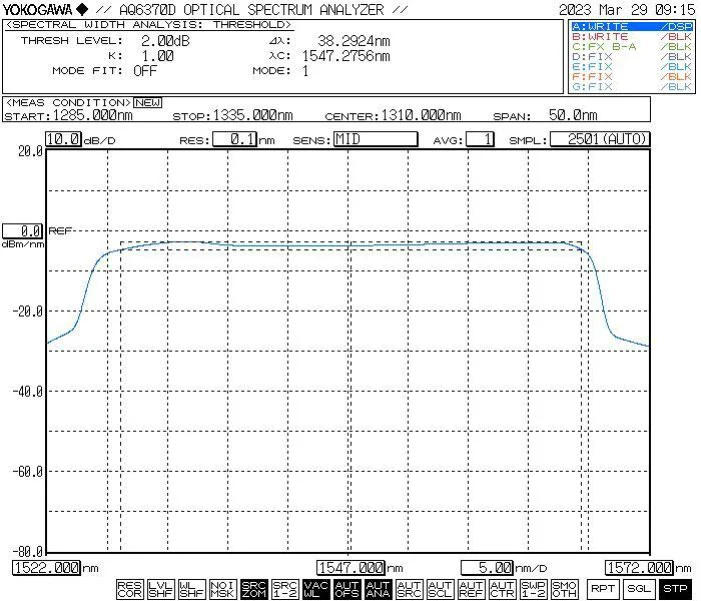

| Spectral flatness | dB | ≤2 | |||
| Output isolation | dB | ≥35 | |||
| Power instability | dB |
≤±0.02(15min.); ≤±0.05(8hrs) |
≤±0.5%; ≤±1.2% |
||
| PER | dB | ≤0.2 | |||
| Pigtail fiber | - | SMF-28 | FC/APC | ||
| Control mode | - | RS232 or TTL | |||
| Communication interface | - | PIN1~4: +5V/GND/TX/RX | ZH2.54-4PIN | ||
| Power supply | - | 5VDC, <10W | |||
| Dimensions | mm | 50(W)×50(D)×15(H) | |||
| Operating temperature | ℃ | -5 ~ +55 | |||
| Operating humidity | ℃ | 0~70% | |||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: Can the power be adjusted?
A: It's fixed. If you need power-adjustable, we can provide other types.
Q: I don't have a 5V power supply. How can I use it?
A: A power adapter will be provided.
