1060nm ASE Broadband Light Source For Fabrication of FBG Grating can be used in fiber device test, FBG grating writing system, etc.

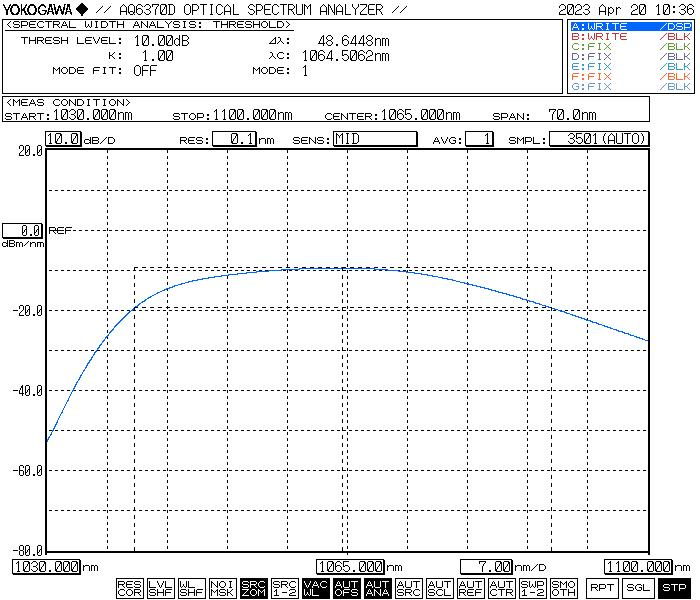

The broad-band light source is based on Ytterbium doped fiber and high-performance pump laser. ASE spectrum covers 1030-1060nm, with high output power and good flatness. It can be used in fiber device test, FBG grating writing system, etc.
Power stability;
Flat spectrum;
Remote monitoring.
Fiber optic sensing;
Medical imaging;
Fiber optic device testing.
| Parameters | Unit | Values | Notes |
| Operating wavelength | nm | 1030~1080 | 50nm@10dB |
| Output power | mW | 10/20 | Constant power |
| Spectral flatness | dB | 10 | |
| Output isolation | dB | 45 | |
|
Power instability (Short-term 15mins) |
dB | ≤±0.02 | |
|
Power instability (Long-term 8hours) |
dB | ≤±0.05 | |
| Degree of polarization | dB | ≤0.2 | |
| Connector | - | FC/APC | |
| Fiber type | - | Hi1060 | |
| Dimensions | mm | 260(W)×280(D)×120(H) | Benchtop |
| 150(W)×125(D)×20(H) | Module | ||
| Power supply | V | AC 110~240V, <30W | Benchtop |
| DC 5V, <15W | Module | ||
| Communication interface | - | DB9 Female(RS232) | |
| Operating temperature | ℃ | -5 ~ +55 | |
| Storage temperature | ℃ | -40 ~ +85 |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 10mW 20mW, we can also customize according to your requirement.
Q: About the package dimension, do you have any requirement?A: We have the module type and benchtop for choice.
