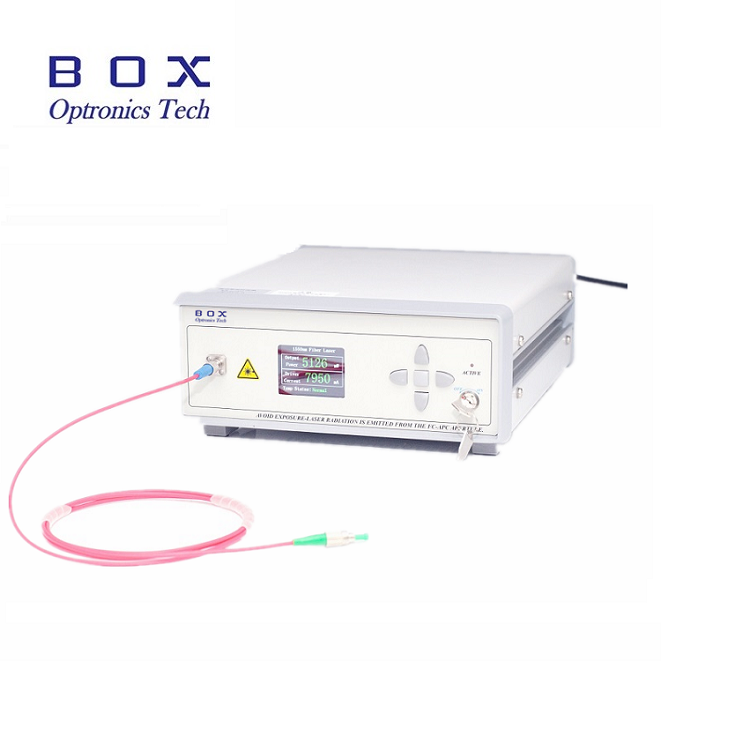

C-band 1550nm ASE Broadband Light Source For Medical Imaging Solution

As the professional manufacture, we would like to provide you C-band 1550nm ASE Broadband Light Source For Medical Imaging Solution. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

1. Introduction of C-band 1550nm ASE Broadband Light Source for Medical Imaging Solution

The optical fiber ASE broadband light source module uses spectral flattening technology, and with higher output power, and the operating wavelength covers the C band, which is suitable for applications such as optical fiber sensing. RS-232 interface and host computer software can be provided to facilitate the monitoring of the status of the light source module.

2. Feature of C-band 1550nm ASE Broadband Light Source for Medical Imaging Solution

Power stability;

Flat spectrum;

Remote monitoring.

3. Application of C-band 1550nm ASE Broadband Light Source for Medical Imaging Solution

Fiber optic sensing;

Medical imaging;

Fiber optic device testing.

4. Optical-Electrical Characteristic of C-band 1550nm ASE Broadband Light Source for Medical Imaging Solution

Parameters Unit Values Notes
Operating wavelength nm 1528~1563 C Band
Output power mW 10/20/50/100
Power adjustable(optional) - Adjustment range 10% ~ 100% Constant spectral flatness
Spectral flatness dB 1.5(Typ.), 2(Max.)
Output isolation dB >35
Power instability
(Short-term 15mins)
dB ≤±0.02
Power instability
(Long-term 8hours)
dB ≤±0.05
Degree of polarization dB ≤0.2
Connector - FC/APC
Fiber type - SMF-28e
Dimensions mm 260(W)×280(D)×120(H) Benchtop
150(W)×125(D)×20(H) Module
Power supply V AC 110~240V, <30W Benchtop
DC 5V, <15W Module
Communication interface - DB9  Female(RS232)
Operating temperature -5 ~ +55
Storage temperature -40 ~ +85

5. Product Details of C-band 1550nm ASE Broadband Light Source for Medical Imaging Solution

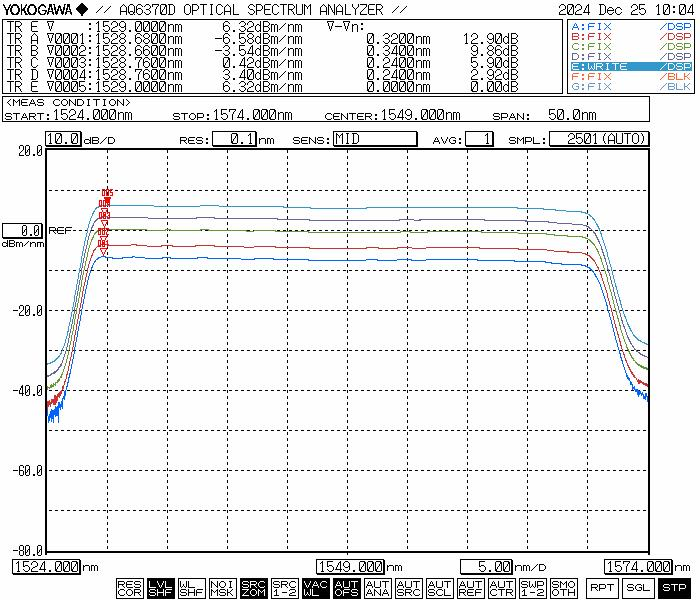

C-band ASE spectrum.

Power adjustable version C-band ASE spectrum (1 ~ 10MW adjustable)

6. Deliver,Shipping And Serving of C-band 1550nm ASE Broadband Light Source for Medical Imaging Solution

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

7. FAQ

Q: what is the wavelength you need?

A: C-band or L band wavelength.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.

Q: About the package dimension, do you haveany requirement?

A: We have the module type and benchtop for choice.
