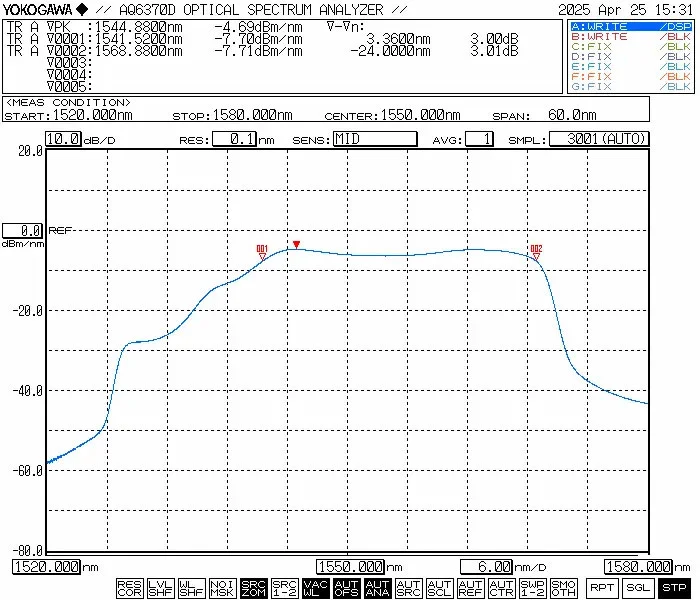

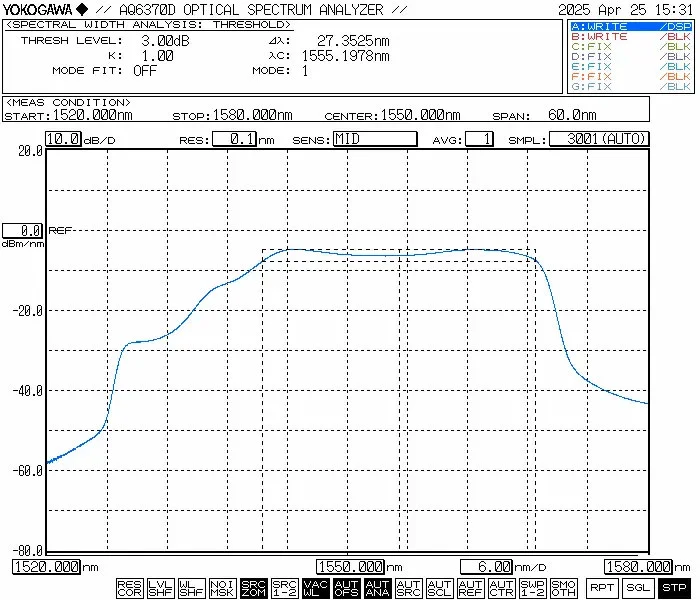

The C band 1W 2W High Power ASE Broadband Light Source is an incoherent light source, generated by spontaneous emission from erbium-doped fiber pumped by a semiconductor laser. The light source wavelength covers the C-band (1528nm-1568nm), with a spectral flatness of 20dB.
It is coupled to a single-mode fiber, with continuously adjustable power and optional linear polarization output from a polarization-maintaining fiber. It is suitable for applications such as fiber optic sensing and is available in a variety of packaging options.
● Spectral flatness;
● Power adjustable;
● High stable output power.
● Fiber Optic Sensing;
● Medical Imaging;
● Fiber Optic Device Testing.
| Parameter | Unit | Typical | Remark |
| Operating wavelength | nm | 1528~1568 | @20dB |
| Output power | mW | 1000/2000 | CW |
| Spectral power density | dBm/nm | 13/16 | |
| Power adjustment range | - | 10%~100% | Optional |
| Flatness | dB | <20 | |
| Spectral ripple | dB | ≤0.1 | |
| Output isolation | dB | >35 | |

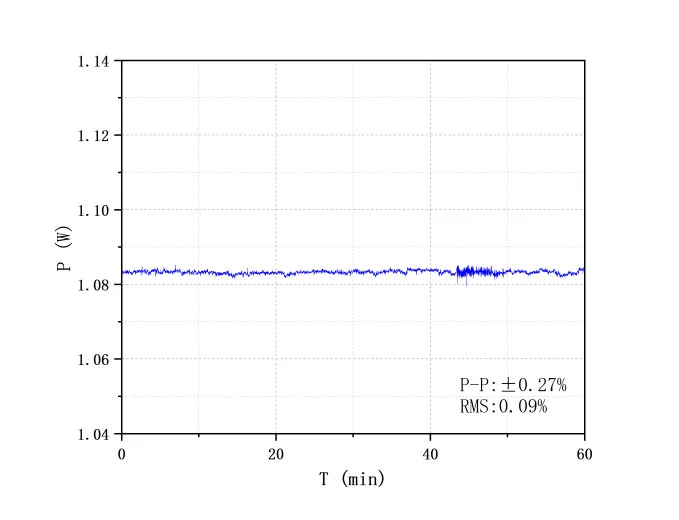

| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% |
| Polarization extinction ratio(PER) | dB | ≤ 0.2 | SM fiber |
| dB | ≥23 | PM fiber | |
| Fiber type | - | SMF-28 or PM1550 | SM fiber |
| Pigtail Connector Type | - | FC/APC | Customizable |

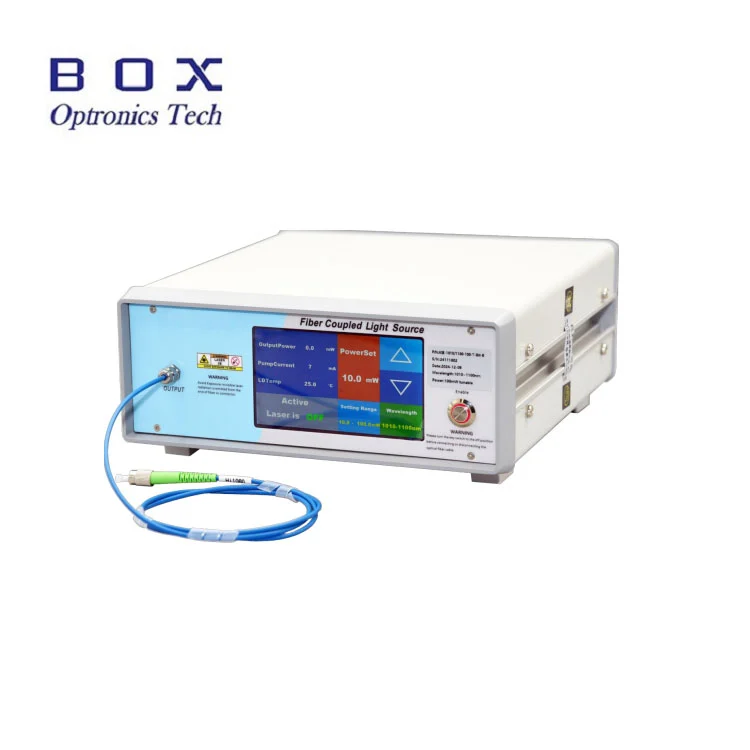

| Dimension | mm | 376(W)×340(D)×112(H) | Benchtop |

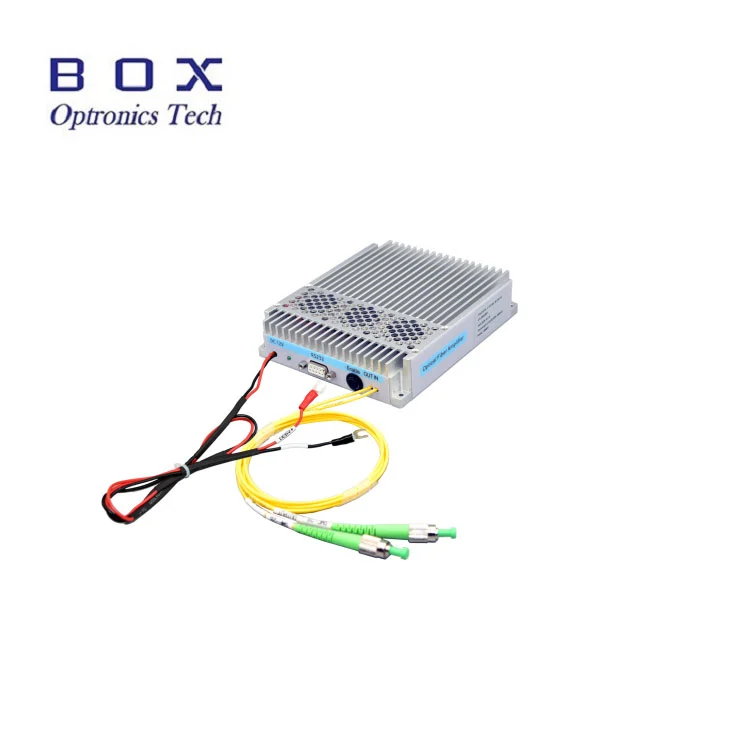

| 125(W)×150(D)×31.5(H) | Module | ||
| Power supply | V | AC 100~240V, 30W | Benchtop |
| DC12V3A | Module | ||
| Communication Interface | - | DB9 Female(RS232) | |
| Operating temperature& humidity | -5 ~ +35℃, 0~70% |
| Name | Wavelength | Output power | Power adjustable | Fiber type | dimensions |
| ASE | -XX | -XX | -X | -XX | -X |
| ASE source | C: C band |
1000: 1000mW 2000: 2000mW |
T: power adjustable |
SM: SMF-28e PM: PM1550 |
B2: Benchtop M31: Module |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have C L band ASE source
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
