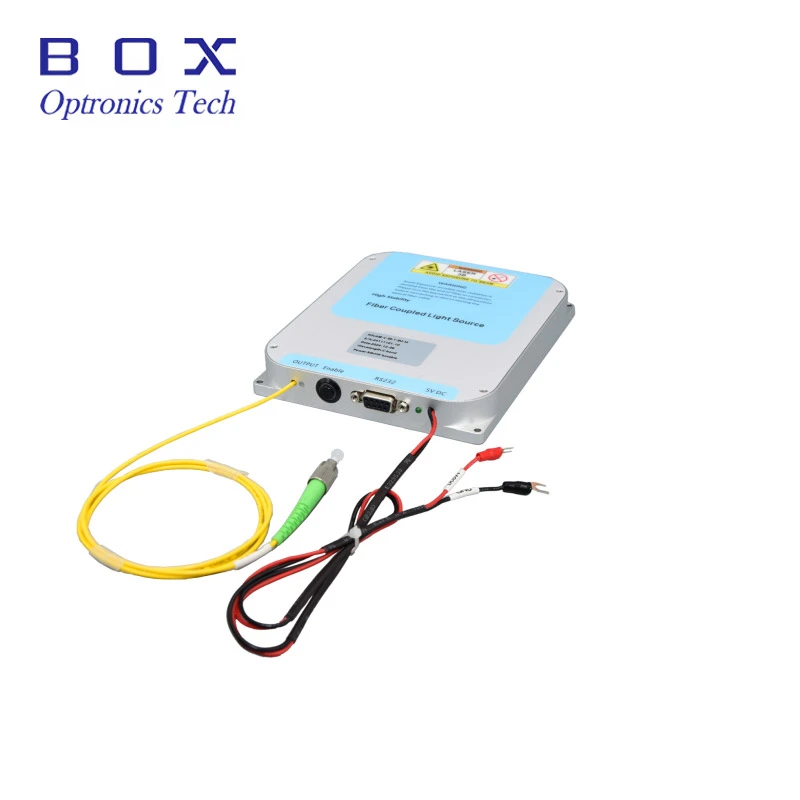

The 980nm ASE broadband light source based on the spontaneous emission of rare-earth optical fibers, offers high optical power and low polarization, covering the 980nm wavelength range. It is suitable for testing optical fiber loss and polarization, as well as for FBG grating production.
The 980nm ASE broadband light source based on the spontaneous emission of rare-earth optical fibers, offers high optical power and low polarization, covering the 980nm wavelength range. It is suitable for testing optical fiber loss and polarization, as well as for FBG grating production.
● Wide spectral range;
● High stability;
● Low polarization degree.
● Fiber laser ;
● Optical grating test;
● Fiber optic device test.
| Parameter | Unit | Typical | Remark |

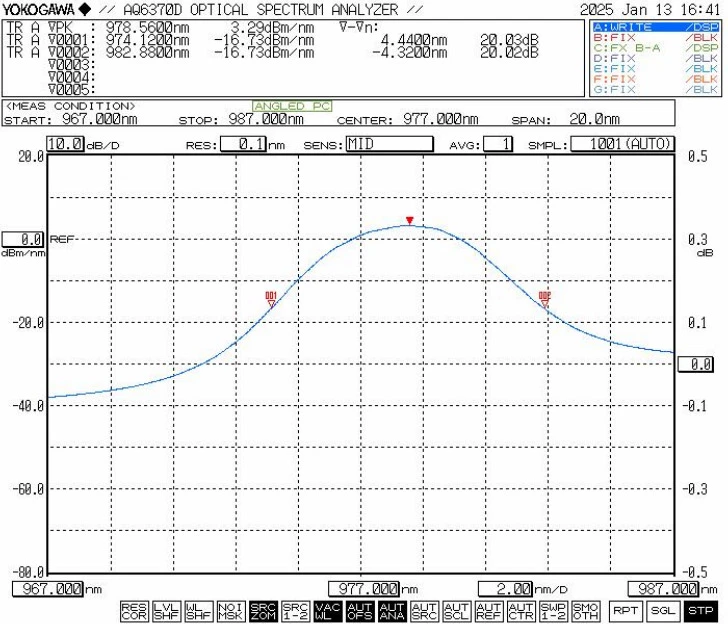

| Operating wavelength | nm | 973~982 | 20dB range |
| Output power | mW | ≥10 | |
| Optical power spectral density | nm | ≥-20 | |
| Output isolation | dB | >35 | Built-in isolator |
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% |
| Polarization Extinction Ratio | PER | ≤0.2 | |
| Fiber type | - | Hi 1060 | |
| Pigtail Connector Type | - | FC/APC | |

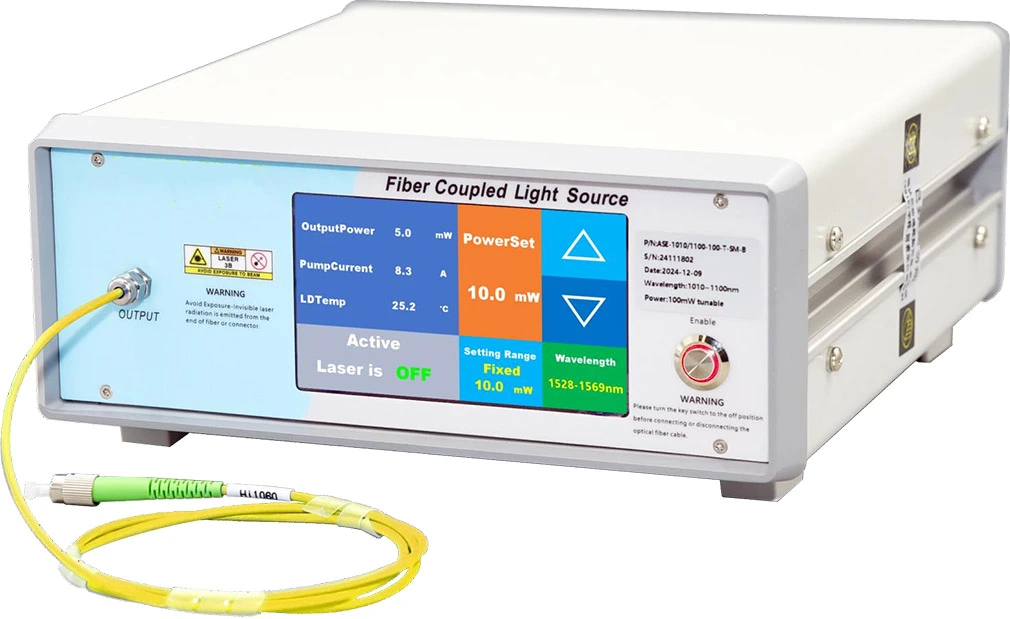

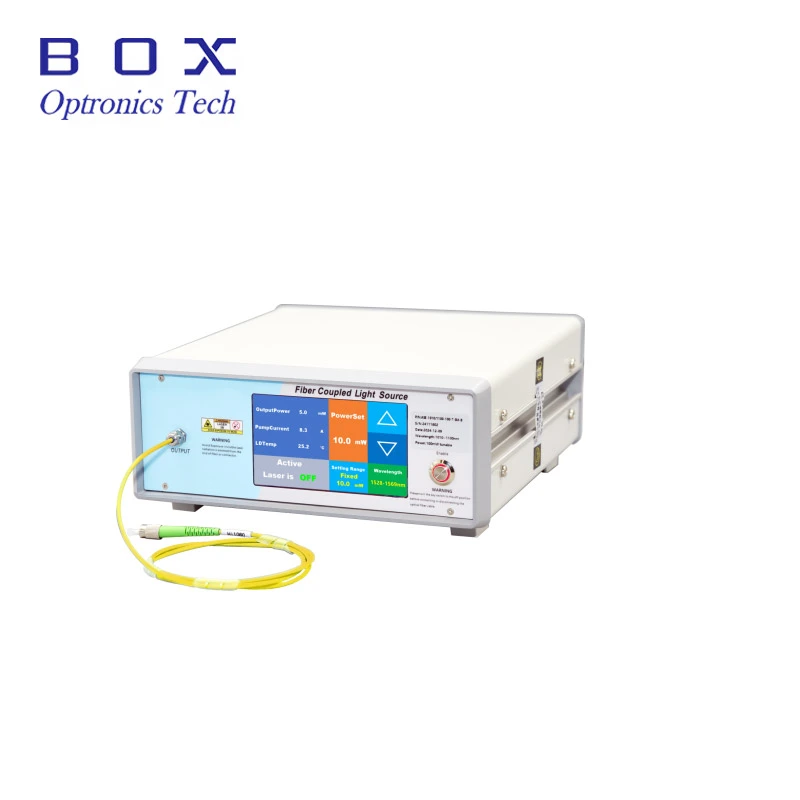

| Dimension | mm | 255(W)×285(D)×115(H) | Benchtop |
| Power supply | - | 100~240V AC, <30W | Benchtop |
| Control Mode | Touch screen/(RS232) | ||
| Communication Interface | - | DB9 Female(RS232) | |
| Operating temperature | ℃ | -5~+35°C | |
| Humidity temperature | ℃ | 0~ +70% |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 405nm 850nm 830nm 940nm laser diode.
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
