Box Optronics Technology's 96-wavelength C-band Wavelength Tunable Fiber Laser for Fiber Optic Link achieves continuous laser output at up to 96 wavelengths. Featuring high optical power, narrow linewidth, and high wavelength accuracy, it is suitable for DWDM system development, fiber lasers, fiber links, optical testing, and other fields.
96 wavelength C-band Wavelength Tunable Fiber Laser for Fiber Optic Link, achieving continuous laser output with up to 96 wavelengths (ITU-T standard wavelengths, with a wavelength spacing of 50 GHz). Integrating a tunable filter and a high-gain chip, it features high output optical power, narrow linewidth, and precise wavelength accuracy. Equipped with a dedicated drive control circuit, a high-definition color LCD, and optional host computer software, it allows users to easily and precisely tune the wavelength. It is suitable for DWDM system development, fiber lasers, fiber links, optical testing, and other fields.
● Mid-infrared band;
● Ultra-wide spectrum.
● Fiber optic sensing；
● medical imaging.
| Parameter | Unit | Typical | Remark |

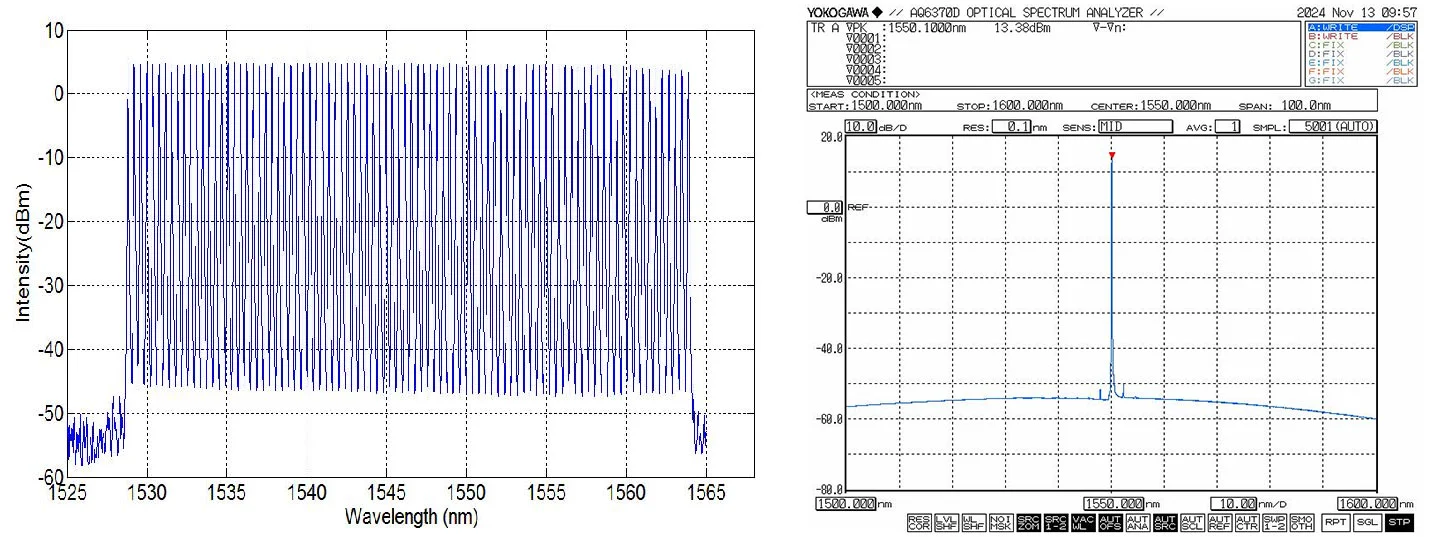

| Wavelength tuning range | nm | 1529.16~1567.3 | ITU stander H60~C13 |
| Frequency tuning range | THz | 191.3~196.05 | |
| Channel spacing | GHz | 50 | Equivalent 0.4nm |
| Side Mode Suppression Ratio | dB | >50 | |
| Number of wavelength channels | - | 96 | |
| Output power | mW | 20/100/200/300 | |
| Power instability (Short-term 15mins) | dB | ≤ ±0.01 | Single wavelength full temperature |
| Power instability (Long-term 8hours) | dB | ≤ ±0.025 | Single wavelength full temperature |
| Fiber type | - | SM1950 | Random polarization |
| - | PM1950 | Linear polarization | |
| Pigtail Connector Type | - | FC/APC | Customizable |

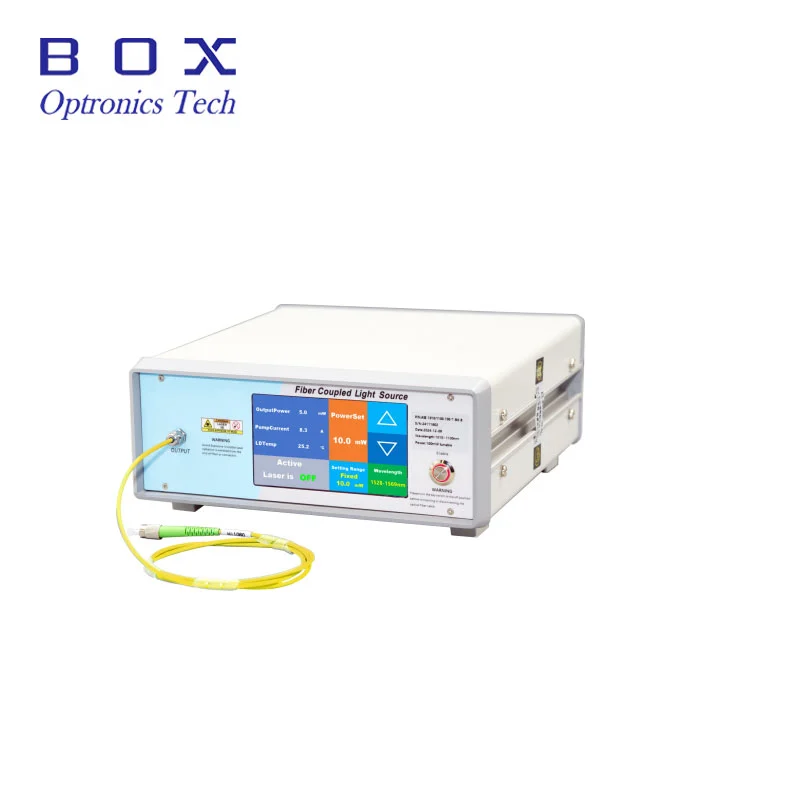

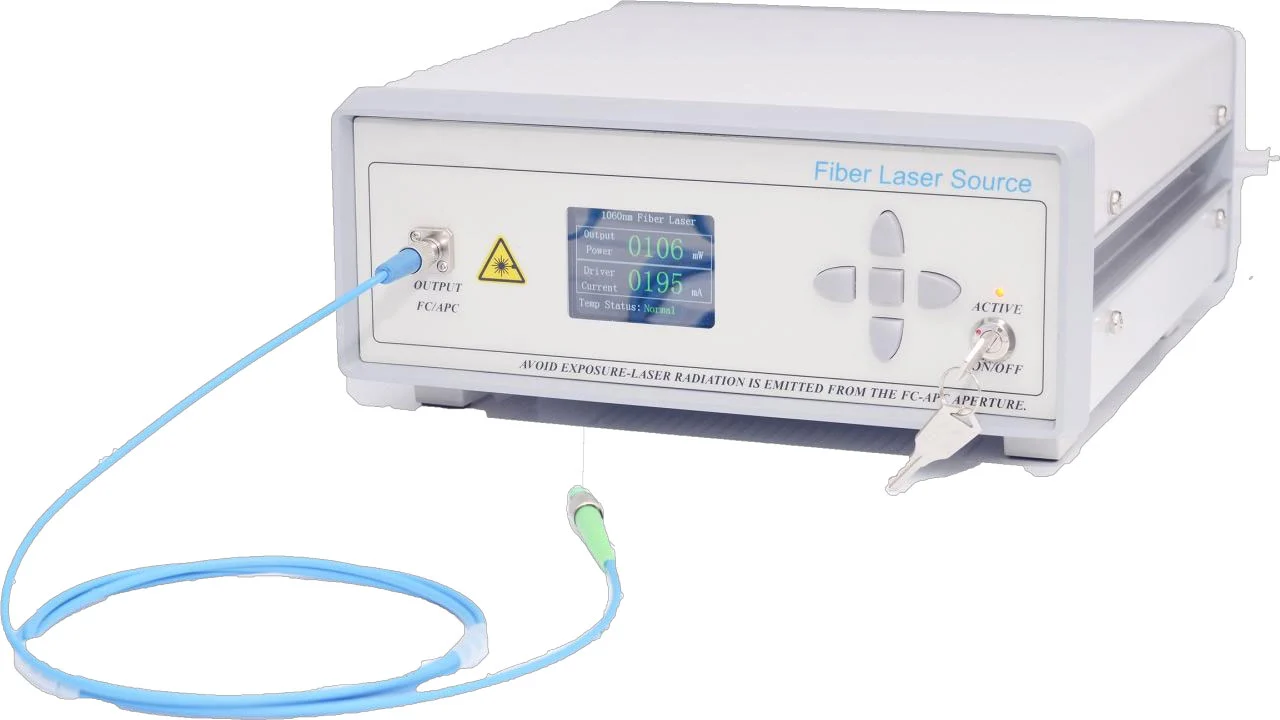

| Dimension | mm | 260(W)×280(D)×120(H) | Benchtop |

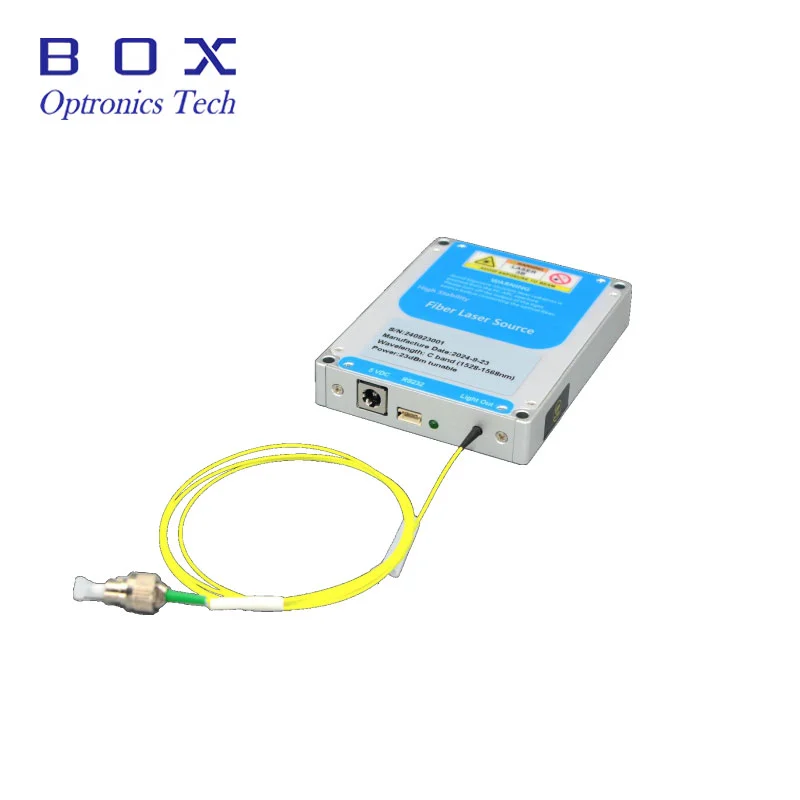

| 70(W)×90(D)×15(H) | Module | ||
| Power supply | V | 100~240V AC, <150W | Benchtop |
| 5V 3A DC | Module | ||
| Communication Interface | - | DB9 Female(RS232) | |
| Operating temperature | ℃ | -5~+35°C | |
| Humidity temperature | ℃ | 0~ +70% |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 980nm 1030nm 064nm ASE broadband light source
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
