The 840nm SLD broadband light source adopts semiconductor super radiation diode technology to output broadband spectrum and has high output power, which is suitable for optical fiber sensing and other applications. Communication interface and host computer software can be provided to facilitate the monitoring of light source status.
The 840nm SLD broadband light source adopts semiconductor super radiation diode technology to output broadband spectrum and has high output power, which is suitable for optical fiber sensing and other applications. Communication interface and host computer software can be provided to facilitate the monitoring of light source status.
Low spectral ripple;

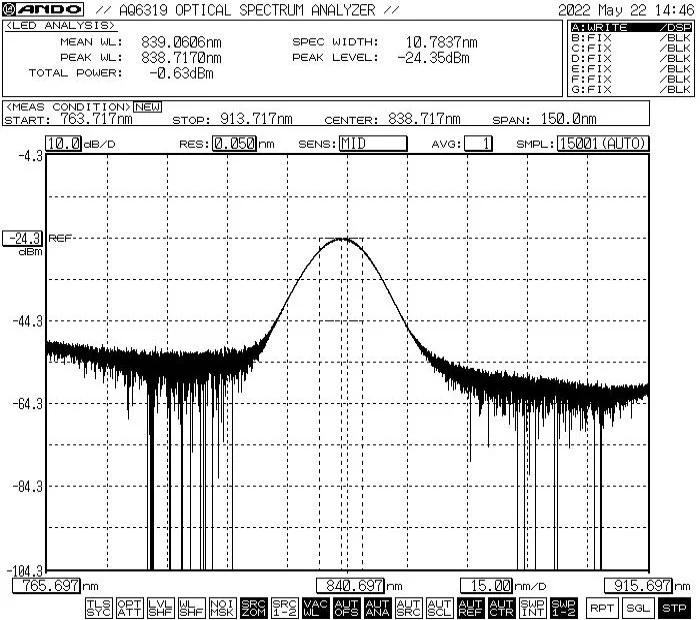

Gaussian spectrum;
Low-cost solution.
Fiber optic gyroscopes;
Medical Imaging;
Optical coherence topography.
| Parameter | Unit | Values | Notes | ||
| Operating wavelength | nm | 840 | ±20 | ||
| Output power | mW | Min.5 | 840nm | ||
| -3dBBandwidth | nm | Typ.10 | |||
| Short-term stability | dB | ≤±0.02/15 min | |||
| Long-term stability | dB | ≤±0.05/8 hours | |||
| Optical isolator | dB | Without | Module | ||
| Pigtail fiber | - | 780-HP | FC/APC | ||
| Communication interface | - | Touch screen/DB9 Female(RS485) | Benchtop | ||
| DB9 Female(RS485) | Module | ||||
| Power supply | - | AC 110~240V, <30W | Benchtop | ||
| 5VDC or 12VDC, <15W | Module | ||||
| Dimensions | mm | 195(W)×220(D)×120(H) | Benchtop | ||

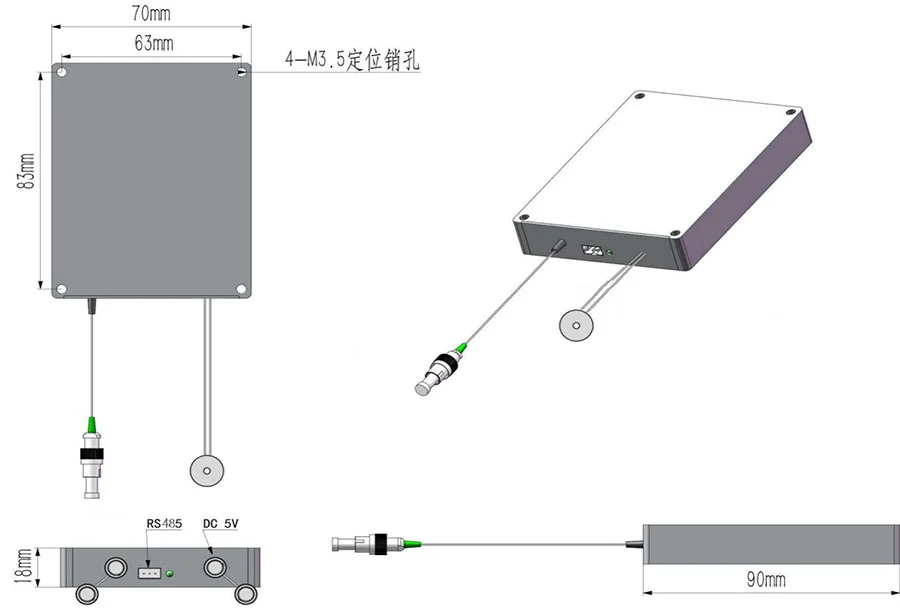

| 70(W)×90(D)×18(H) | Module | ||||
| Operating temperature | ℃ | -5 ~ +55 | |||
| Operating humidity | ℃ | 0~70% | |||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: Can you achieve more bandwidth?
A: Yes. 3dB bandwidth more than 45dB is available.
Q:Do you have any other wavelength SLED light source?
A: Yes, 1064nm/1310nm/1550nm... Please contact us for more details.
