These 405nm~940nm Single Mode Fiber Testing Light Source uses F-P type semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser. Complete wavelength, stable output power and spectrum, single-mode fiber output, excellent spot quality (LP01 mode). The equipment has the characteristics of rich wavelength selection, adjustable power, narrow spectral line width, convenient operation, and high safety. It can be widely used in the fields of fiber optic sensing, optical device testing, semiconductor detection, machine vision detection, etc.
These 405nm~940nm Single Mode Fiber Testing Light Source uses F-P type semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser.

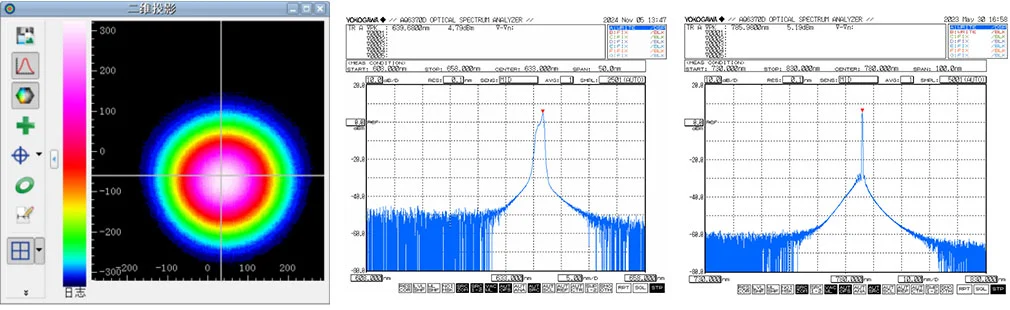

Complete wavelength, stable output power and spectrum, single-mode fiber output, excellent spot quality (LP01 mode). The equipment has the characteristics of rich wavelength selection, adjustable power, narrow spectral line width, convenient operation, and high safety. It can be widely used in the fields of fiber optic sensing, optical device testing, semiconductor detection, machine vision detection, etc.
● Single-mode fiber output;
● Stable power;
● Circular light spotAll-fiber DFB resonant cavity
● Spot indication
● Iimaging;
● Device testing；
| Parameter | Unit | Typical | Remark |
| Operating wavelength | nm | 405~940 | ±5nm |
| Working Mode | - | CW | Continuous light |
| Output power | mW | 5~90 | Depends on the wavelength |
| Power adjustment range | - | 10~100% | |
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% |
| Fiber type | - | SMF | Random polarization |
| Pigtail Connector Type | - | FC/APC | Customizable |

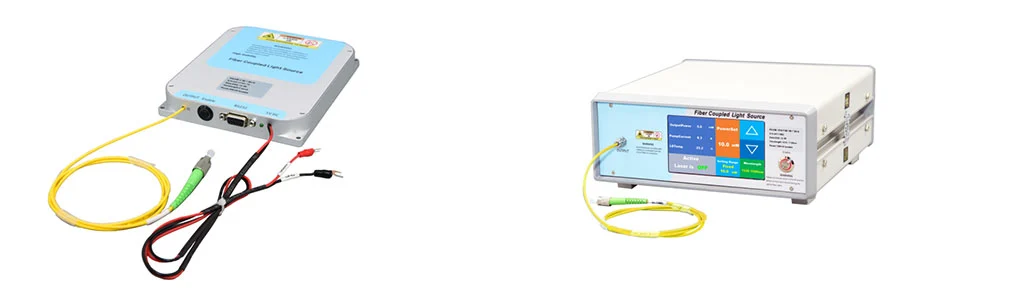

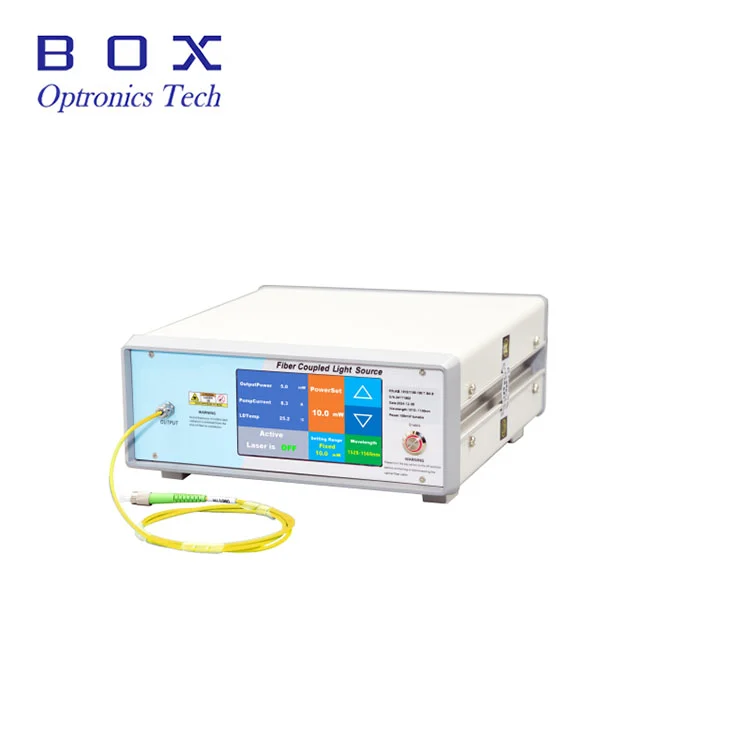

| Dimension | mm | 260(W)×280(D)×120(H) | Benchtop |

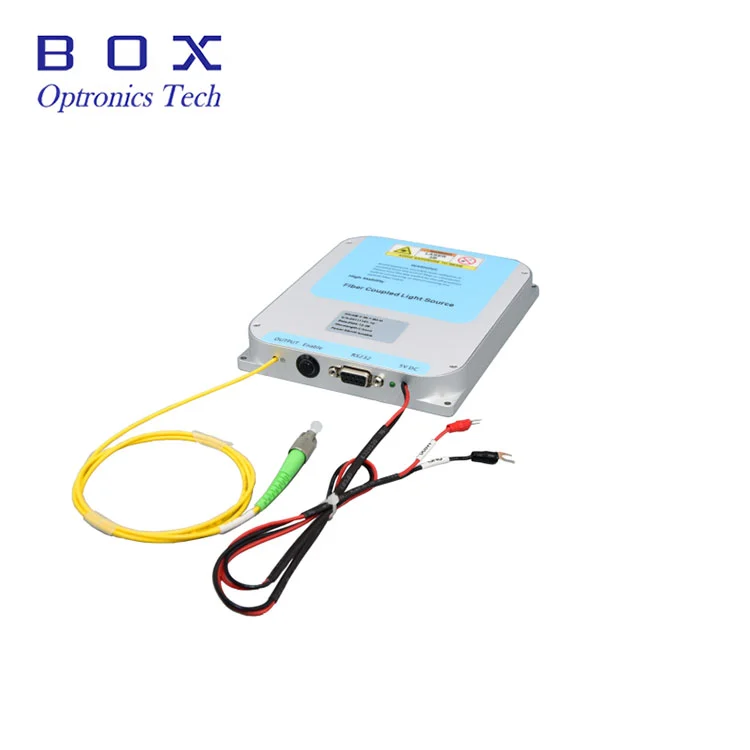

| 125(W)×150(D)×20(H) | Module | ||
| Power supply | V | 100~240V AC, <30W | Benchtop |
| 5V DC, <15W | Module | ||
| Communication Interface | - | DB9 Female(RS232) | |
| Operating temperature | ℃ | -5~+35°C | |
| Humidity temperature | ℃ | -0 ~ +70% |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What pigtail fiber can you provide?
A: SMF-28 and PM1560. If other fibers are needed, please check with us.
Q: I don't want a module package.
A: 14PIN BTF package is available.
