The 2000nm Wavelength SM Fiber Coupled Laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, and the output power and spectrum are stable. It can be used as a seed light source for thulium-doped fiber lasers or fiber amplifiers, and is available in desktop or modular packages.
The 2000nm Wavelength SM Fiber Coupled Laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, and the output power and spectrum are stable. It can be used as a seed light source for thulium-doped fiber lasers or fiber amplifiers, and is available in benchtop or module packages.
● 10mW~10W output Power;
● SM fiber output;
● Power and spectrum stability.
● Fiber Laser;
● Optical device testing;
● Optical frequency doubling.
| Parameter | Unit | Typical | Remark |
| Operating wavelength | nm | 1940;2009 | |
| Output power | dBm | 7/20/30/33/37/40 | |
| Spectral linewidth | nm | <0.1 | |
| Side Mode Suppression Ratio | dB | ≥50 | |
| Wavelength Accuracy | nm | ±5 | |
| Working Mode | - | CW | Continuous light |
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% |
| Fiber type | - | SM1950 | Random polarization |
| - | PM1950 | Linear polarization | |
| Pigtail Connector Type | - | FC/APC | Customizable |

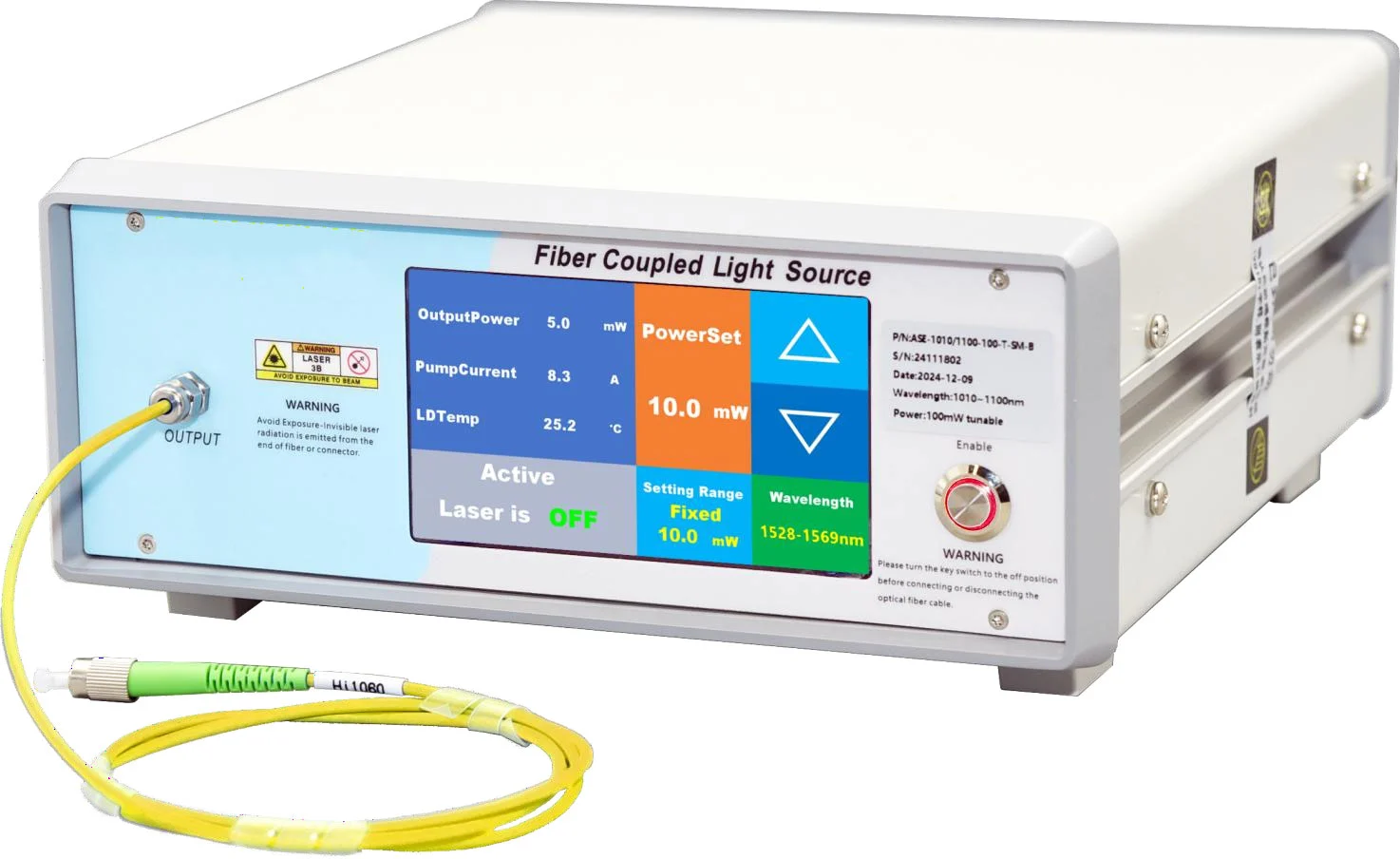

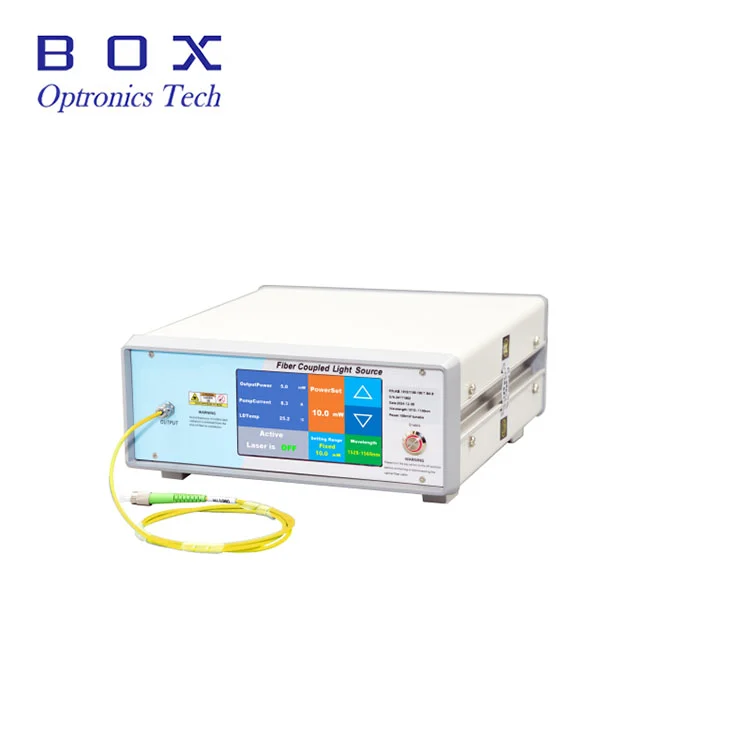

| Dimension | mm | 260(W)×320(D)×120(H) | Benchtop |

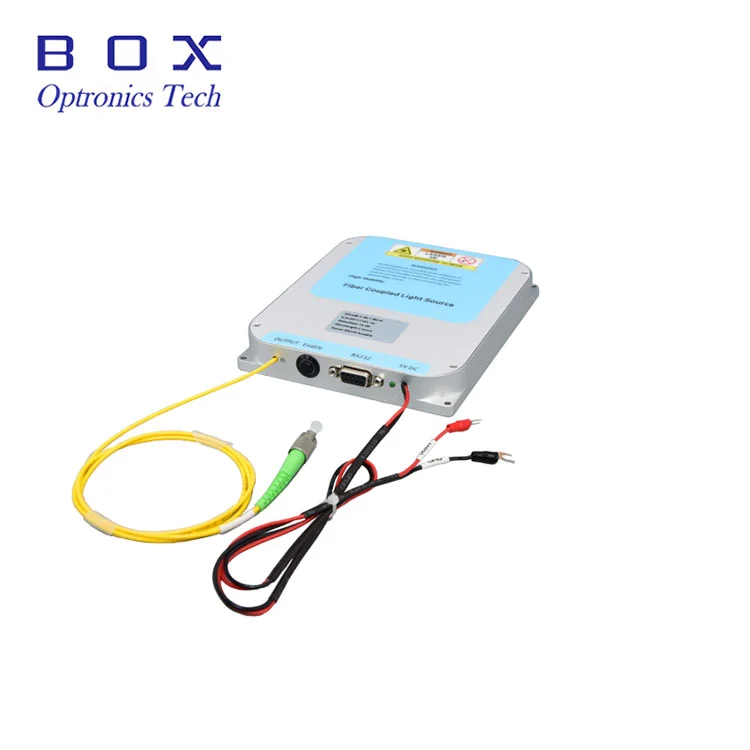

| 125(W)×150(D)×20(H) | Module | ||
| Power supply | V | 100~240V AC, <150W | Benchtop |
| 5V DC, <60W | Module | ||
| Communication Interface | - | DB9 Female(RS232) | |
| Operating temperature | ℃ | -5~+35°C | |
| Humidity temperature | ℃ | 0~ +70% |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 405nm 850nm 830nm 940nm laser diode.
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
