The 2000nm Band ASE Broadband Light Source uses short-wavelength laser pumping thulium-doped optical fiber. The single-mode optical fiber output power can reach up to 2W, and the widest spectrum coverage can cover 1780~2000nm (at 100mW), which is suitable for applications such as laser biology and spectral measurement.
The 2000nm Band ASE Broadband Light Source uses short-wavelength laser pumping thulium-doped optical fiber. The single-mode optical fiber output power can reach up to 2W, and the widest spectrum coverage can cover 1780~2000nm (at 100mW), which is suitable for applications such as laser biology and spectral measurement.
● Mid-infrared band;
● Ultra-wide spectrum.
● Fiber optic sensing；
● medical imaging.
| Parameter | Unit | Typical | Remark | ||

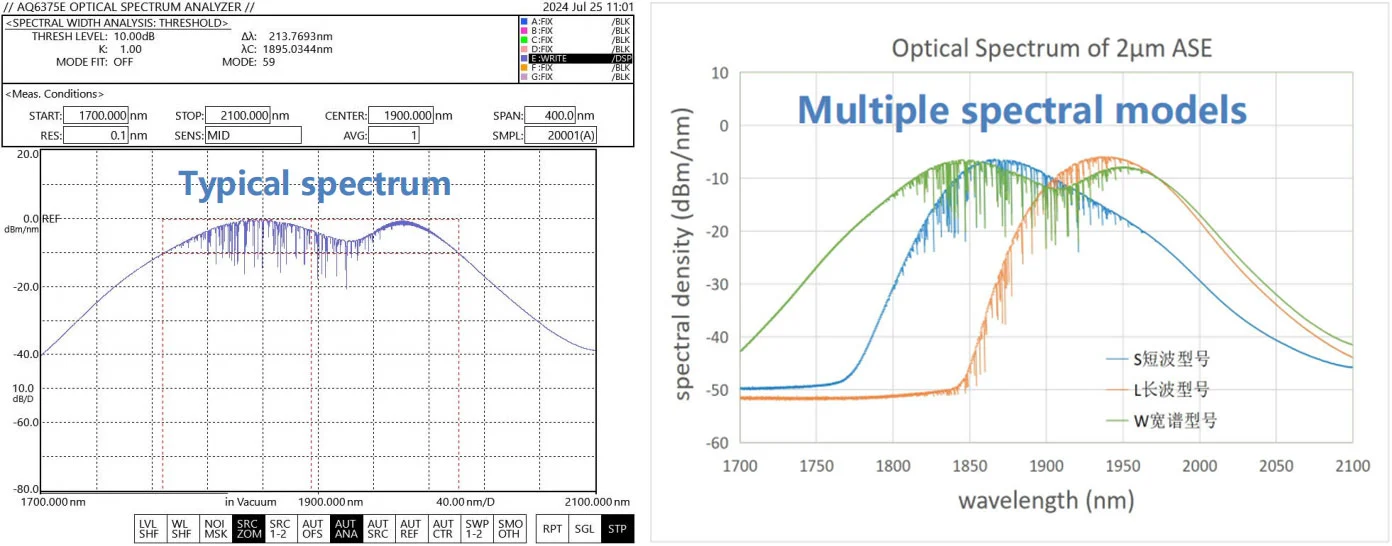

| Band module | - | S | L | W | |
| Average wavelength | nm | 1880 | 1940 | 1902 | |
| Spectra range | nm | 112 | 90 | 170 | @10dB |
| Output power | mW | 10 | 10 | 10 | |
| Customzable output power | mW | 10/20/50/100/500/2000 | |||
| Output isolation | dB | >35 | Built-in isolator | ||
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% | ||
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% | ||
| Polarization Extinction Ratio | PER | ≤0.2 | |||
| Fiber type | - | SM1950 | |||
| Pigtail Connector Type | - | FC/APC | |||

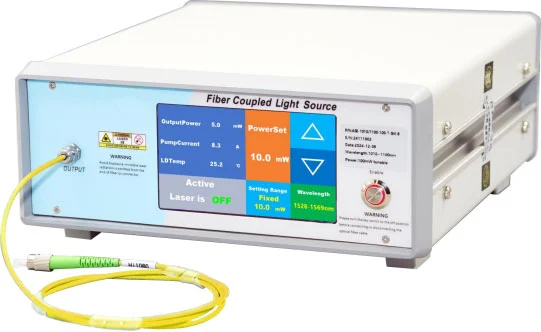

| Dimension | mm | 260(W)×320(D)×120(H) | Benchtop | ||

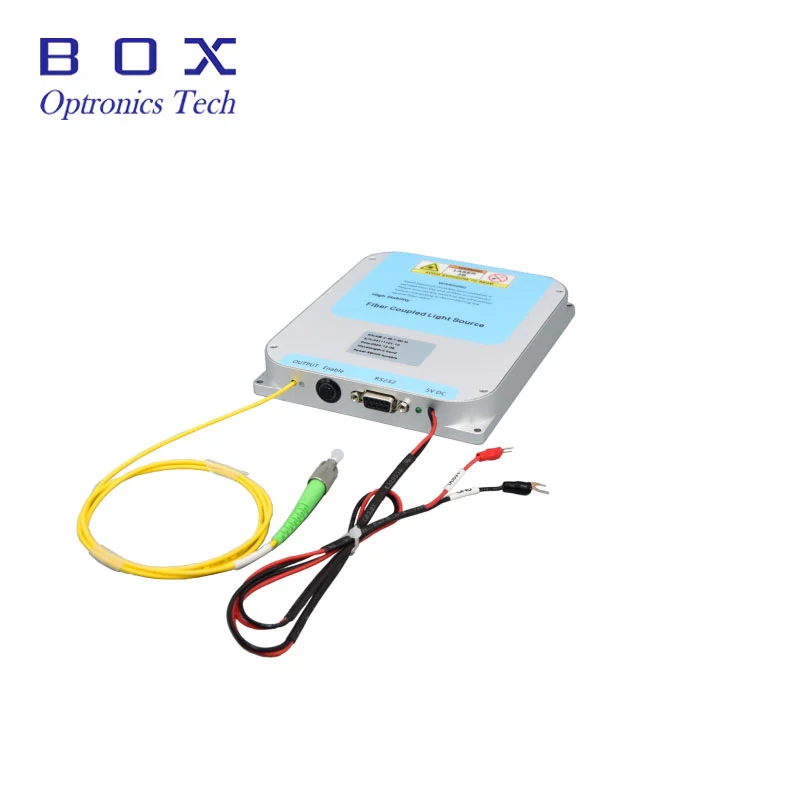

| 139(W)×235(D)×70(H) | Module | ||||
| Power supply | - | 100~240V AC, <30W | Benchtop | ||
| DC 12V3A, ≤36W | Module | ||||
| Control Mode | Touch screen/(RS232) | Benchtop | |||
| Communication Interface | - | DB9 Female(RS232) | |||
| Operating temperature | ℃ | -5~+35°C | |||
| Humidity temperature | ℃ | 0~ +70% | |||
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 980nm 1030nm 1064nm ASE broadband light source
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
