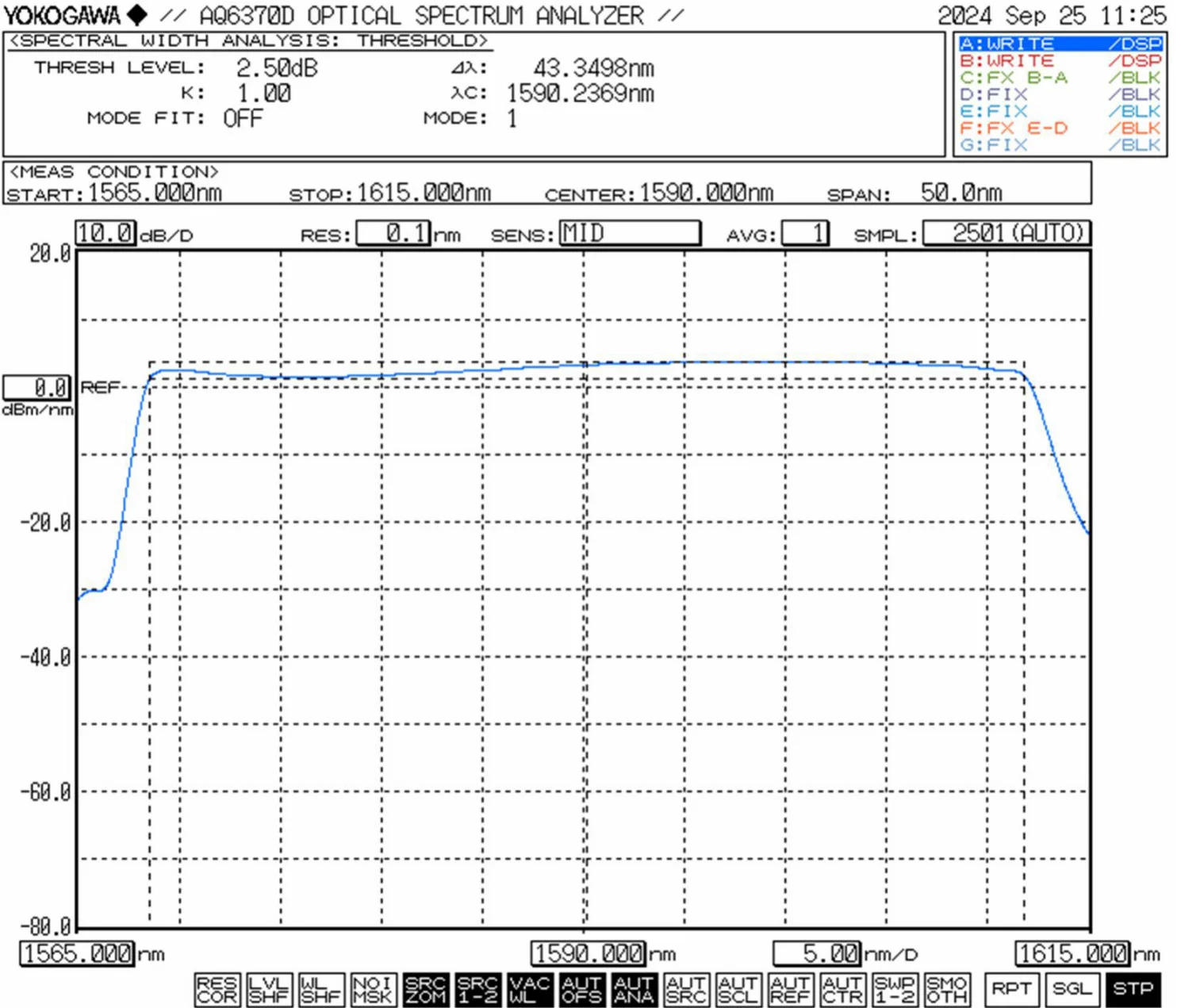

It completely covers the L+ band 1568~1611nm wavelength range, the spectral range exceeds 40nm, and the spectral flatness is better than 2.5dB. The single-mode fiber output power is greater than 200mW, which is suitable for applications like fiber-optic communication, fiber-optic sensing.
● Wider spectral
● Spectral flatness
● Power tunability
● High stability
● Fiber optic sensing
● medical imaging
● Production testing
| Parameter | Unit | Typical | Notes | ||
| Spectral range | nm | 1568~1611 | 2.5dB Spectral range | ||
| Spectral flatness | dB | ≤2.5 | |||
| Output power | mW | 50 | 100 | 200 | |
| Optical Power Spectral Density |
dBm/ nm |
≥1 | ≥4 | ≥7 | |
| Power adjustable range | - | 10%~100% | Keep spectral flatness | ||
| output isolation | dB | >35 | |||
| Short-term stability (15 min) | dB | ≤ ±0.02 | Equivalent ≤±0.5% | ||
| Long-term stability (8 hours) | dB | ≤ ±0.05 | Equivalent ≤±1.2% | ||
| Polarization Extinction Ratio PER | dB | ≤ 0.2 | |||
| Fiber and Connector | - | SMF-28, FC/APC | |||
| Parameter | Benchtop | Module | |||
| Control method | Touch screen/RS232 | RS232 | |||
| Communication interface | DB9 Female | DB9 Female | |||
| Power supply | 100~240V AC, <30W | 5V DC, <30W | |||
| Dimensions(mm) | 255(W)×285(D)×115(H)mm | 125(W)x150(D)x20(H) | |||
| Operating Temperature | -5~+35°C | ||||
| Operating humidity | 0~70% | ||||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: How to control this module?
A: Touch screen/RS232
Q: I need other wavelengths you don't refer to.
A: Please check with us if it's customized.
