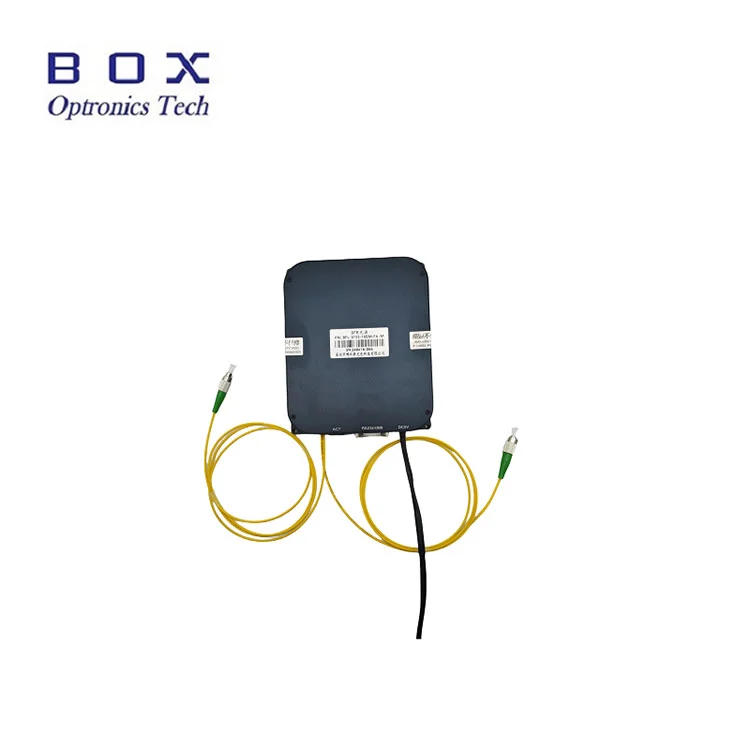

The Semiconductor Optical Amplifier (SOA) product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.
The Semiconductor Optical Amplifier (SOA) product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.
● C+L-Band blocking shutter or modulation;
● Low Noise Figure & Low polarization dependence;
● Module or Benchtop package.
● Loss compensation for fiber optical connection and switch;
● WDM fiber optical networks;
● MOPA (Master Oscillator Power Amplifier) laser.
| Parameter | Unit | Values | Notes |
| Operating wavelength | λPEAK | 1560nm | 25℃, PIN=-10dBm |
| -3dB Gain bandwidth | Δλ | >120nm | PIN=-10dBm |
| Saturation optical power | PMAX | 13dBm | IF=300mA, PIN=5dBm@1550nm |
| Small signal gain | SSG | 30dB | IF=300mA, PIN=-25dBm@1550nm |
| Polarization dependent gain | PDG | 6dB | 25℃, IF=300mA |
| Operating current | IF | <500mA | 25℃, IF=300mA, PIN=-10dBm |
| Noise Figure | NF | ≤7dB | - |
| Turn off extinction ratio1 | ER1 | 55 | IF=300mA, IF=0mA, PIN=0dBm |
| Turn off extinction ratio2 | ER2 | 70 | IF=300mA, IF=-5mA, PIN=0dBm |
| Connector | - | FC/APC | - |
| Fiber type | - | SMF-28/PM1560 | - |

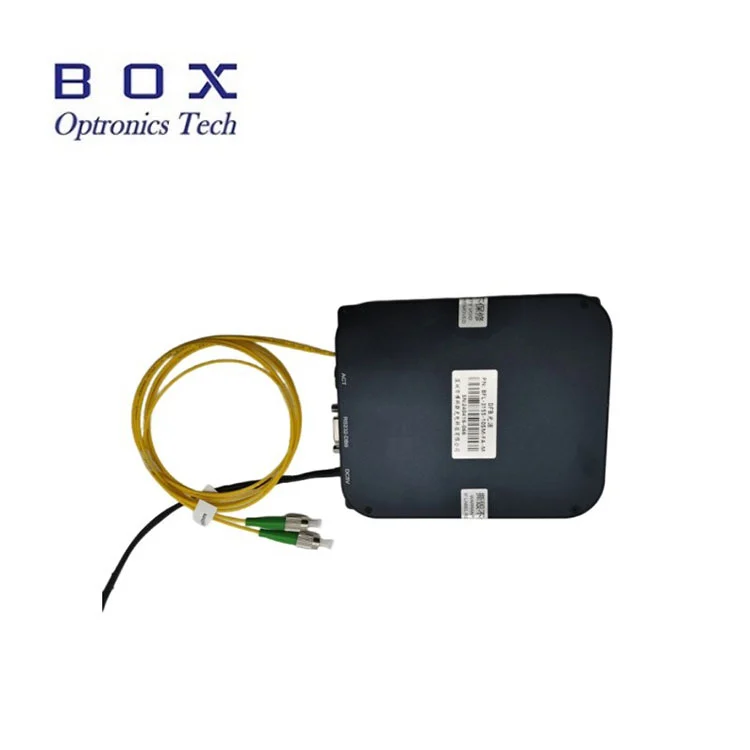

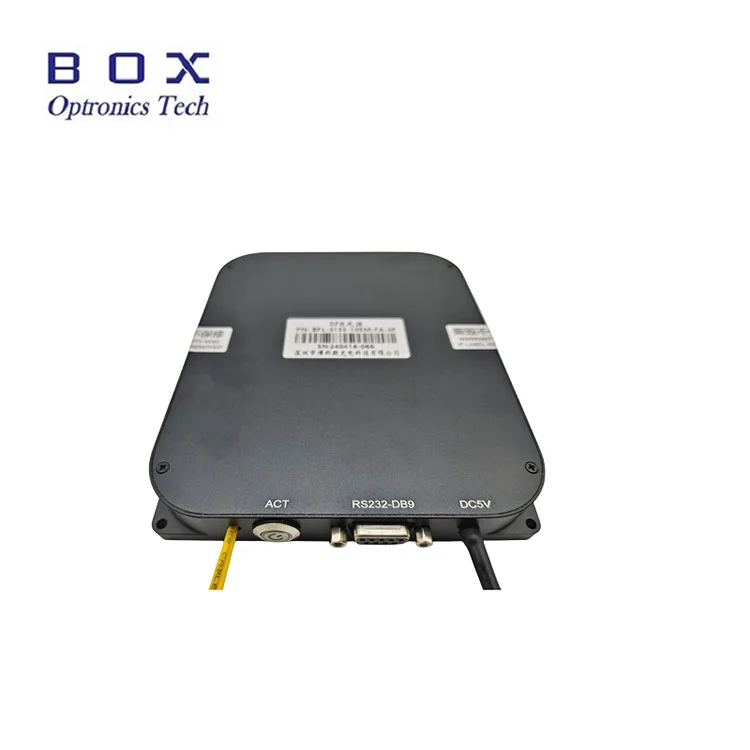

| Dimensions | mm | 150(W)×125(D)×20(H) | Module |
| Power supply | V | DC 5V/4A, <15W | Module |
| Operating temperature | ℃ | -5 ~ +55 | - |
| Storage temperature | ℃ | -40 ~ +85 | - |

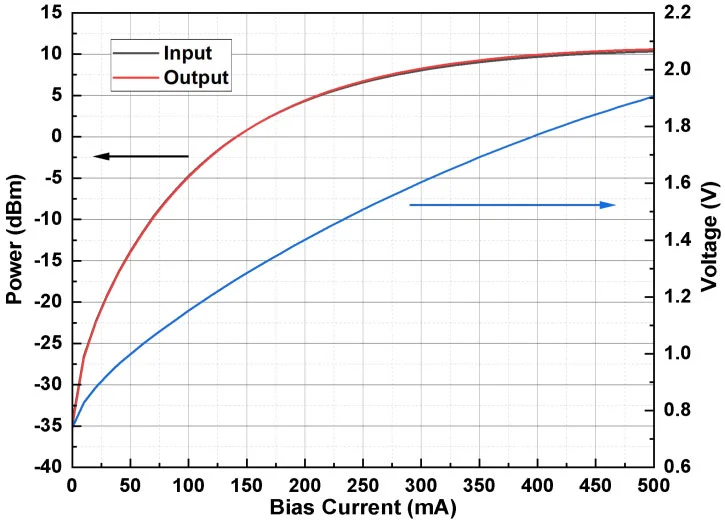

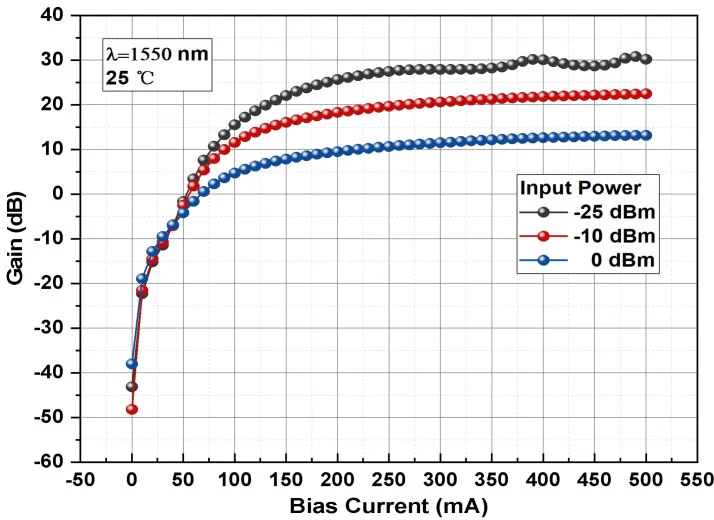

Gain vs. Output power

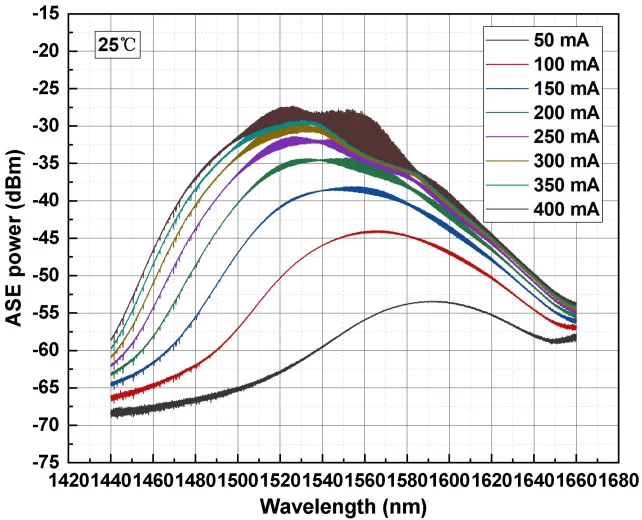

Gain Spectrum
Gain vs. Output power
Gain Spectrum

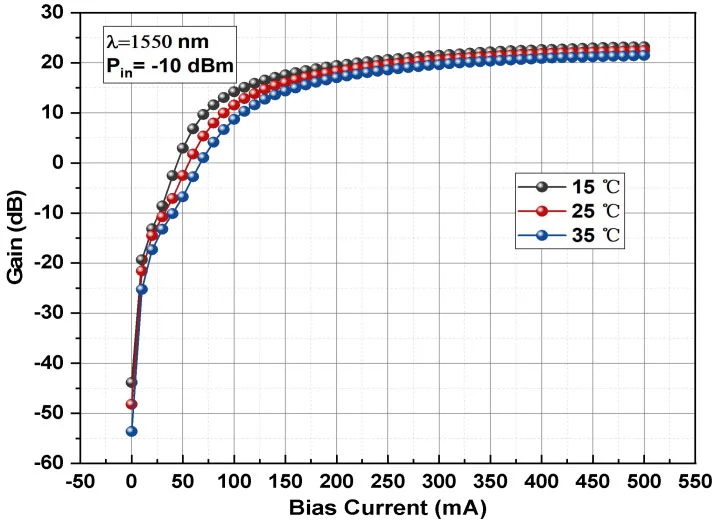

Gain@different temperature

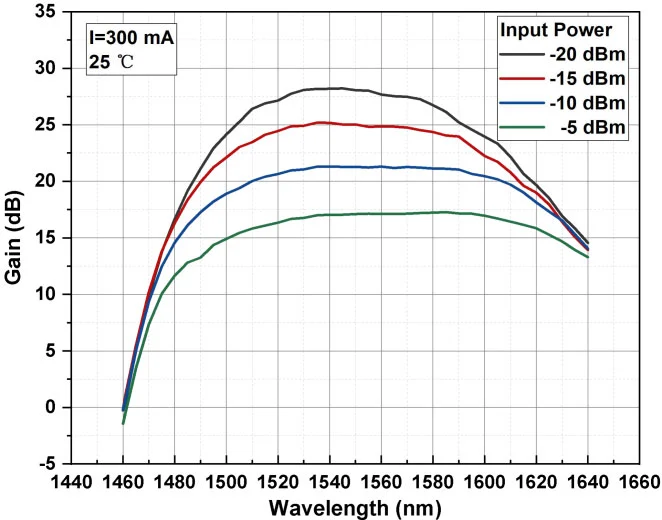

Gain@different input power
