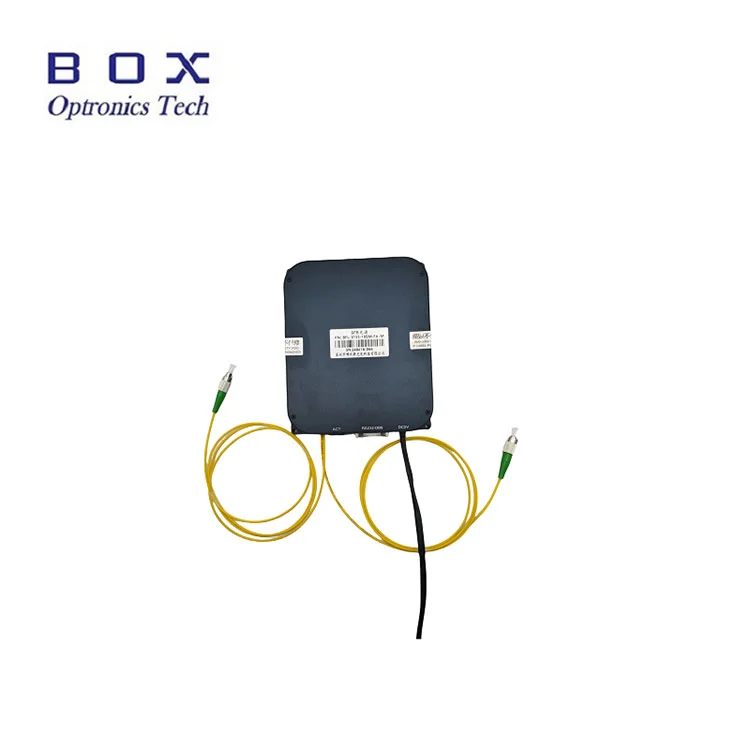

The 1060nm 25dB SOA semiconductor optical amplifier product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.
The 1060nm 25dB SOA semiconductor optical amplifier product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.

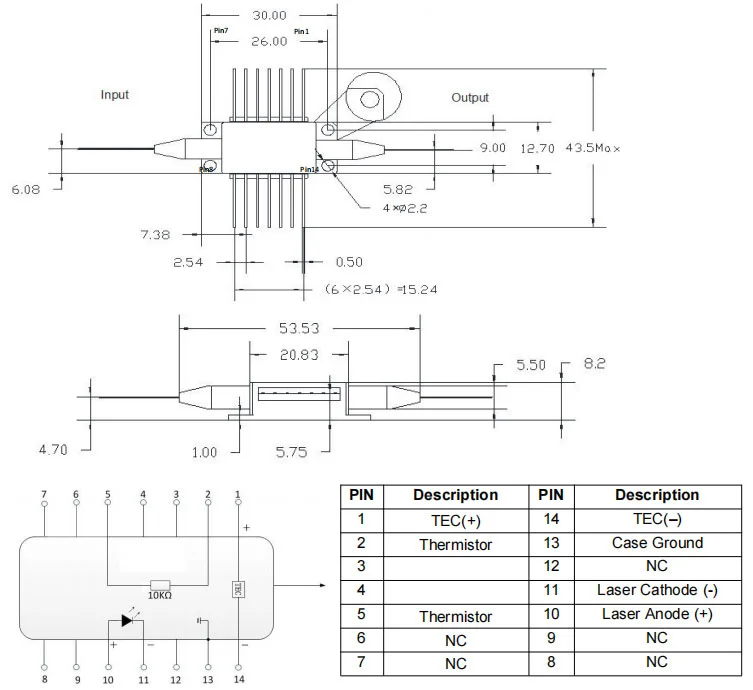

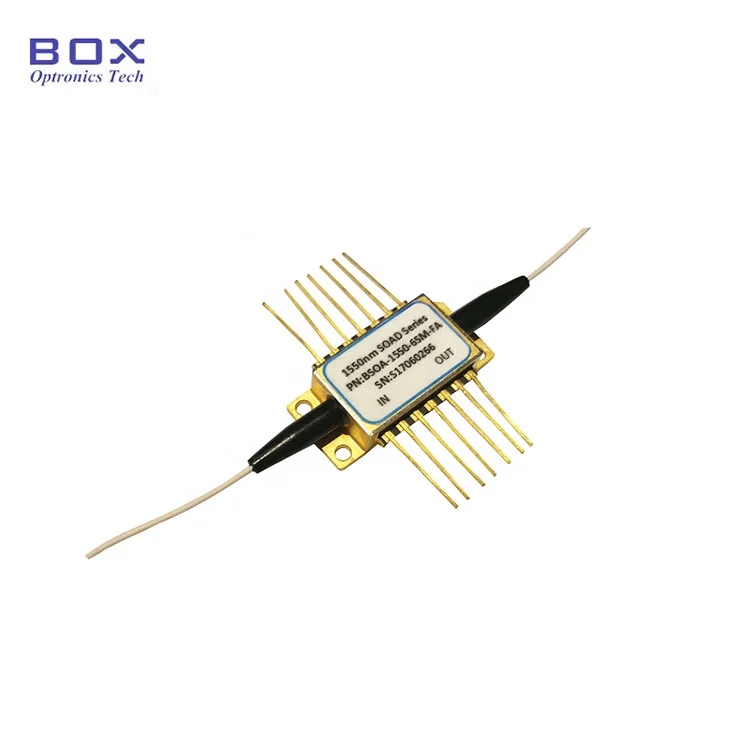

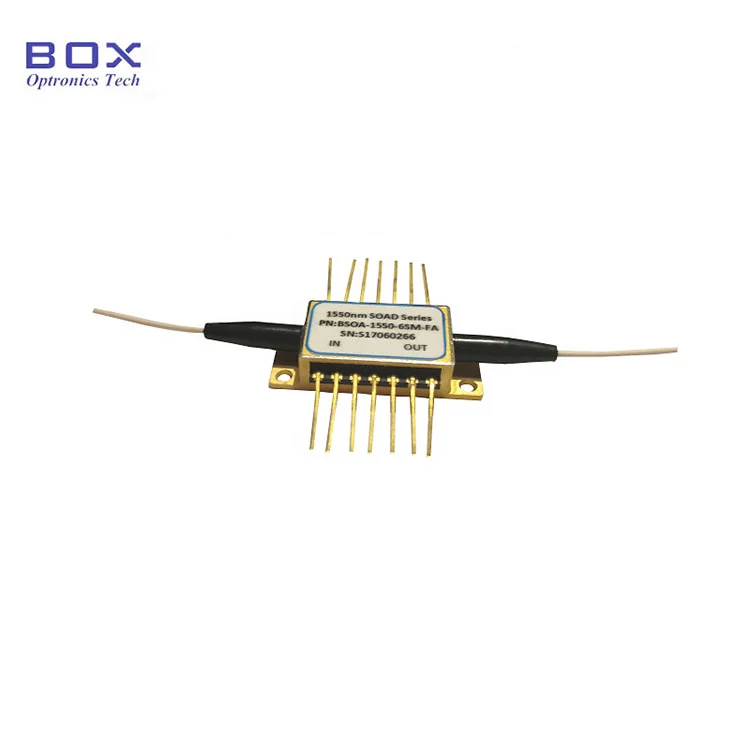

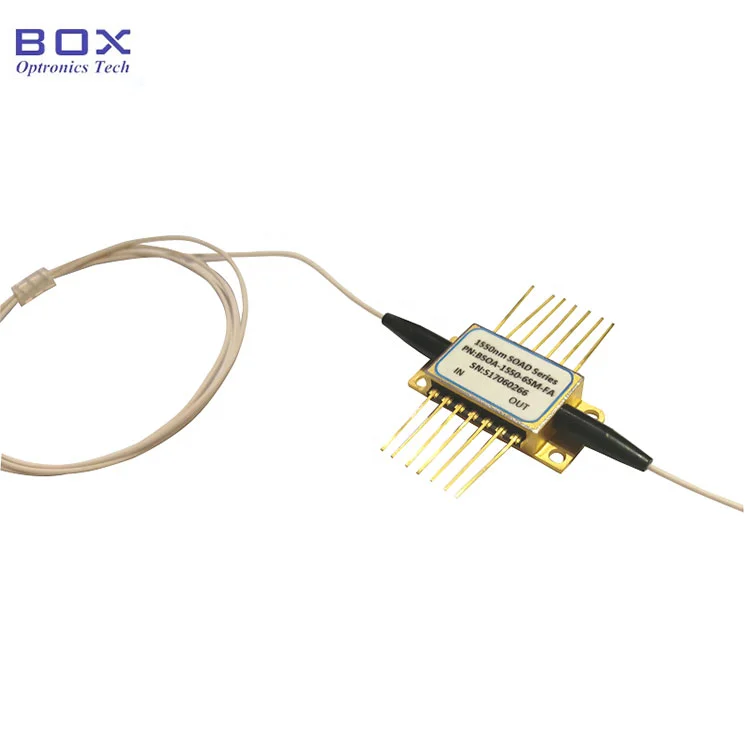

● 14PIN Butterfly package;
● Low Noise Figure & Low polarization dependence;

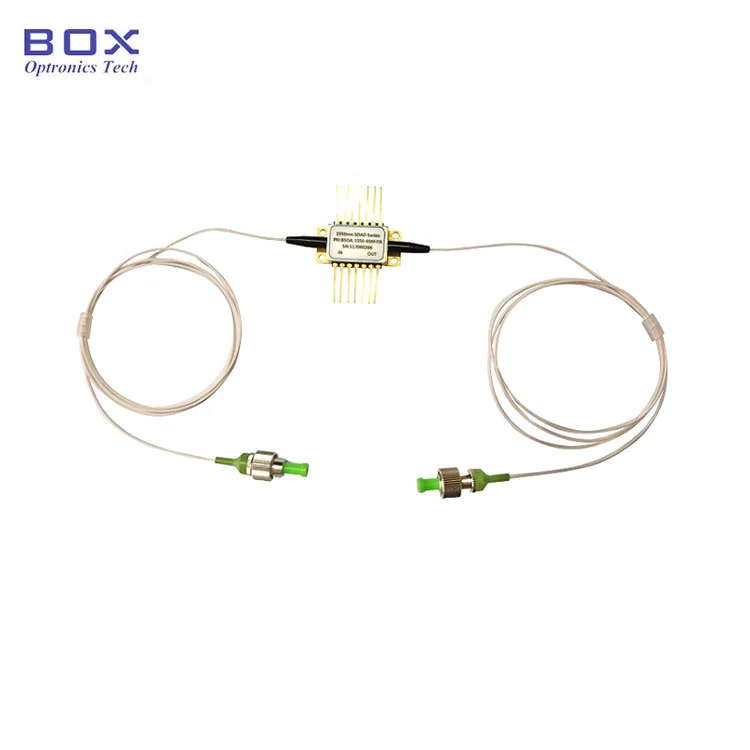

● SMF-28e fiber with FC/APC connector.
● Reliability: Telcordia GR-468. RoHS
● Loss compensation for fiber optical connection and switch
● Medical OCT;
● Sweep frequency source,tunable laser;

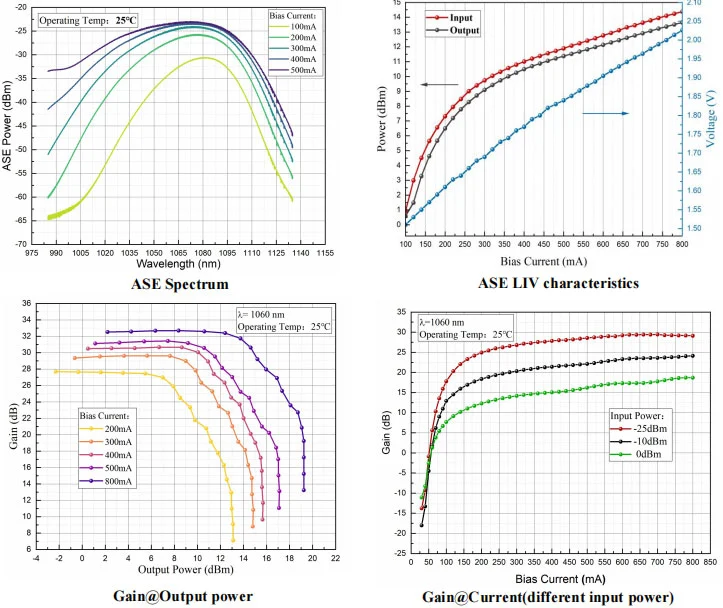

| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Operating wavelength | lPEAK | 25℃, PIN=0dBm | - | 1060 | - | nm |
| ASE centre wavelength | lASE | 25℃, IF=400mA | - | 1070 | - | nm |
| -3dB Gain Bandwidth | Δl | PIN=-20dBm | - | 50 | - | nm |
| Saturation optical power | PMAX |
IF=400mA, PIN=5dBm@1060nm |
- | 15 | - | dBm |
| Small signal gain | SSG |
IF=400mA, PIN=-25dBm@1060nm |
- | 25 | - | dB |
| Polarization dependent gain | PDG | 25℃, IF=400mA | dB | |||
| Operating current | IF | - | 20 | - | - | mA |
| Forward voltage | VF | - | - | 400 | 600 | V |
| Noise figure | NF | 25℃, IF=400mA, @1060nm | - | - | 2.0 | dB |
| TEC current | lTEC | - | - | - | 1.8 | A |
| TEC voltage | VTEC | - | - | 10 | 3.4 | V |
| Thermistor resitance | Rtherm | T=25℃ | 9.5 | 10 | 10.5 | KΩ |
| Thermistor current | ltherm | - | - | - | 5 | mA |
| Total power | P | - | - | - | 4 | w |
| Operating case temperature | TOP | I=IF | -10 | - | 70 | ℃ |
| Storage temperature | TS | - | -40 | - | 85 | ℃ |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 1550nm 1310nm 1270nm 1060nm SOA laser diode.
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
