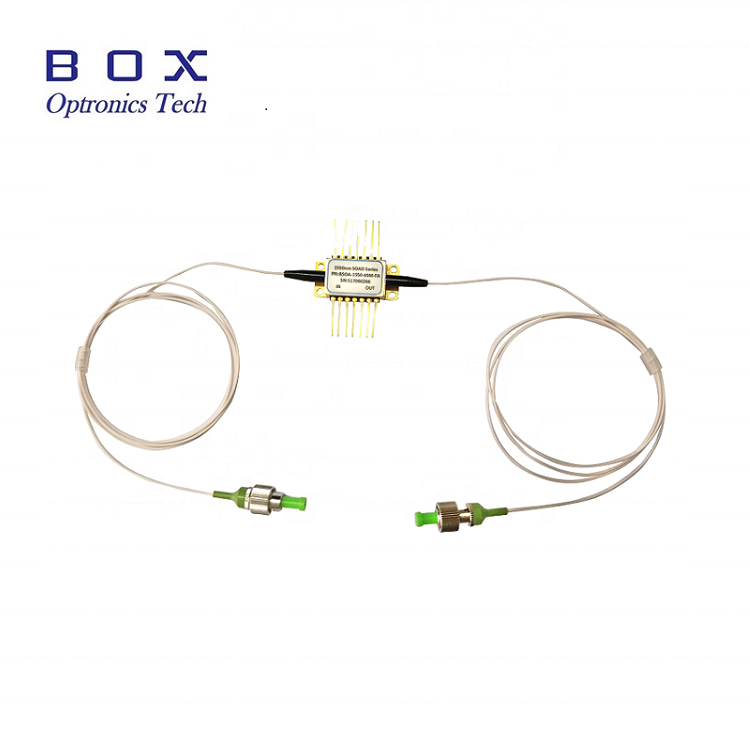

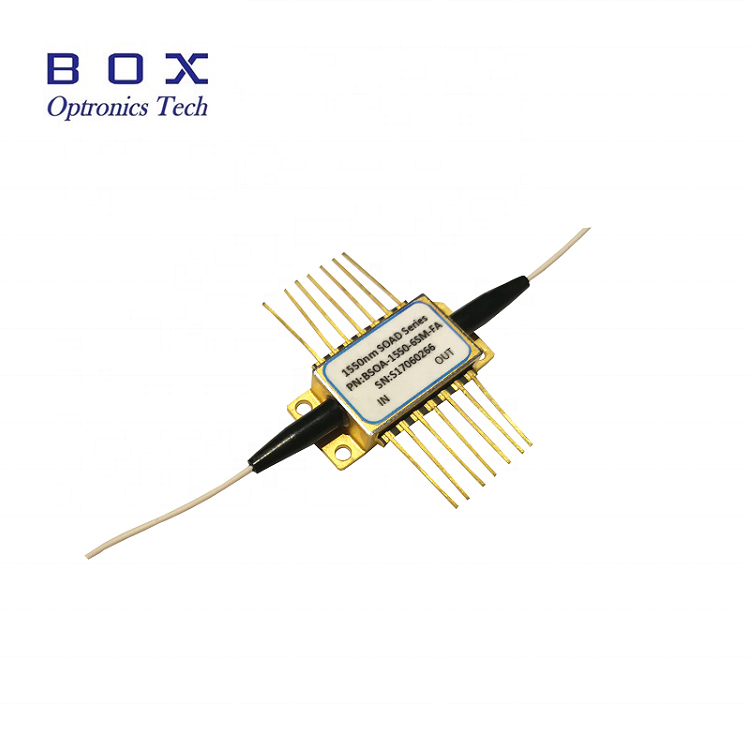

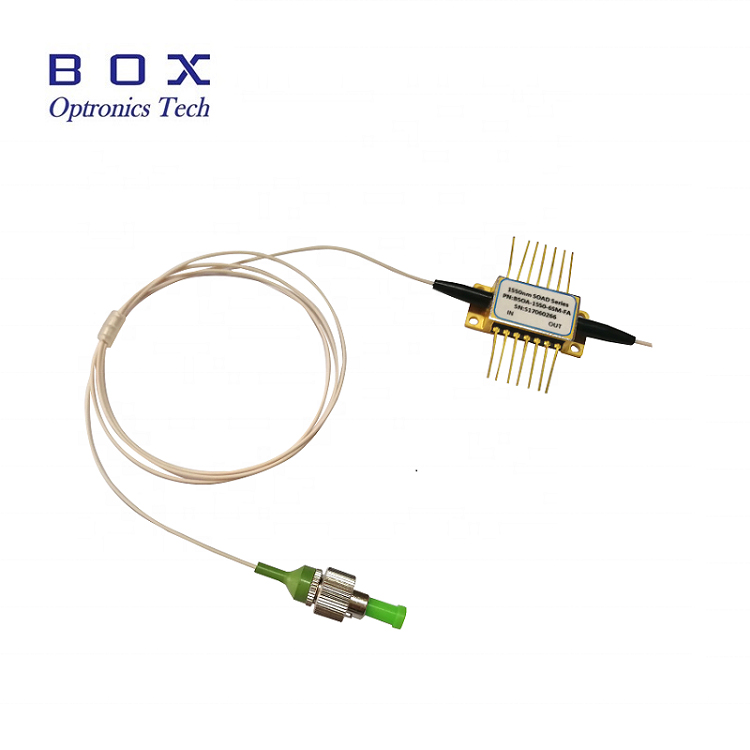

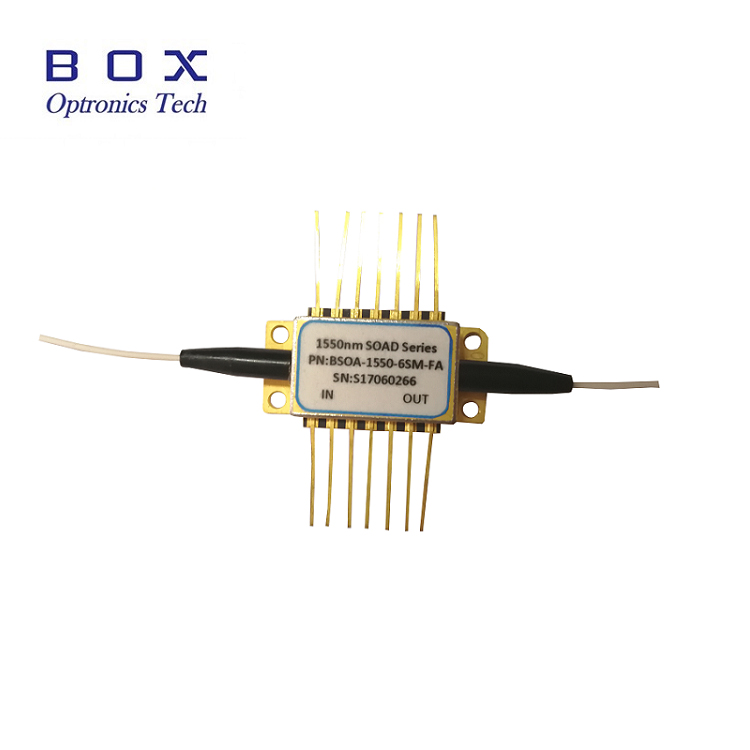

1550nm 8dBm SM SOA Semiconductor Optical Amplifier

The 1550nm 8dBm SM SOA Semiconductor Optical Amplifier is a semiconductor optical amplifier with high Signal Gain, designed to be used in general applications to increase optical launch power to compensate for loss of other optical devices. The 1550nm 8dBm SM SOA Semiconductor Optical Amplifier can be ordered with Single Mode (SM) or Polarization Maintaining (PM) fiber input/output. This module version is an ideal building block for system integrators, especially in optical communication networks and CATV applications.

The 1550nm 8dBm SM SOA Semiconductor Optical Amplifier is a semiconductor optical amplifier with high Signal Gain, designed to be used in general applications to increase optical launch power to compensate for loss of other optical devices. The 1550nm 8dBm SM SOA Semiconductor Optical Amplifier can be ordered with Single Mode (SM) or Polarization Maintaining (PM) fiber input/output. This module version is an ideal building block for system integrators, especially in optical communication networks and CATV applications.

1550nm wavelength;

Very high saturated output power (>10dBm);

Low noise figure (<7.5dB);

Low ASE ripple (<0.2dB);

Low polarisation dependence (1dB);

InP buried heterostructure design;

Available as packaged device or chip-on-carrier.

Power booster (DWDM & CWDM networks);

Transmission amplifier;

OADM gain block;

Access PON amplifier.

•

• PIN	DESIGNATIONS	PIN	DESIGNATIONS
  1	TEC（+）	14	TEC（-）
  2	Thermistor	13	Case Ground
  3	PD Anode	12	NC
  4	PD Cathode	11	SLD Cathode(-)
  5	Thermistor	10	SLD Anode(+)
  6	NC	9	NC
  7	NC	8	NC

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

A: Box optronics can provide the 1310nm or 1550nm wavelength version.

A: Box optronics can customize according to your requirements.

A: SM fiber or PM fiber.
