1550nm 25dB SOA Semiconductor Optical Amplifier

The 1550nm 25dB SOA semiconductor optical amplifier product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.

Send Inquiry

Product Description

The 1550nm 25dB SOA semiconductor optical amplifier product series, is primarily used for optical signal amplification and can significantly increase the output optical power. The products feature high gain, low power consumption, and polarization maintenance, among other characteristics, and are fully processable with domestically controllable technology.


Feature

● 40G and 100G C-Band blocking shutter or modulation;
● 14PIN Butterfly package;
● Low Noise Figure & Low polarization dependence;
● PM1550 fiber with FC/APC connector.
● Reliability: Telcordia GR-468. RoHS


Application

● Loss compensation for fiber optical connection and switch
● WDM fiber optical networks;
● MOPA(master oscilator power amplifier)laser;


Electro-Optical Characteristics(T=25℃)

Parameter Symbol Condition Min. Typ. Max. Unit
Operating wavelength lPEAK 25℃, PIN=0dBm - 1550 - nm
ASE centre wavelength lASE 25℃, IF=1000mA - 1490 - nm
-3dB Gain Bandwidth Δl PIN=-10dBm, IF=1000mA - 100 - nm
Saturation optical power PMAX IF=1000mA,
PIN=5dBm@1550nm
- 23 - dBm
Small signal gain SSG IF=1000mA,
PIN=-25dBm@1550nm
30 35 - dB
Operating current IF - - 1000 1200 mA
Forward voltage VF - - 2.4 2.6 V
Noise figure NF 25℃, If=1000mA, @1550nm - 6 8 dB
Shutdown extinction ration ER IF=1000mA/IF=0mA,
PIN=0dBm
- 35 - dB
TEC current lTEC - - - 1.8 A
TEC voltage VTEC - - 400 3.4 V
Thermistor resitance Rtherm T=25℃ 9.5 10 10.5
Thermistor current ltherm - -2 - 5 mA
Total power P - - - 4 w
Operating case temperature TOP I=IF -10 - 70
Storage temperature TS - -40 - 85

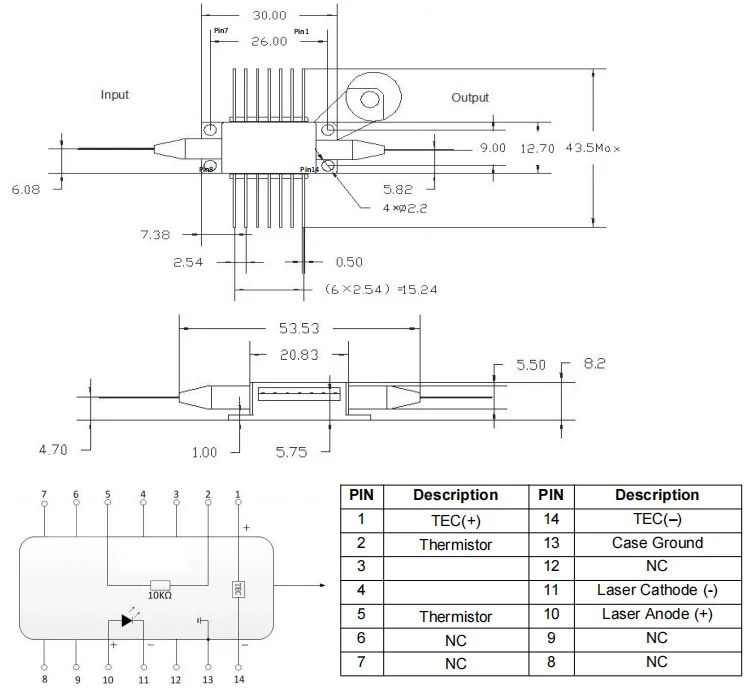

Package drawing&PIN-OUT Definition(Unit:mm):

1550nm 25db Soa Semiconductor Optical Amplifier

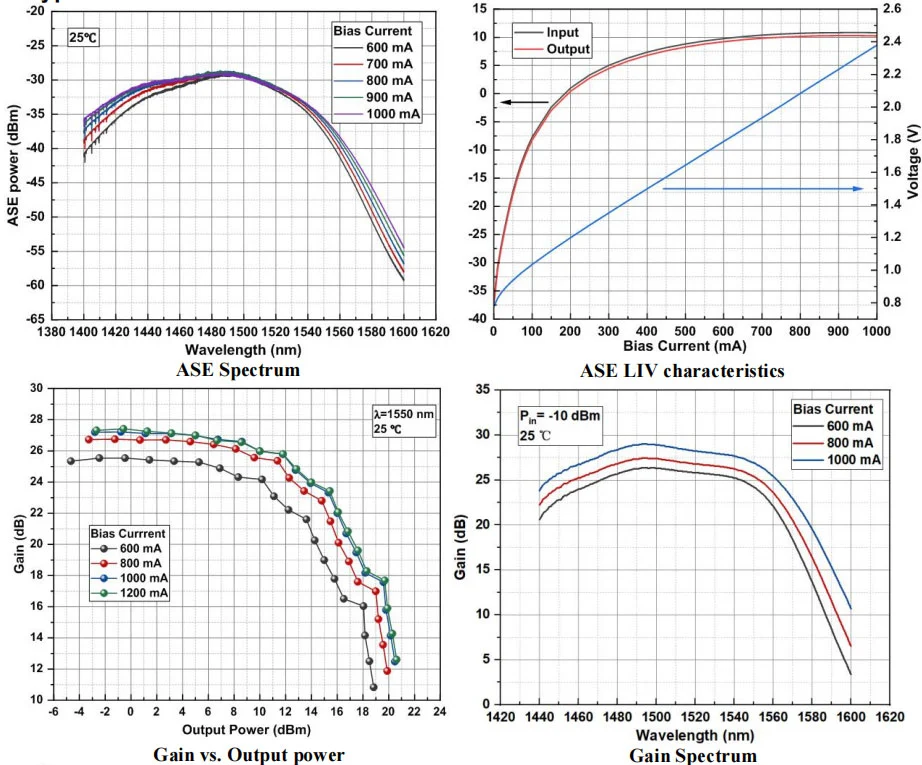

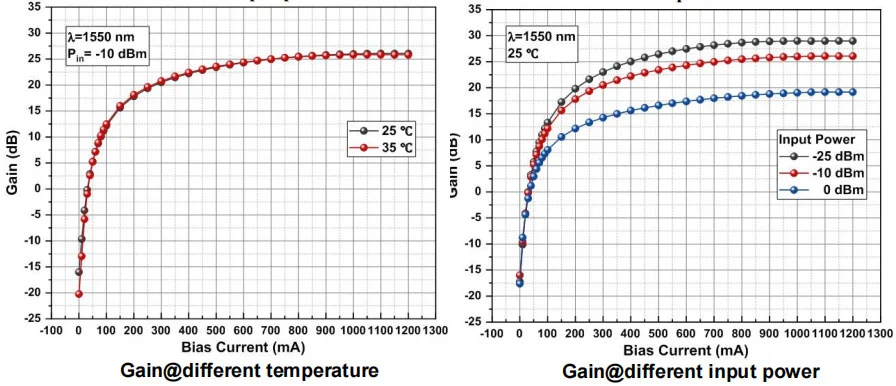

Typical Characteristic Curve

1550nm 25db Soa Semiconductor Optical Amplifier

1550nm 25db Soa Semiconductor Optical Amplifier


Deliver,Shipping And Serving

All products have been tested before shipping out;

All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.


1550nm 25db Soa Semiconductor Optical Amplifier


FAQ

Q: What is the wavelength you need?

A: We have 1550nm 1310nm 1270nm 1060nm SOA laser diode.


Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
