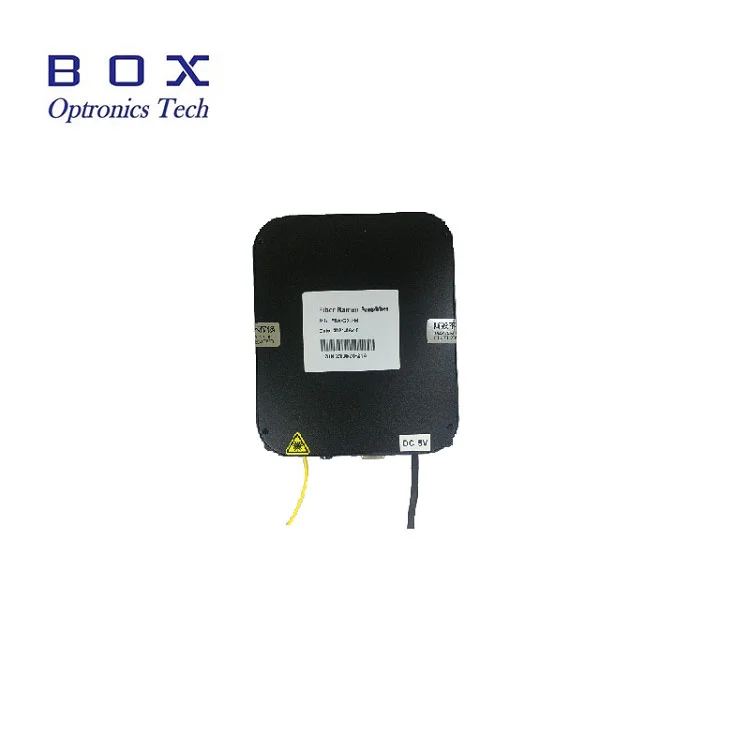

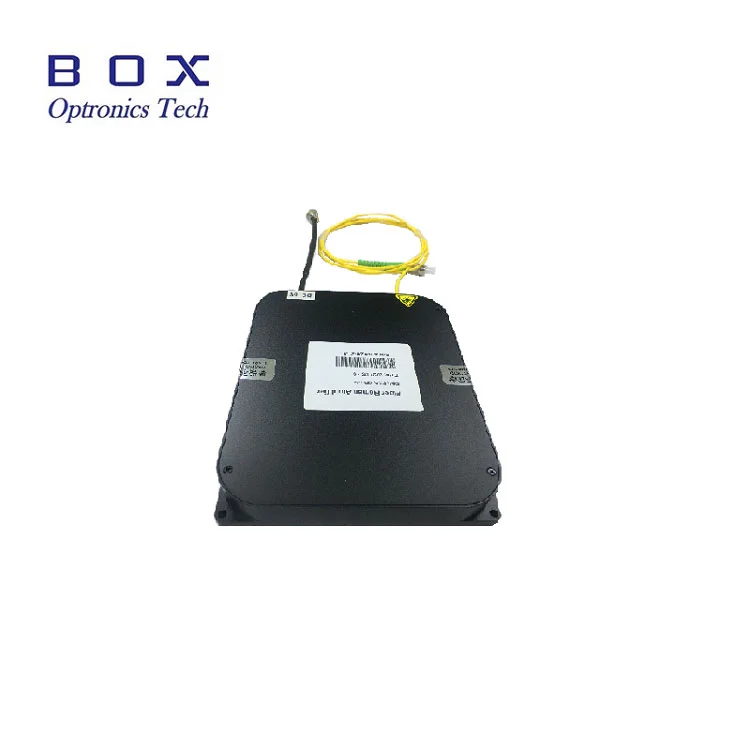

This laser utilizes a butterfly-shaped semiconductor laser chip. Professionally designed driver and temperature control circuits ensure safe operation, stable output power, and stable spectrum. It is suitable as a seed laser for high-power lasers and can also be used for production testing of optical devices. Available in benchtop or modular packages.
This laser utilizes a butterfly-shaped semiconductor laser chip. Professionally designed driver and temperature control circuits ensure safe operation, stable output power, and stable spectrum. It is suitable as a seed laser for high-power lasers and can also be used for production testing of optical devices. Available in benchtop or modular packages.
● High output power
● Power and spectrum stability
● Single mode or polarization maintaining output
● Seed laser source
● Optical testing
● Nonlinear optics research
| Parameter | Unit | Typical | Notes |
| Working wavelength | nm | 1120 | |
| Wavelength accuracy | nm | ±2 | |

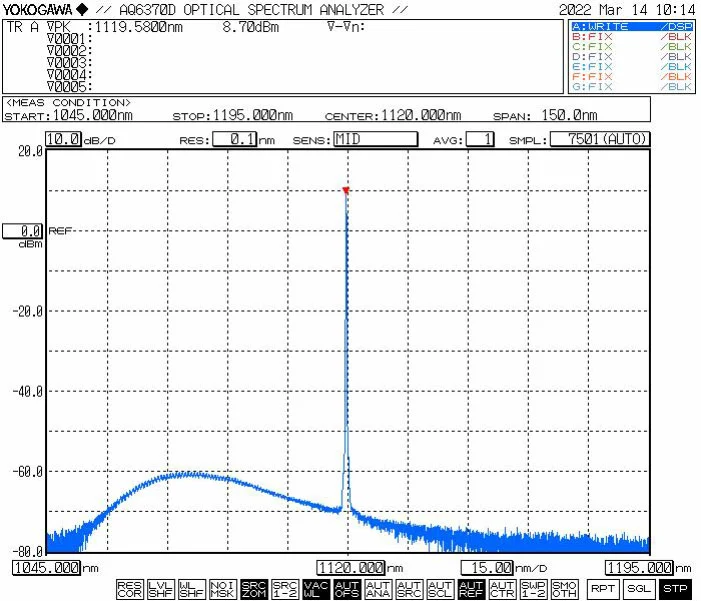

| Spectral width | nm | <0.1 | |
| Working Mode | - | CW | Continuous light |
| Output power | W | 5/ 10 | |
| Power adjustment range | - | 10~100% | Optional |
| Short-term stability (15 minutes) | dB | ≤ ±0.02 | Equivalent ≤±0.5% |
| Long-term stability (8 hours) | dB | ≤ ±0.05 | Equivalent ≤±1.2% |
| Polarization state | - | random | Linear polarization |
| Fiber type | - | Hi-1060 | PM980 |
| Connector type | - | FC/APC | FC/APC (slow axis alignment) |
| Parameter | Benchtop | Module | |
| Control method | Touch screen/RS232 | RS232 | |
| Communication interface | DB9 Female | DB9 Female | |
| Power supply | 100~240V AC, <30W | 12V DC, <60W | |
| Dimensions(mm) | 260(W)×320(D)×120(H) | 139(W)x235(D)x70(H) | |
| Operating Temperature | -5~+35°C | ||
| Operating humidity | 0~70% | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: How to control this module?
A: Touch screen/RS232
Q: I need other wavelengths you don't refer to.
A: Please check with us if it's customized.
