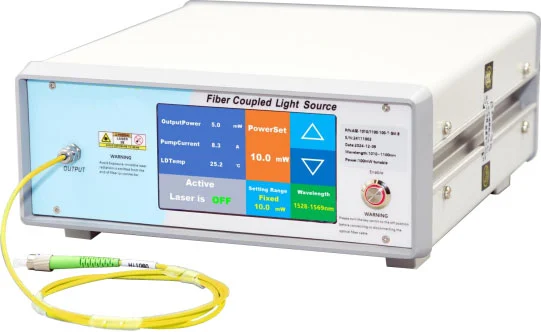

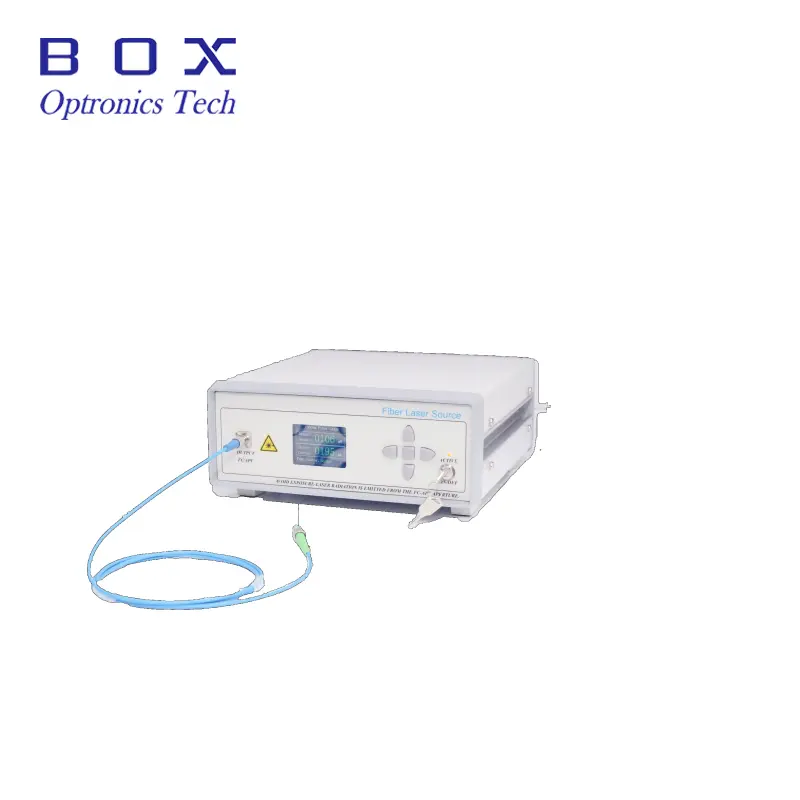

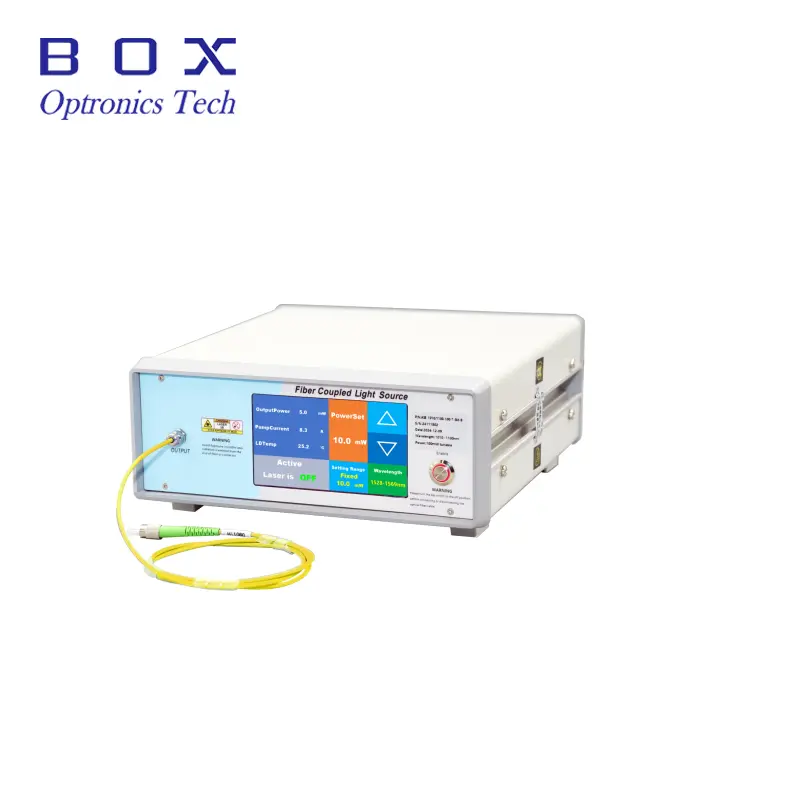

1064nm Ultra-Narrow Linewidth ≤ 3 kHz CW Fiber Laser for Acousticsensing utilizes a fiber DFB laser cavity structure to output single-longitudinal-mode, narrow-linewidth continuous-wave laser light in the 1064nm wavelength band. Its spectral linewidth is less than 20kHz, and its output spectral side-mode suppression ratio exceeds 60dB. Higher power versions are also available. Available in module or desktop packages, it is an ideal laser source for applications such as distributed sensing.
● Spectral linewidth ≤ 3 kHz
● All-fiber DFB resonator
● Wavelength-stable, no mode hopping
● LiDAR
● Acoustic sensing, hydrophones
● Fiber optic distributed sensing
| Parameter | Unit | Typical | Remark | |
| Central wavelength | nm | 1064±0.1 | ||
| Wavelength adjustment range | nm | ±0.1 | Slow temperature tuning | |
| Wavelength instability | MHz | ≤±25 | ||

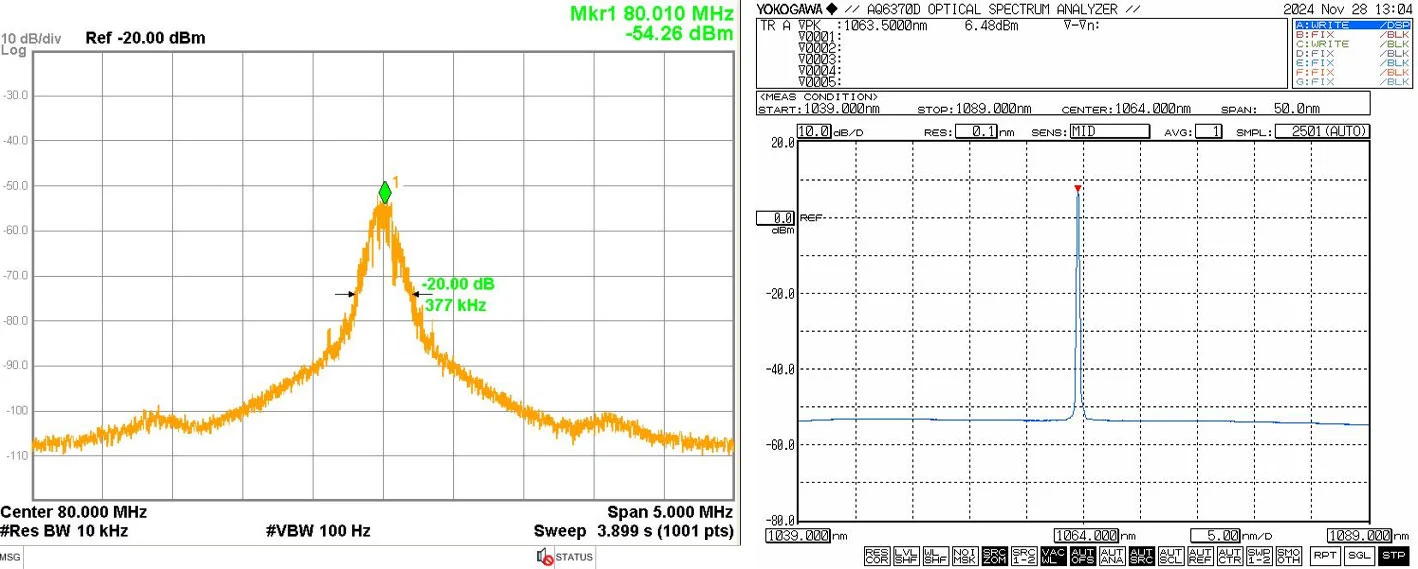

| Spectral linewidth@3dB | KHz | ≤20 | *3dB linewidth = 20dB beat frequency linewidth/20 | |
| Side Mode Suppression Ratio | dB | ≥60 | ||
| Working Mode | - | CW, single frequency and single longitudinal mode | CW | |
| Output power | mW | 50/100/200/500 | ||
| Polarization state | - | Random; linear polarization | ||
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% | |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% | |
| Fiber type | - | Hi 1060 | PM980 | |
| Pigtail Connector Type | - | FC/APC | ||
| Dimension | mm | 260(W)×280(D)×120(H) | Benchtop | |
| 125(W)×150(D)×31.5(H) | Module | |||
| Power supply | - | 100~240V AC, <30W | Benchtop | |
| 5V DC, <15W | Module | |||
| Control Mode | Touch screen/(RS232) | Benchtop | ||
| Communication Interface | - | DB9 Female(RS232) | ||
| Operating temperature | ℃ | -5~+35°C | ||
| Humidity temperature | ℃ | 0~ +70% | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 980nm 1030nm 064nm ASE broadband light source
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
