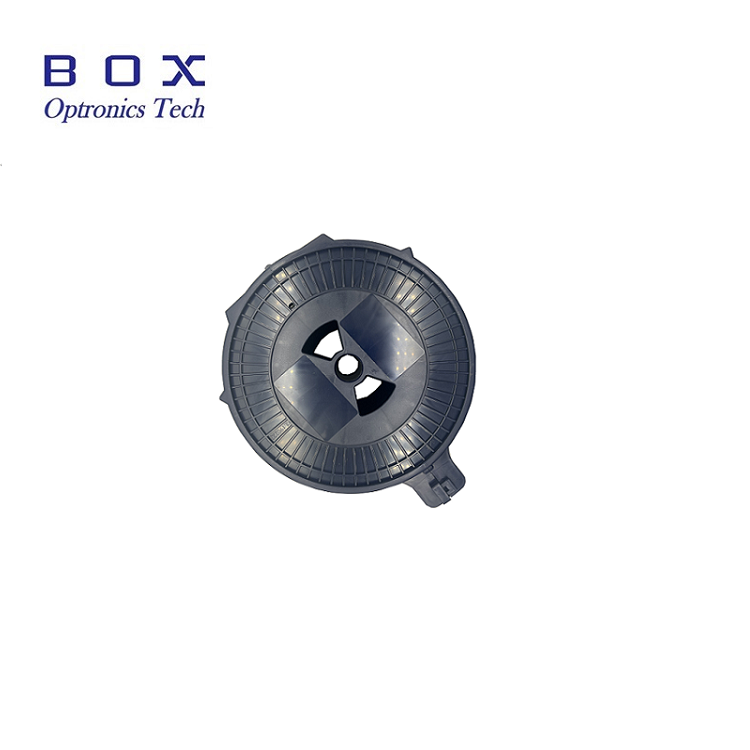

The Radiation resistant Erbium Ytterbium co-doped optical fiber has good radiation resistance and can effectively reduce the impact of high-energy ion radiation on Erbium-doped optical fiber. The optical fiber has good consistency and high conversion efficiency.
The Radiation resistant Erbium Ytterbium co-doped optical fiber has good radiation resistance and can effectively reduce the impact of high-energy ion radiation on Erbium-doped optical fiber. The optical fiber has good consistency and high conversion efficiency.
Radiation resistance (300-1000gy);
High consistency and stable performance;
A series of doping concentrations, suitable for fiber amplifiers with different requirements.
Single Channel/Multi-Channel Fiber Amplifier;
Fiber Lasers;
ASE source;
Low Earth Orbit Satellite Communications.
Part No: | EYDF-MM-10/125-RAD | EYDF-MM-10/125H-RAD | EYDF-SM-10/125-RAD | EYDF-SM-10/125H-RAD |
Operating wavelength | 1530-1625nm | 1530-1625nm | 1530-1625nm | 1530-1625nm |
Core Numerical Aperture | 0.22±0.02 | 0.22±0.02 | 0.12±0.02 | 0.12±0.02 |
Core absorption @1536nm | 50.0±15.0 dB/km | 85.0±25.0 dB/km | 50.0±15.0 dB/km | 85.0±25.0dB/km |
Cladding absorption @915nm | 3.0±0.5 dB/m | 3.0±0.5 dB/m | 3.0±0.5 dB/m | 3.0±0.5 dB/m |
Cladding absorption @976nm | 12.0±3.0 dB/m | 12.0±3.0 dB/m | 12.0±3.0 dB/m | 12.0±3.0 dB/m |
RIGV@1550nm | ≤0.03dB/krad | ≤0.03dB/krad | ≤0.03dB/krad | ≤0.03dB/krad |
Core diameter | 10.0±1.0um | 10.0±1.0um | 10.0±1.0um | 10.0±1.0um |
Inner cladding diameter | 125.0±3.0um | 125.0±3.0μm | 125.0±3.0μm | 125.0±3.0um |
Coating diameter | 245.0±10.0 um | 245.0±10.0 um | 245.0±10.0 um | 245.0±10.0 um |
Core pack concentricity | ≤1.0um | ≤1.0um | ≤1.0um | ≤1.0um |
Inner cladding shape | Octagon | Octagon | Octagon | Octagon |
Mechanical strength | ≥100kpsi(0.69GN/m2) | ≥100kpsi(0.69GN/m2) | ≥100kpsi(0.69GN/m2) | ≥100kpsi(0.69GN/m2) |
Outer cladding material | Low Refractive Index Resin | Low Refractive Index Resin | Low Refractive Index Resin | Low Refractive Index Resin |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band, L band, and C+L band wavelengths.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
