Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber

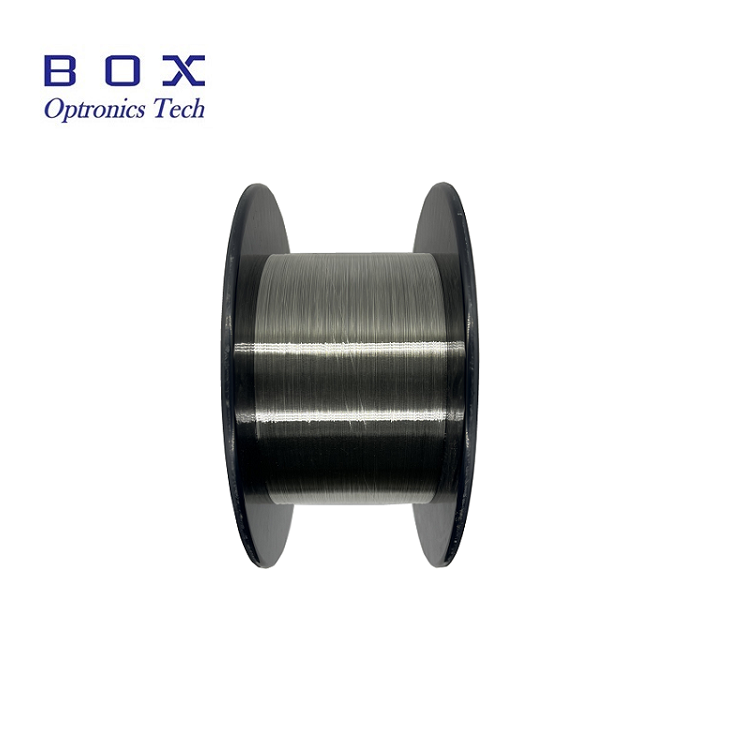

BoxOptronics Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber is mainly used in laser radar, laser ranging, communication amplification and other fields. The optical fiber uses low-refractive index fluorine-doped silica as the second cladding material, which not only has low splicing loss and high light-to-light conversion efficiency, but also has good high temperature resistance. The optical fiber can adjust the absorption coefficient and gain spectrum with good consistency.

Send Inquiry

Product Description

1. Introduction of Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber

BoxOptronics Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber is mainly used in laser radar, laser ranging, communication amplification and other fields. The optical fiber uses low-refractive index fluorine-doped silica as the second cladding material, which not only has low splicing loss and high light-to-light conversion efficiency, but also has good high temperature resistance. The optical fiber can adjust the absorption coefficient and gain spectrum with good consistency.

2. Feature of Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber

Series concentration doping, suitable for fiber amplifiers with different requirements;

High consistency and stable performance.

3. Application of Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber

Fiber optic amplifier;

Lidar;

Fiber laser.

4. Typical Specifications of Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber

Part No.: BEYTF-SM-10/125
Operating wavelength 1530-1625nm
Core Numerical Aperture 0.12±0.02
Inner cladding numerical aperture 0.22±0.02
Cladding numerical aperture ≥0.46
Cladding attenuation@1095nm <30dB/km
Core absorption@1535nm 50.0±15.0 dB/m
Cladding absorption@915nm 3.0±0.5 dB/m
Core diameter 10.0±1.0μm
Inner cladding diameter (side-side) 105.0±3.0μm
Inner cladding shape Octagon
Cladding diameter 125.0±3.0μm
Coating diameter 245.0±15.0μm
Mechanical strength ≥100kpsi(0.69GN/m2)
Inner coating material Low Refractive Index Coating

5. Deliver,Shipping And Serving of Erbium-ytterbium Co-doped Triple-clad Single-mode Fiber

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band, L band, and C+L band wavelengths.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
