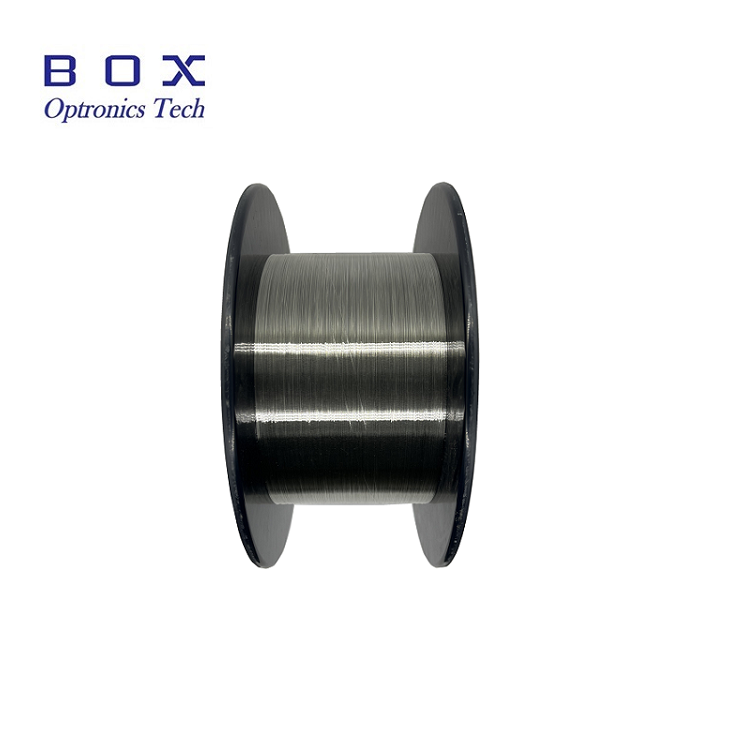

High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber

BoxOptronics High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber has a unique core low NA design, which can achieve high beam quality output without reducing the pump conversion efficiency. The high cladding NA ensures high pump coupling efficiency, and the large core diameter design ensures a large mode field area and a short fiber length, thereby greatly reducing the threshold of nonlinear effects. The fiber has good consistency, better suppression of 1um parasitic ASE, high light-to-light conversion efficiency, and good stability under high-power operation.

Send Inquiry

Product Description

1. Introduction of High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber

BoxOptronics High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber has a unique core low NA design, which can achieve high beam quality output without reducing the pump conversion efficiency. The high cladding NA ensures high pump coupling efficiency, and the large core diameter design ensures a large mode field area and a short fiber length, thereby greatly reducing the threshold of nonlinear effects. The fiber has good consistency, better suppression of 1um parasitic ASE, high light-to-light conversion efficiency, and good stability under high-power operation.

2. Feature of High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber

Series concentration doping, suitable for fiber amplifiers with different requirements;

High consistency and stable performance.

3. Application of High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber

High pulse energy 1.5um fiber laser;

Fiber laser.

4. Typical Specifications of High Absorption Large Mode Field Erbium-ytterbium Co-doped Fiber

Part No.: BEYDF-LMA-25/300H
Operating wavelength 1530-1625nm
Core Numerical Aperture 0.09±0.01
Cladding numerical aperture ≥0.46
Cladding absorption@915nm 3.0±0.5 dB/m
Core absorption@1535nm 150.0±30.0 dB/m
Core diameter 25.0±2.0μm
Inner cladding diameter 300.0±8.0μm
Coating diameter 450.0±15.0μm
Core package concentricity ≤2.0μm
Inner cladding shape Octagon
Mechanical strength ≥100kpsi(0.69GN/m2)
Outer cladding material Low Refractive Index Resin

5. Deliver,Shipping And Serving of Erbium-ytterbium co-doped triple-clad single-mode fiber

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band, L band, and C+L band wavelengths.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
