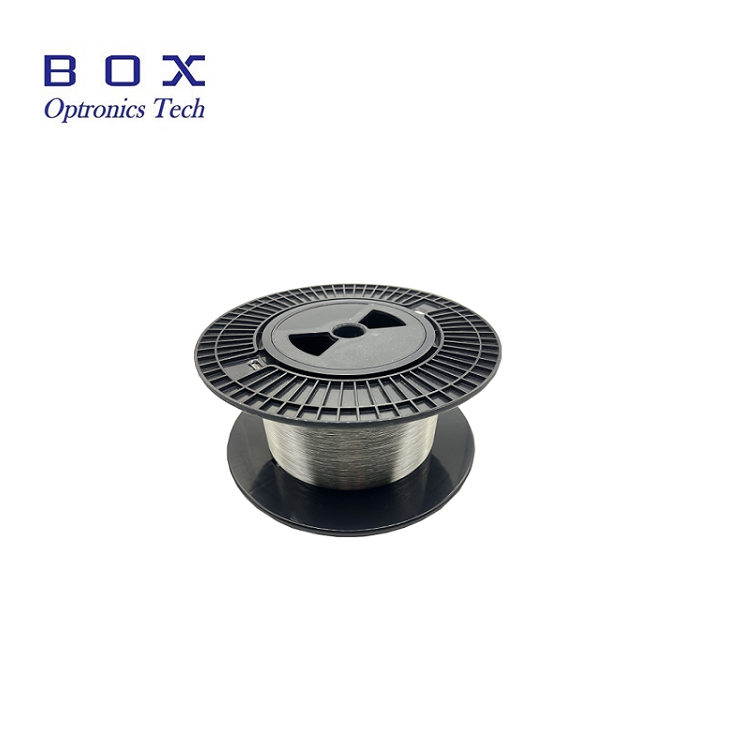

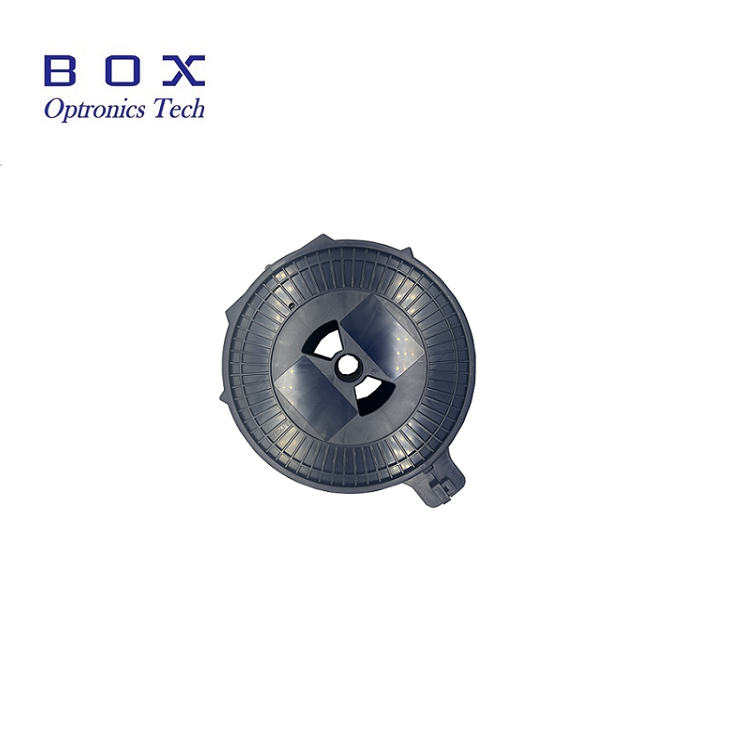

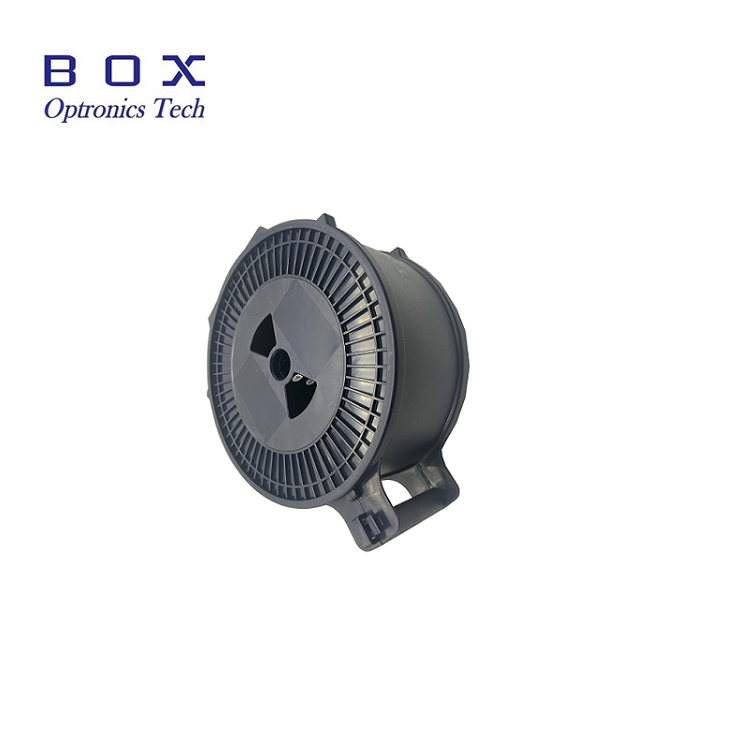

The pulse series double clad ytterbium-doped optical fiber is designed for medium and low power pulse laser seed source and pre-amplifier. This series of optical fibers has the characteristics of near single-mode transmission, low bending loss, low photon darkening and high slope efficiency. It can be used in 10-500W pulse fiber lasers and applied in medical and industrial material processing.
BoxOptronics pulse series double-clad ytterbium-doped optical fiber is designed for medium and low power pulse laser seed source and pre-amplifier. This series of optical fibers has the characteristics of near single-mode transmission, low bending loss, low photon darkening and high slope efficiency. It can be used in 10-500W pulse fiber lasers and applied in medical and industrial material processing.
Low photon darkening effect, stable and reliable operation;
A series of doping concentrations, suitable for fiber lasers with different application requirements.
Pulsed fiber laser;
Material Processing;
Nonlinear Optics/Frequency Doubling.
| Part No: | BYDF-10/130 | BYDF-20/130 | BYDF-23/130 | BYDF-25/250 | BYDF-30/250 |
| Operating wavelength | 1030-1100nm | 1030-1100nm | 1030-1100nm | 1030-1100nm | 1030-1100nm |
| Fiber Core Numerical Aperture | 0.085±0.005 | 0.075±0.005 | 0.070±0.005 | 0.065±0.005 | 0.060±0.005 |
| Cladding numerical aperture | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 |
| Cladding absorption @915nm | 1.3±0.2dB/m | 3.5±0.5 dB/m | 4.2±0.4 dB/m | 2.3±0.3dB/m | 2.4±0.3B/m |
| Core attenuation@1200nm | ≤15.0dB/km | ≤15.0dB/km | ≤15.0dB/km | ≤15.0dB/km | ≤15.0dB/km |
| Cladding attenuation@1095nm | ≤15.0dB/km | ≤15.0dB/km | ≤15.0dB/km | ≤15.0dB/km | ≤15.0dB/km |
| Core diameter | 10.0±1.0 um | 20.0±1.0 um | 23.0±1.0 um | 25.0±2.0 um | 30.0±2.0 um |
| Cladding diameter (side-to-side) | 130.0±3.0um | 130.0±3.0um | 130.0±3.0um | 250.0±5.0um | 250.0±5.0um |
| Cladding shape | Octagon | Octagon | Octagon | Octagon | Octagon |
| Coating diameter | 245.0±15.0μm | 245.0±15.0μm | 245.0±15.0μm | 395.0±15.0um | 395.0±15.0um |
| Mechanical strength | ≥100kpsi | ≥100kpsi | ≥100kpsi | ≥100kpsi | ≥100kpsi |
| Outer cladding material | Low Refractive Index Resin | Low Refractive Index Resin | Low Refractive Index Resin | Low Refractive Index Resin | Low Refractive Index Resin |
| Matrix material | quartz | quartz | quartz | quartz | quartz |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band, L band, and C+L band wavelengths.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
