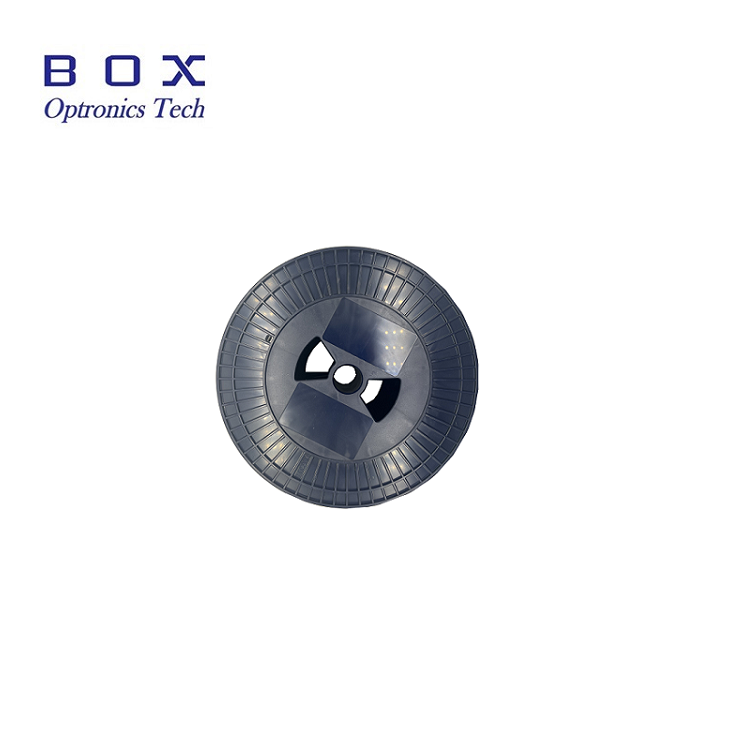

The 1um double-clad passive matching fiber is designed for 1μm pulse or continuous fiber lasers and amplifiers. It has the characteristics of high matching, low fusion loss, high consistency and stability, ensuring the high performance application of ytterbium-doped fiber in the system.
Boxoptronics 1um double-clad passive matching fiber is designed for 1μm pulse or continuous fiber lasers and amplifiers. It has the characteristics of high matching, low fusion loss, high consistency and stability, ensuring the high performance application of ytterbium-doped fiber in the system.
Better fiber reliability;
Low splice attenuation, good mode control;
High Power (1μm) Fiber Lasers and Amplifiers;
Material processing, frequency doubling.
| Part No.: | BGDF-10/130 | BGDF-30/250 | BGDF-14/250 | BGDF-20/400 | BGDF-30/600 |
| Operating wavelength | 850-1115nm | 850-1115nm | 850-1115nm | 850-1115nm | 850-1115nm |
| Core Numerical Aperture | 0.075±0.005 | 0.062±0.005 | 0.070±0.005 | 0.065±0.005 | 0.065±0.005 |
| Cladding numerical aperture | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 | ≥0.46 |
| Core attenuation@1200nm | ≤20.0 dB/km | ≤20.0 dB/km | ≤15.0 dB/km | ≤15.0 dB/km | ≤20.0 dB/km |
| Cladding attenuation@1095nm | ≤15.0 dB/km | ≤15.0 dB/km | ≤15.0 dB/km | ≤15.0 dB/km | ≤20.0 dB/km |
| Core diameter | 11.0±1.0 um | 30.0±2.0 um | 14.0±1.0 um | 20.0±1.5 um | 30.0±3.0 um |
| Cladding diameter (side-to-side) | 130.0±5.0 um | 250.0±5.0 um | 250.0±10.0 um | 400.0±10.0 um | 600.0±5.0 um |
| Core concentricity | ≤1.0um | ≤1.0um | ≤1.0um | ≤1.5um | ≤2.0um |
| Coating diameter | 245.0±10.0 um | 395.0±15.0 um | 395.0±15.0 um | 550.0±15.0 um | 750.0±20.0 um |
| Outer cladding material | Low refractive index coating | Low refractive index coating | Low refractive index coating | Low refractive index coating | Low refractive index coating |
| Matrix material | quartz | quartz | quartz | quartz | quartz |
| Mechanical strength | ≥100kpsi | ≥100kpsi | ≥100kpsi | ≥100kpsi | ≥100kpsi |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: C-band and L band wavelengths.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
