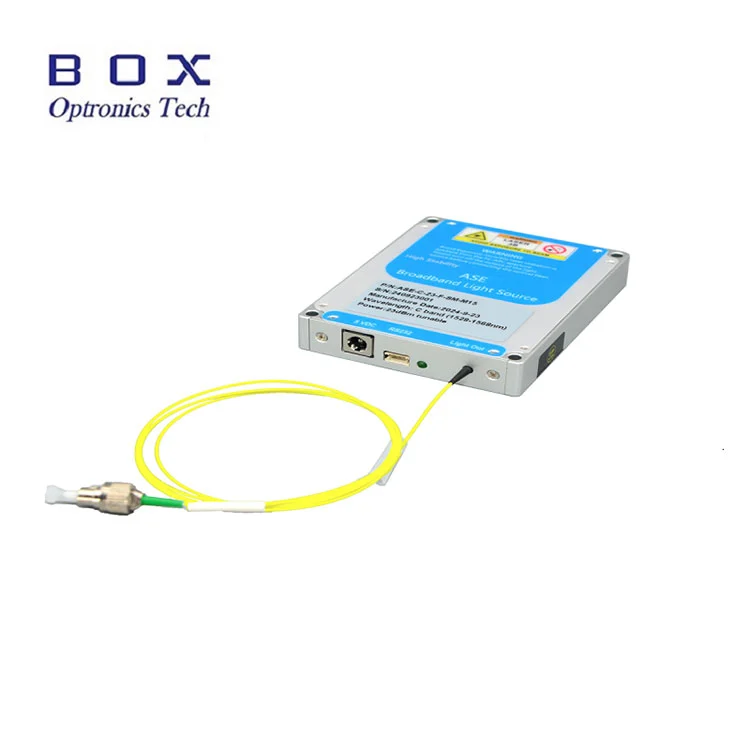

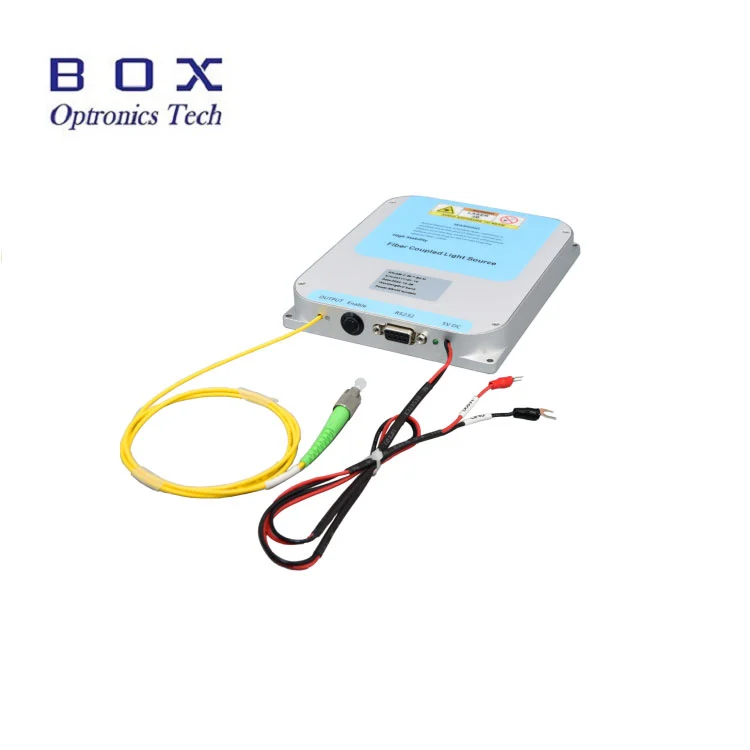

The 1030nm ASE broadband light source is based on ytterbium-doped fiber and semiconductor pump laser. The spectrum covers 1030nm wavelength, with high output power and polarization extinction ratio as low as 0.2dB. It can be used for fiber device testing, FBG grating production, etc.
● Spectral flatness;
● Power adjustable;
● High stable output power.
● Fiber Optic Sensing;
● Medical Imaging;
● Fiber Optic Device Testing.
| Parameter | Unit | Typical | Remark |
| Central wavelength | nm | 1030±2 | |

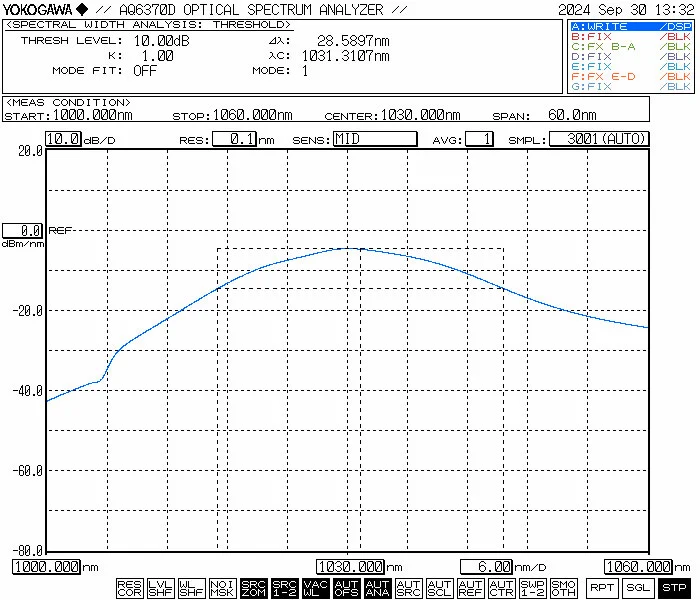

| Spectral range | nm | 1018~1044nm | @10dB |
| Operating mode | - | CW | |
| Output power | mW | 10/20/30/50/100 | |
| Power adjustment range | - | 10%~100% | Optional |
| Output isolation | dB | >35 | |
| Power instability (Short-term 15mins) | dB | ≤ ±0.02 | Equivalence ≤ ±0.5% |
| Power instability (Long-term 8hours) | dB | ≤ ±0.05 | Equivalence ≤ ±1.2% |
| Polarization extinction ratio(PER) | dB | ≤ 0.2 | SM fiber |
| dB | ≥23 | PM fiber | |
| Fiber type | - | Hi1060 | SM fiber |
| - | PM980 | PM fiber | |
| Pigtail Connector Type | - | FC/APC | Customizable |
| Dimension | mm | 255(W)×285(D)×115(H) | Benchtop |
| 125(W)×150(D)×20(H) | Module | ||
| Power supply | V | 100~240V AC, <30W | Benchtop |
| 5V DC, <15W | Module | ||
| Communication Interface | - | DB9 Female(RS232) | |
| Operating temperature&humidity | -5 ~ +35℃, 0~70% |
All products have been tested before shipping out;
All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
Q: What is the wavelength you need?
A: We have 1030nm, 1064nm C-band L band ASE source.
Q: What is the requirement for the output power?
A: Box optronics can customize according to your requirements.
