1030nm 200mW 100KHz DFB Narrow Linewidth Butterfly Laser Diode

The 1030nm 200mW 100KHz DFB Narrow Linewidth Butterfly Laser Diode adopts a 14 PIN diode structure, and can work stably in continuous wave(CW) mode. It’s a high-performance laser device, with a 200mW high output power and narrow linewidth below 100kHz. It’s suitable for use as a seed source for lasers, spectroscopy, and optical sensing.

Features

200mW High output power;

Below 100kHz narrow linewidth;

PM fiber Beyond 18dB High PER;

14PIN Butterfly package;

Internal thermoelectric heatpump and monitor photodiode;

Field-proven high reliability.

Reliability: Telcordia GR-468. RoHS

Applications

Seed source for lasers;

Spectroscopy;

Optical sensing.

Electro-Optical Characteristics(T=25℃)

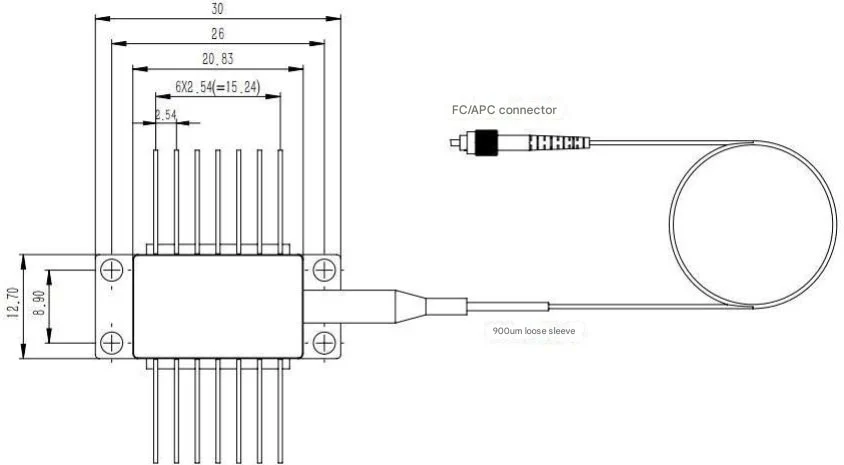

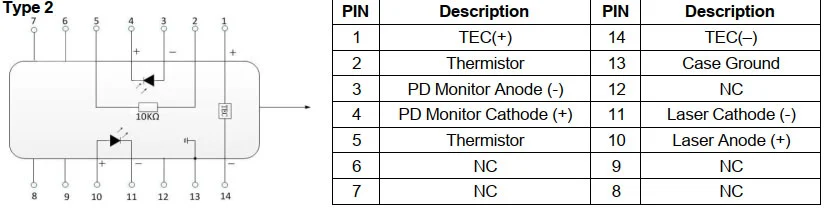

Package drawing&PIN-OUT Definition(Unit:mm)

Deliver,Shipping And Serving

1030nm 200mW 100KHz DFB Narrow Linewidth Butterfly Laser Diode have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

FAQ

Q: What’s the accuracy of the wavelength?

A: +/-2nm.

Q: Do you have any other narrow linewidth laser diode?

A: Yes. In addition to the 1030nm 200mW 100KHz DFB Narrow Linewidth Butterfly Laser Diode, we also have other models. Please contact us for more details.
