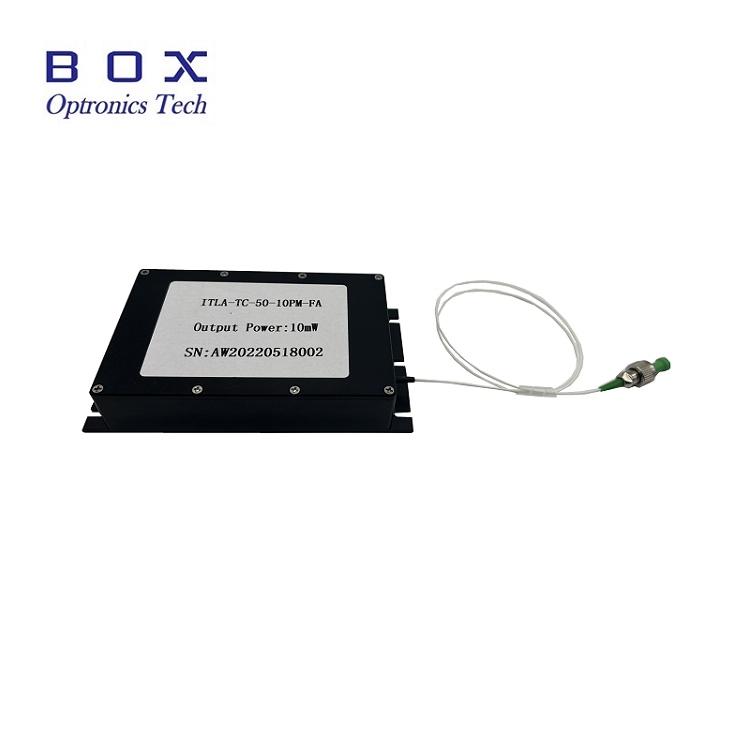

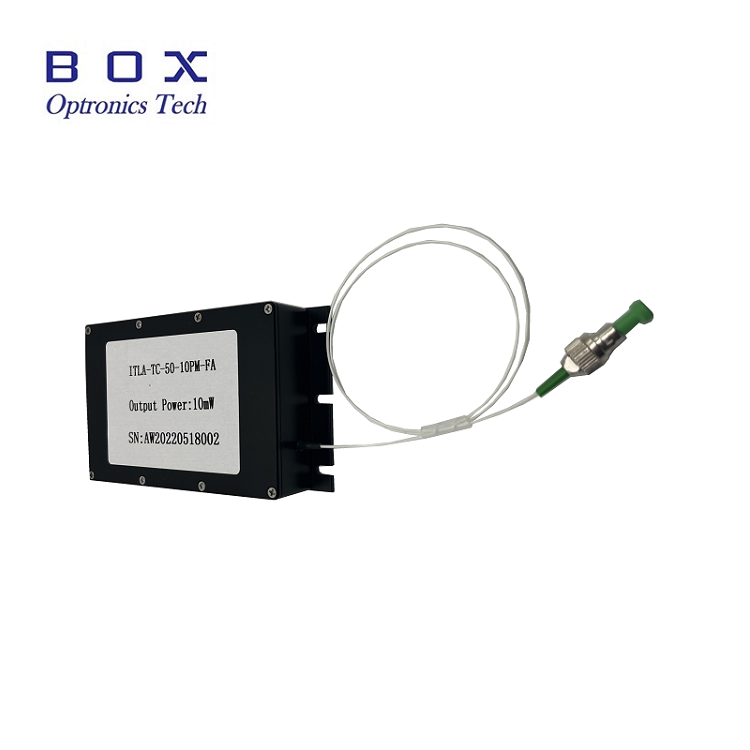

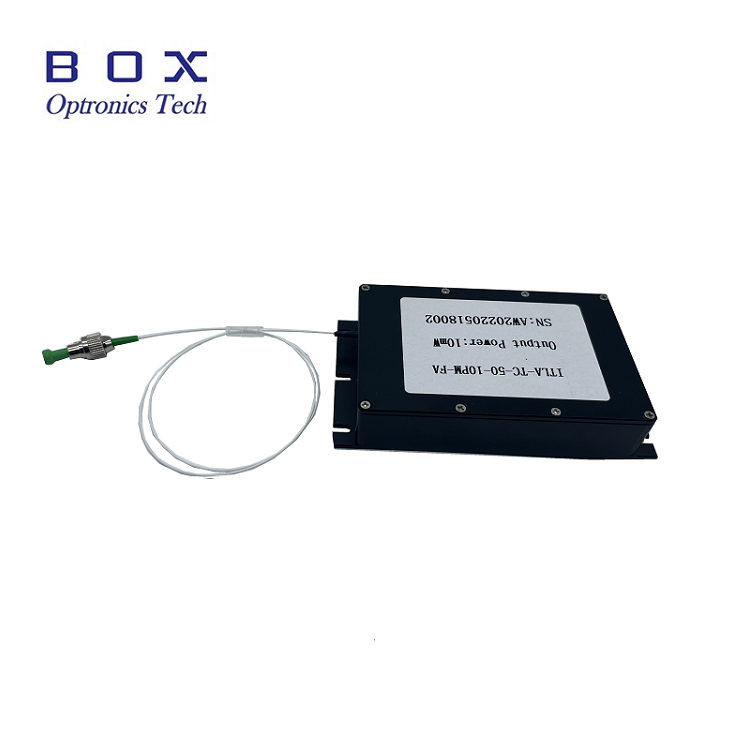

C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA

The C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA has excellent optical performance in terms of high output power stability, high side-mode-suppression ratio (SMSR), ultra-narrow laser linewidth, low relative intensity noise (RIN), and high wavelength control accuracy. These high specifications make the ITLA very suitable for applications of advanced optical communication systems, test and measurement, fiberoptic sensing networks, especially on 40Gbps and 100 Gbps high data rate with advanced modulation scheme optic systems.

Send Inquiry

Product Description

1. Introduction of C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA

The C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA has excellent optical performance in terms of high output power stability, high side-mode-suppression ratio (SMSR), ultra-narrow laser linewidth, low relative intensity noise (RIN), and high wavelength control accuracy. These high specifications make the ITLA very suitable for applications of advanced optical communication systems, test and measurement, fiberoptic sensing networks, especially on 40Gbps and 100 Gbps high data rate with advanced modulation scheme optic systems.

2. Feature of C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA

Narrow linewidth laser output(<50KHz);

PM fiber

Low Relative Intensity Noise (RIN);

High Side-Mode Suppression Ratio (SMSR);

Low power consumption;

Excellent lasing frequency accuracy;

Standard ITU grid wavelength tuning;

Support ITLA module controlling and monitoring functionalities.


3. Application of C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA

Optical sensor;

DWDM fiber optic networks;

Device testing.

4. Optical-Electrical Characteristic of C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA

Parameters Symbol Condition Min. Typ. Max. Unit
Wavelength tunable range λC TL=15~35℃,CW 1529.16~1567.13 (C-band available) nm
Peak optical output power PO - 10 - - dBm
Operating voltage V - - 5 - V
Spectral linewidth LW FWHM - - 50 KHz
Channel spacing - - 50 GHz
Number of Channels - - 89 - - CH
Side-mode suppression ratio SMSR CW 40 50 - dB
Optical isolation - -20 < TC < +70℃ 35 - - dB
Relative intensity noise RIN CW, 20mW - - -140 dB/Hz
Polarization extinction ratio PER - 20 - - dB
Voltage supply VCC - 4.75 5 5.25 V
Power short-term stability PSS Operating case temperature: -20~70℃ ≤0.01 dB®15 min.
Power long-term stability PSL ≤0.03 dB®8h.
Wavelength short-term stability λSS ≤5 pm®15 min.
Wavelength long-term stability λSL ≤10 pm®8h
Power consumption P @25℃ ≤6 W
Max Power consumption Pmax @-20~+70℃ ≤10 W
Dimension L×W×H - 116×63×21.5 mm
Storage temperature TS - -40 - +85
Operating case temperature TOP - -20 - +70

6. Deliver,Shipping And Serving of C-band Narrow Linewidth Integrated Tunable Laser Assembly ITLA

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

7. FAQ

Q: What is the wavelength would you like?

A: We have 1550nm and 1560nm option.

Q: What is the requirement for the output power?

A: We have 10mW and 20mW options, We can also customize according to your requirement.

Q: About the package dimension, do you have any requirement?

A: We have the module type for choice.
