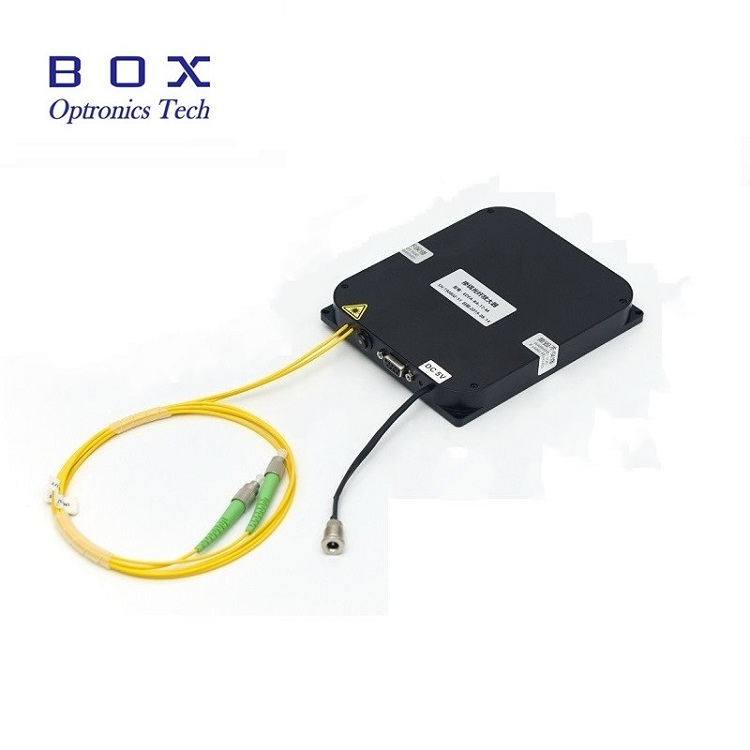

Erbium-doped fiber amplifier

An EDFA is a fiber amplifier based on the erbium-doped fiber principle. It boasts advantages such as a wide wavelength range, high amplification gain, low noise, and high reliability. It is widely used in optical communication systems.

EDFA Components

The EDFA consists of an erbium-doped fiber, a pump light source, an optical splitter, and a coupler. The erbium-doped fiber is the core of the EDFA. It is an optical fiber doped with an element and amplifies the optical signal through the excitation of the pump light source. The pump light source is the energy source of the EDFA and is typically a 980nm or 1480nm semiconductor laser. The optical splitter separates the pump light and signal light, allowing them to propagate separately within the erbium-doped fiber. The coupler couples the pump light and signal light into the erbium-doped fiber.

EDFA Operating Principle

When pump light passes through an erbium-doped fiber, the electrons in the erbium element are excited to a high energy level, placing the erbium element in an excited state. When signal light passes through erbium-doped fiber, the excited erbium element emits photons toward the signal light, a phenomenon known as stimulated emission. This increases the energy of the signal light, thereby amplifying the signal light. Specifically, when pump photons and signal photons meet in the erbium-doped fiber, they exchange energy, transferring the energy of the pump photons to the signal photons. The erbium element in erbium-doped fiber has a unique energy level structure that effectively transfers the energy of the pump photons to the signal photons, thereby amplifying the signal light. Furthermore, in erbium-doped fiber, the erbium element's electrons remain in the excited state for a very short time, only on the order of nanoseconds, making the amplification process extremely rapid.

Advantages of EDFA

Compared to other fiber amplifiers, EDFA offer the following advantages: 1. Wide wavelength range: EDFA cover the C-band and B-band wavelengths, making them suitable for various optical communication systems. 2. High amplification gain: EDFA can achieve amplification gain exceeding 30dB, with high gain uniformity. 3. Low noise: EDFA have a low noise figure, enabling long-distance fiber transmission. 4. High reliability: EDFA offer high reliability and a long lifespan, meeting the requirements of optical communication systems.
