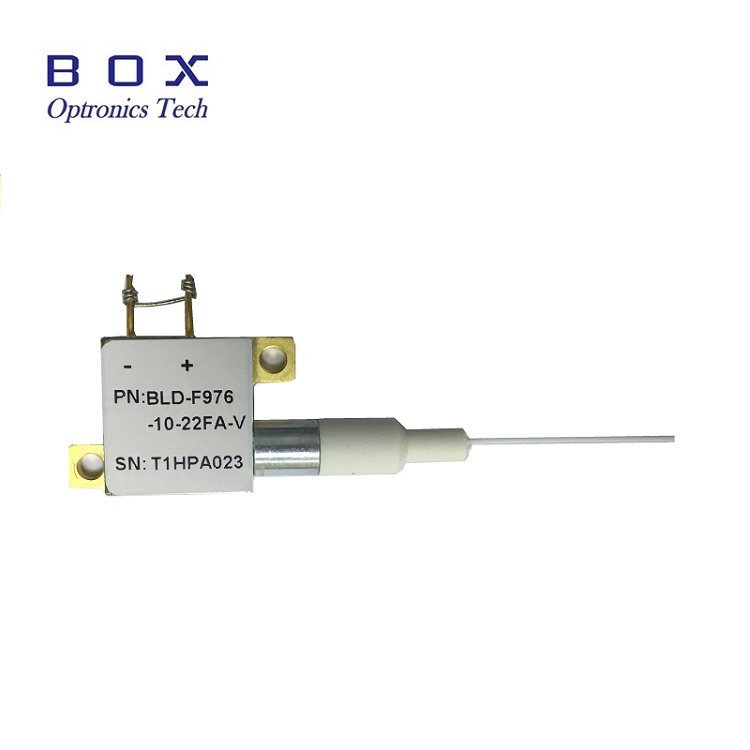

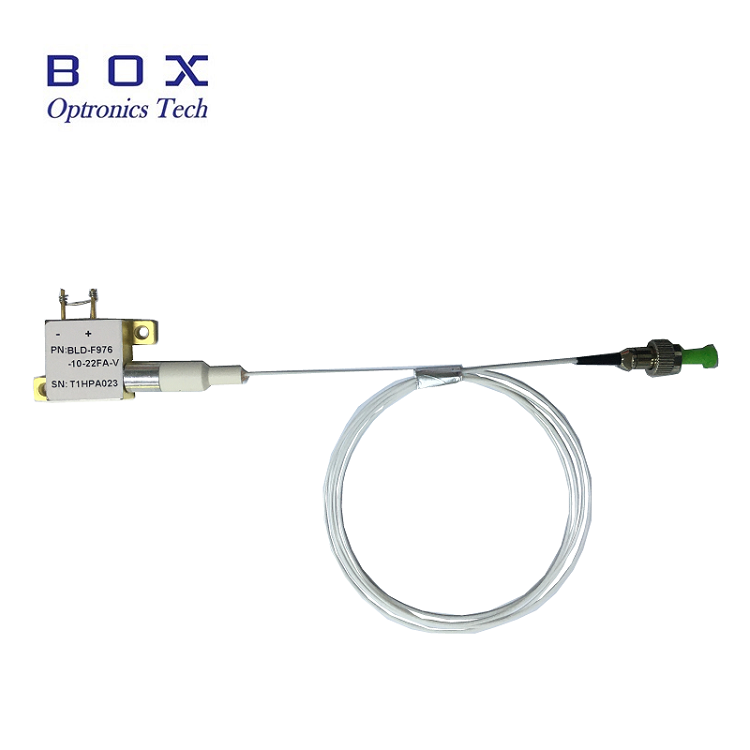

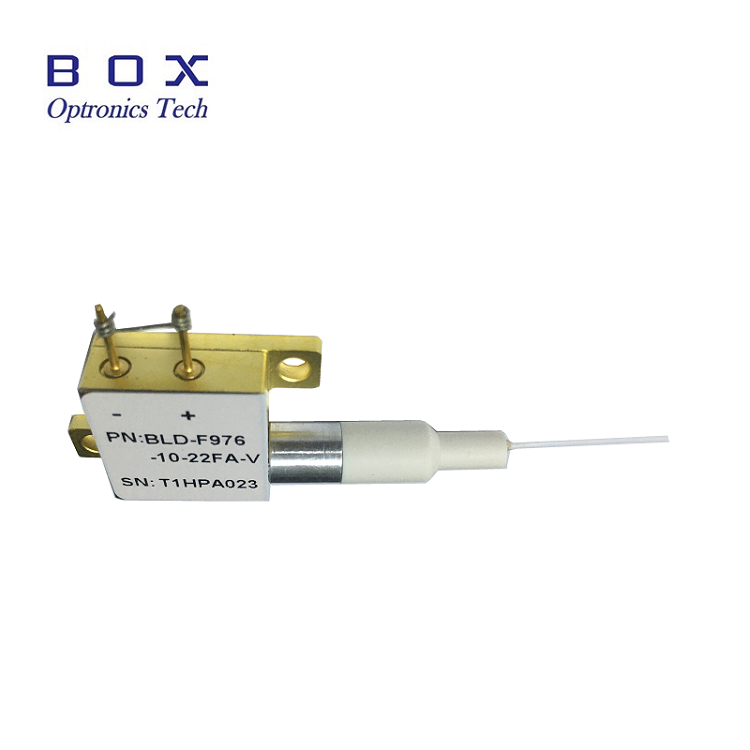

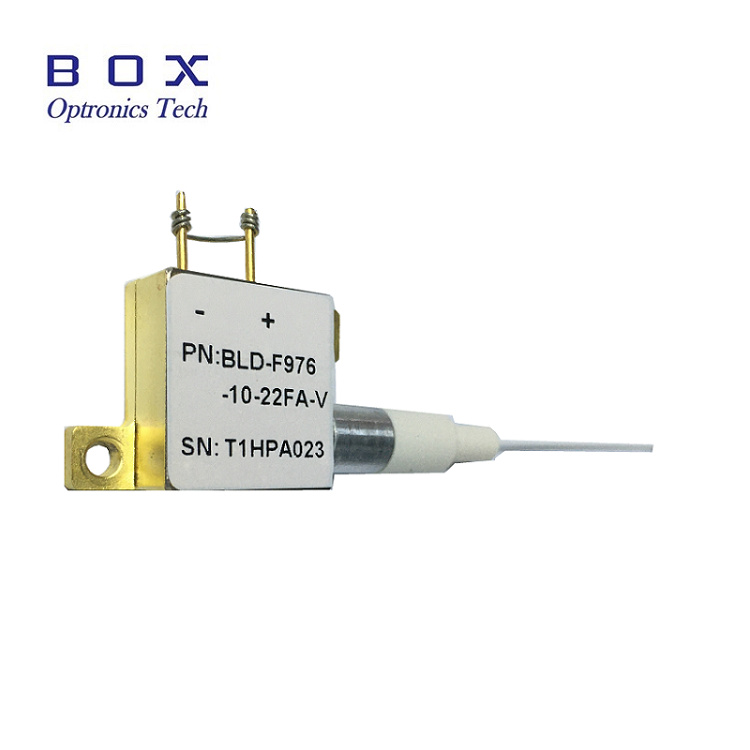

The 976nm 9W VBG Stabilized Wavelength Diode Laser is the latest solution in our L4 platform for the fiber laser pumping market. The laser diode design, which leverages the L4 footprint, offers a high degree of feedback protection from any fiber laser wavelength. The 976nm 9W VBG Stabilized Wavelength Diode Laser integrates VBG to stabilize the wavelength. The 976nm 9W VBG Stabilized Wavelength Diode Laser offer 9W of power from a 105 µm fiber.
The 976nm 9W VBG Stabilized Wavelength Diode Laser is the latest solution in our L4 platform for the fiber laser pumping market. The laser diode design, which leverages the L4 footprint, offers a high degree of feedback protection from any fiber laser wavelength. The 976nm 9W VBG Stabilized Wavelength Diode Laser integrates VBG to stabilize the wavelength. The 976nm 9W VBG Stabilized Wavelength Diode Laser offer 9W of power from a 105 µm fiber.
The 976nm 9W VBG Stabilized Wavelength Diode Laser is the latest solution in our L4 platform for the fiber laser pumping market. The laser diode design, which leverages the L4 footprint, offers a high degree of feedback protection from any fiber laser wavelength. The 976nm 9W VBG Stabilized Wavelength Diode Laser integrates VBG to stabilize the wavelength. The 976nm 9W VBG Stabilized Wavelength Diode Laser offer 9W of power from a 105 µm fiber.
Based on single fire spot laser module;
High output power 9W;
High stability;
0.22NA 105μmcore multimode fiber;
Parallel weld 2-Pin sealed package;
Standard central wavelength 976nm.
Medical care;
Pump source;
Material processing.
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Operating output power | Pout | 9 | - | - | W |
| Range of available wavelength | λ | 975.5 | 976 | 976.5 | nm |
| Spectral width @ FWHM | Δλ | - | 0.8 | 2.0 | nm |
| Threshold current | Ith | - | 0.7 | 1.0 | A |
| Operating current at Pout | IOP | - | 12.0 | 14.0 | A |
| Operating voltage at Pout | VOP | - | 1.75 | 2.0 | V |
| Power conversion efficiency | - | - | 45 | - | % |
| Wavelength temperature coefficient | Δλ/ΔT | - | 0.01 | - | nm/℃ |
| Slope efficiency | η | - | 0.85 | - | W/A |
| Fiber bend radius | r | 37.5 | - | - | mm |
| Fiber core diameter | DCOR | - | 105/125 | - | µm/µm |
| Fiber buffer diameter | DBUF | - | 250 | - | µm |
| Fiber numerical aperture | NA | - | 0.22 | - | - |
| Beam numerical aperture(95% power) | Lf | - | 0.16 | - | NA |
| Fiber length | Lf | - | 1.5 | - | m |
| Connector type | - | Null, FC/PC, SMA905 | - | ||
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 793nm 808nm 915nm 975nm laser diode.
Q: What is the requirement for the output power?A: Box optronics can customize according to your requirements.
